Neural Probes · A-Series

Edge Single-Shank 64-Channel Probe, 6 mm

64Sites
1Shanks
6mmShank Length
50µmSite Pitch
Part no.A1x64-Edge-6mm-50-177
Contact us to order
Contents

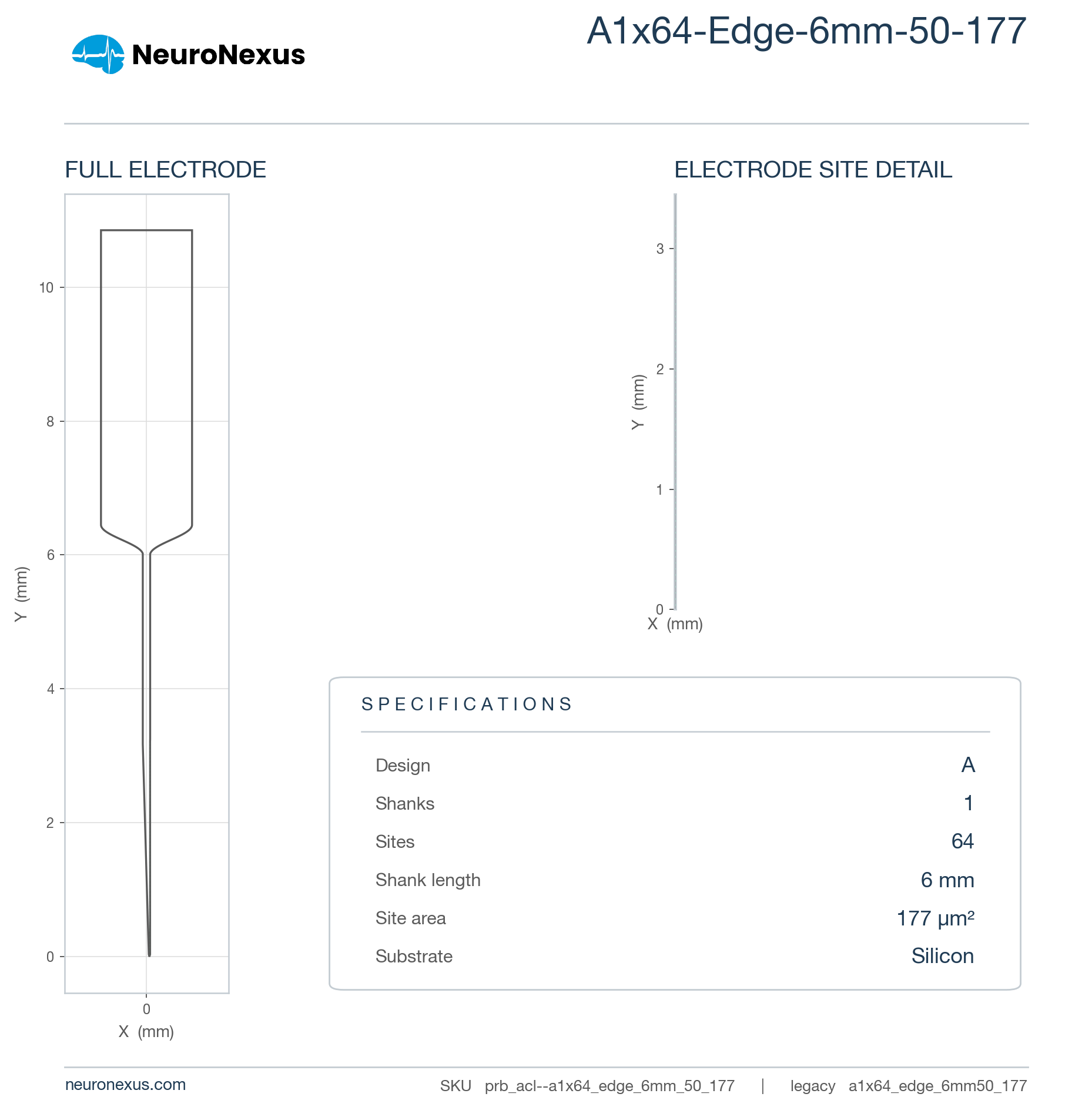

64-site A-Series probe, 1 shank, 6 mm, 50 µm pitch

A single mid-length shank with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 6 mm shanks (61st percentile of the 366 measured), a 3.17 mm-deep site array (92nd percentile), 2,020 sites/mm² (96th percentile) and a 0.94 mm³ neural interface (67th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shank reaches structures a few millimetres down.

Orders as a probe-plus-package assembly, in 10 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a1x64_edge_6mm50_177

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

13 specs

Channels64
Shanks1
Shank length6 mm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span3168 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.935 mm³ (higher than 67% of 369 designs)
Site coverage density2,020.2 sites/mm² (higher than 96% of 369 designs)
Brain coverage density68.4 sites/mm³ (higher than 75% of 369 designs)
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

11 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
AVH64 — 64-ch
AVIH64 — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel single-shank silicon probe, 6 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a1x64_edge_6mm_50_177.15um.a64

Options

11 of 11
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

Loading the compatible products…

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 72% of its family
Maximum site depth
5.97 mm
0.972 mm51.29 mm

Top 39% of catalog designs

Maximum site depth 5.97 mm — higher than 61% of catalog designs and 72% of its family
Minimum site depth
2.8 mm
0.067 mm44.74 mm

Top 75% of catalog designs

Minimum site depth 2.8 mm — higher than 25% of catalog designs and 28% of its family
Span, x
0.01 mm
0.01 mm6.03 mm

Smallest among catalog designs

Span, x 0.01 mm — higher than 0% of catalog designs and 1% of its family
Span, y
3.17 mm
0.01 mm10.55 mm

Top 8% of catalog designs

Span, y 3.17 mm — higher than 92% of catalog designs and 98% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.032 mm²
0.002 mm²28.74 mm²

Top 79% of catalog designs

Site outline area 0.032 mm² — higher than 21% of catalog designs and 22% of its family
Neural interface volume
0.935 mm³
0.149 mm³17.19 mm³

Top 33% of catalog designs

Neural interface volume 0.935 mm³ — higher than 67% of catalog designs and 66% of its family
Site coverage density
2020.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 4% of catalog designs

Site coverage density 2020.2 sites/mm² — higher than 96% of catalog designs and 93% of its family
Brain coverage density
68.42 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 25% of catalog designs

Brain coverage density 68.42 sites/mm³ — higher than 75% of catalog designs and 84% of its family
Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

3 notes · Geometry · Construction · Packaging and connector options

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge Single-Shank 64-Channel Probe, 6 mmSKU prb_acl--a1x64_edge_6mm_50_177

Cited in 2,342 publications (product line)
