Neural Probes · A-Series

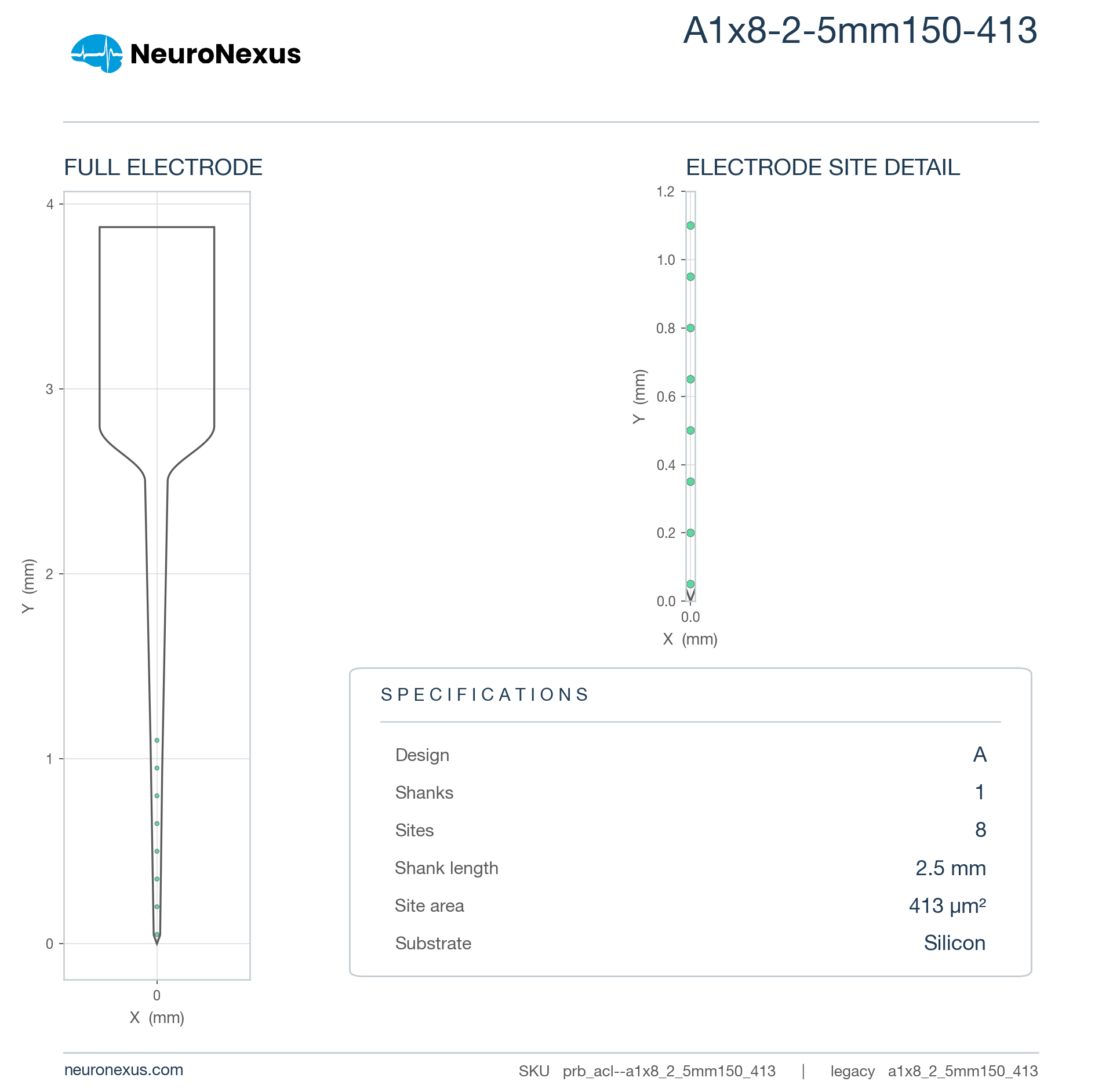

Linear Single-Shank 8-Channel Probe, 2.5 mm

8Sites
1Shanks
2.5mmShank Length
150µmSite Pitch
Part no.A1x8-2-5mm150-413
Contact us to order
Contents

8-site A-Series probe, 2.5 mm

A single short shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 8 sites (6th percentile), 2.5 mm shanks (9th percentile of the 366 measured), a 1.07 mm-deep site array (55th percentile), 328 sites/mm² (58th percentile) and a 0.41 mm³ neural interface (26th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The short shank suits superficial targets.

Orders as a probe-plus-package assembly, in 6 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a1x8_2_5mm150_413

Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

12 specs

Channels8
Shanks1
Shank length2.5 mm
Site area413 µm²
Site pitch150 µm
Vertical span1073 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.411 mm³ (higher than 26% of 369 designs)
Site coverage density327.8 sites/mm² (higher than 58% of 369 designs)
Brain coverage density19.5 sites/mm³ (higher than 13% of 369 designs)
Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

Narrow the options with the filters or pick a card, then contact us to order that configuration.

6 options

Configure

Compatible Package
All
A16 — 16-ch
CM16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex

Your selection

8-channel single-shank silicon probe, 2.5 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a1x8_2_5mm150_413.15um.a16

Options

6 of 6
Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

Loading the compatible products…

Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
8
41024

Top 94% of catalog designs

Sites 8 — higher than 6% of catalog designs and 2% of its family
Shanks
1
116

Top 58% of catalog designs

Shanks 1 — higher than 42% of catalog designs and 40% of its family
Shank length
2.5 mm
1 mm60 mm

Top 91% of catalog designs

Shank length 2.5 mm — higher than 9% of catalog designs and 8% of its family
Maximum site depth
2.46 mm
0.972 mm51.29 mm

Top 91% of catalog designs

Maximum site depth 2.46 mm — higher than 9% of catalog designs and 8% of its family
Minimum site depth
1.39 mm
0.067 mm44.74 mm

Top 93% of catalog designs

Minimum site depth 1.39 mm — higher than 7% of catalog designs and 6% of its family
Span, x
0.023 mm
0.01 mm6.03 mm

Top 82% of catalog designs

Span, x 0.023 mm — higher than 18% of catalog designs and 20% of its family
Span, y
1.07 mm
0.01 mm10.55 mm

Top 45% of catalog designs

Span, y 1.07 mm — higher than 55% of catalog designs and 51% of its family
Site pitch, y
0.15 µm
0.01 µm1.5 µm

Top 14% of catalog designs

Site pitch, y 0.15 µm — higher than 86% of catalog designs and 84% of its family
Site outline area
0.024 mm²
0.002 mm²28.74 mm²

Top 81% of catalog designs

Site outline area 0.024 mm² — higher than 19% of catalog designs and 20% of its family
Neural interface volume
0.411 mm³
0.149 mm³17.19 mm³

Top 74% of catalog designs

Neural interface volume 0.411 mm³ — higher than 26% of catalog designs and 17% of its family
Site coverage density
327.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 42% of catalog designs

Site coverage density 327.8 sites/mm² — higher than 58% of catalog designs and 61% of its family
Brain coverage density
19.46 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 87% of catalog designs

Brain coverage density 19.46 sites/mm³ — higher than 13% of catalog designs and 8% of its family
Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

3 notes · Geometry · Construction · Packaging and connector options

Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 8-Channel Probe, 2.5 mmSKU prb_acl--a1x8_2_5mm150_413

Cited in 2,342 publications (product line)
