Neural Probes · A-Series

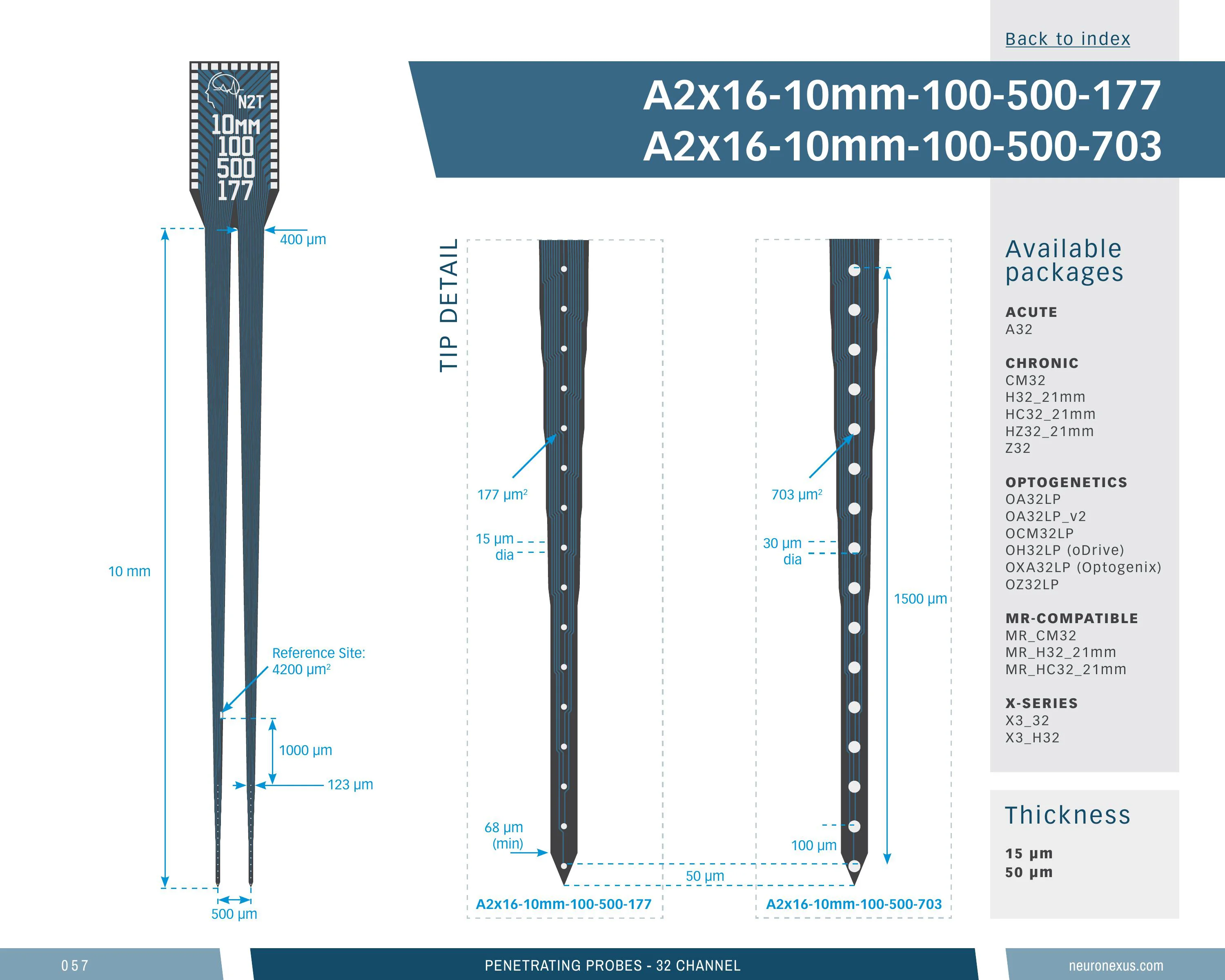

Linear 2-Shank 32-Channel Probe, 10 mm

32Sites
2Shanks
10mmShank Length
100µmSite Pitch
Part no.A2x16-10mm-100-500-703
Contents

32-site A-Series probe, 2 shanks, 703 µm², 100 µm pitch

Two long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.53 mm-deep site array (73rd percentile), 39 sites/mm² (16th percentile) and a 1.05 mm³ neural interface (74th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x16_10mm_100_500_703

Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

13 specs

Channels32
Shanks2
Shank length10 mm
Shank separation500 µm
Site area703 µm²
Site pitch100 µm
Vertical span1530 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume1.045 mm³ (higher than 74% of 369 designs)
Site coverage density39.5 sites/mm² (higher than 16% of 369 designs)
Brain coverage density30.6 sites/mm³ (higher than 27% of 369 designs)
Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 2-shank silicon probe, 10 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a2x16_10mm_100_500_703.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

Loading the compatible products…

Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 94% of its family
Shank separation
0.5 mm
0.05 mm1.8 mm

Top 6% of catalog designs

Shank separation 0.5 mm — higher than 94% of catalog designs and 99% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 17% of catalog designs

Maximum site depth 9.96 mm — higher than 83% of catalog designs and 92% of its family
Minimum site depth
8.44 mm
0.067 mm44.74 mm

Top 22% of catalog designs

Minimum site depth 8.44 mm — higher than 78% of catalog designs and 85% of its family
Span, x
0.53 mm
0.01 mm6.03 mm

Top 46% of catalog designs

Span, x 0.53 mm — higher than 54% of catalog designs and 57% of its family
Span, y
1.53 mm
0.01 mm10.55 mm

Top 27% of catalog designs

Span, y 1.53 mm — higher than 73% of catalog designs and 76% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.81 mm²
0.002 mm²28.74 mm²

Top 22% of catalog designs

Site outline area 0.81 mm² — higher than 78% of catalog designs and 78% of its family
Neural interface volume
1.05 mm³
0.149 mm³17.19 mm³

Top 26% of catalog designs

Neural interface volume 1.05 mm³ — higher than 74% of catalog designs and 76% of its family
Site coverage density
39.49 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 84% of catalog designs

Site coverage density 39.49 sites/mm² — higher than 16% of catalog designs and 18% of its family
Brain coverage density
30.62 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 73% of catalog designs

Brain coverage density 30.62 sites/mm³ — higher than 27% of catalog designs and 27% of its family
Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 32-Channel Probe, 10 mmSKU prb_acl--a2x16_10mm_100_500_703

Cited in 2,342 publications (product line)
