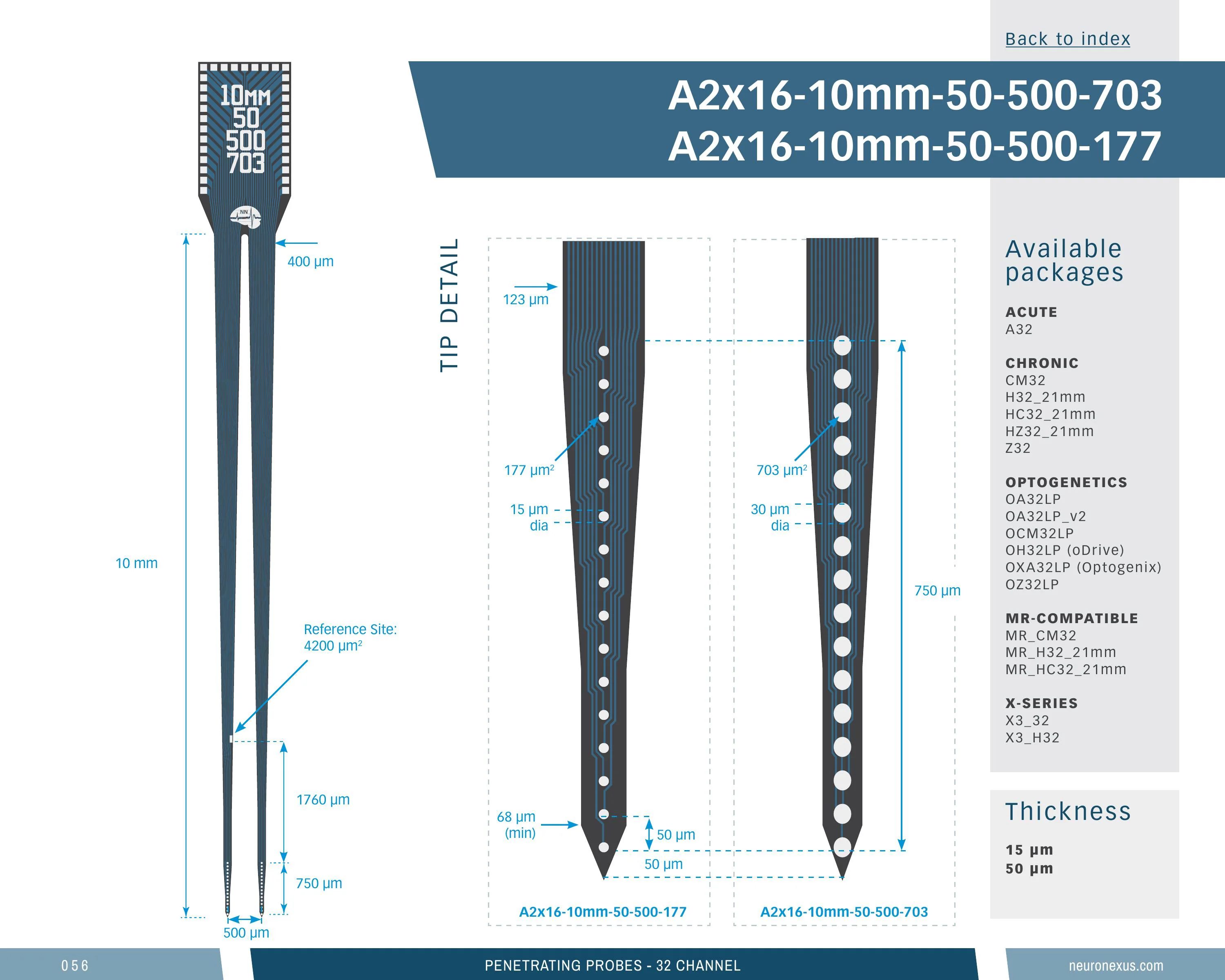

32-site A-Series probe, 2 shanks, 177 µm², 50 µm pitch
Two long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.77 mm-deep site array (45th percentile), 81 sites/mm² (33rd percentile) and a 0.64 mm³ neural interface (50th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a2x16_10mm_50_500_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 2 |
| Shank length | 10 mm |
| Shank separation | 500 µm |
| Site area | 177 µm² |
| Site pitch | 50 µm |
| Vertical span | 765 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 0.642 mm³ (higher than 50% of 369 designs) |
| Site coverage density | 81.2 sites/mm² (higher than 33% of 369 designs) |
| Brain coverage density | 49.8 sites/mm³ (higher than 56% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel 2-shank silicon probe, 10 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · OA32LP — 32-ch Samtec
15 μm · OCM32LP — 32-ch Omnetics
15 μm · OH32LP (21 mm cable) — 32-ch Omnetics
15 μm · OZ32LP — 32-ch Hirose
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · OA32LP — 32-ch Samtec
50 μm · OCM32LP — 32-ch Omnetics
50 μm · OH32LP (21 mm cable) — 32-ch Omnetics
50 μm · OZ32LP — 32-ch Hirose
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 47% of catalog designs
Shanks 2 — higher than 53% of catalog designs and 52% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 6% of catalog designs
Shank separation 0.5 mm — higher than 94% of catalog designs and 99% of its familyTop 21% of catalog designs
Maximum site depth 9.96 mm — higher than 79% of catalog designs and 84% of its familyTop 16% of catalog designs
Minimum site depth 9.19 mm — higher than 84% of catalog designs and 92% of its familyTop 47% of catalog designs
Span, x 0.515 mm — higher than 53% of catalog designs and 54% of its familyTop 55% of catalog designs
Span, y 0.765 mm — higher than 45% of catalog designs and 40% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its familyTop 37% of catalog designs
Site outline area 0.394 mm² — higher than 63% of catalog designs and 61% of its familyTop 50% of catalog designs
Neural interface volume 0.642 mm³ — higher than 50% of catalog designs and 47% of its familyTop 67% of catalog designs
Site coverage density 81.15 sites/mm² — higher than 33% of catalog designs and 34% of its familyTop 44% of catalog designs
Brain coverage density 49.82 sites/mm³ — higher than 56% of catalog designs and 64% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
