Neural Probes · A-Series

Linear 2-Shank 32-Channel Probe, 3 mm

32Sites
2Shanks
3mmShank Length
65µmSite Pitch
Part no.A2x16-3mm65-500-177
Contact us to order
Contents

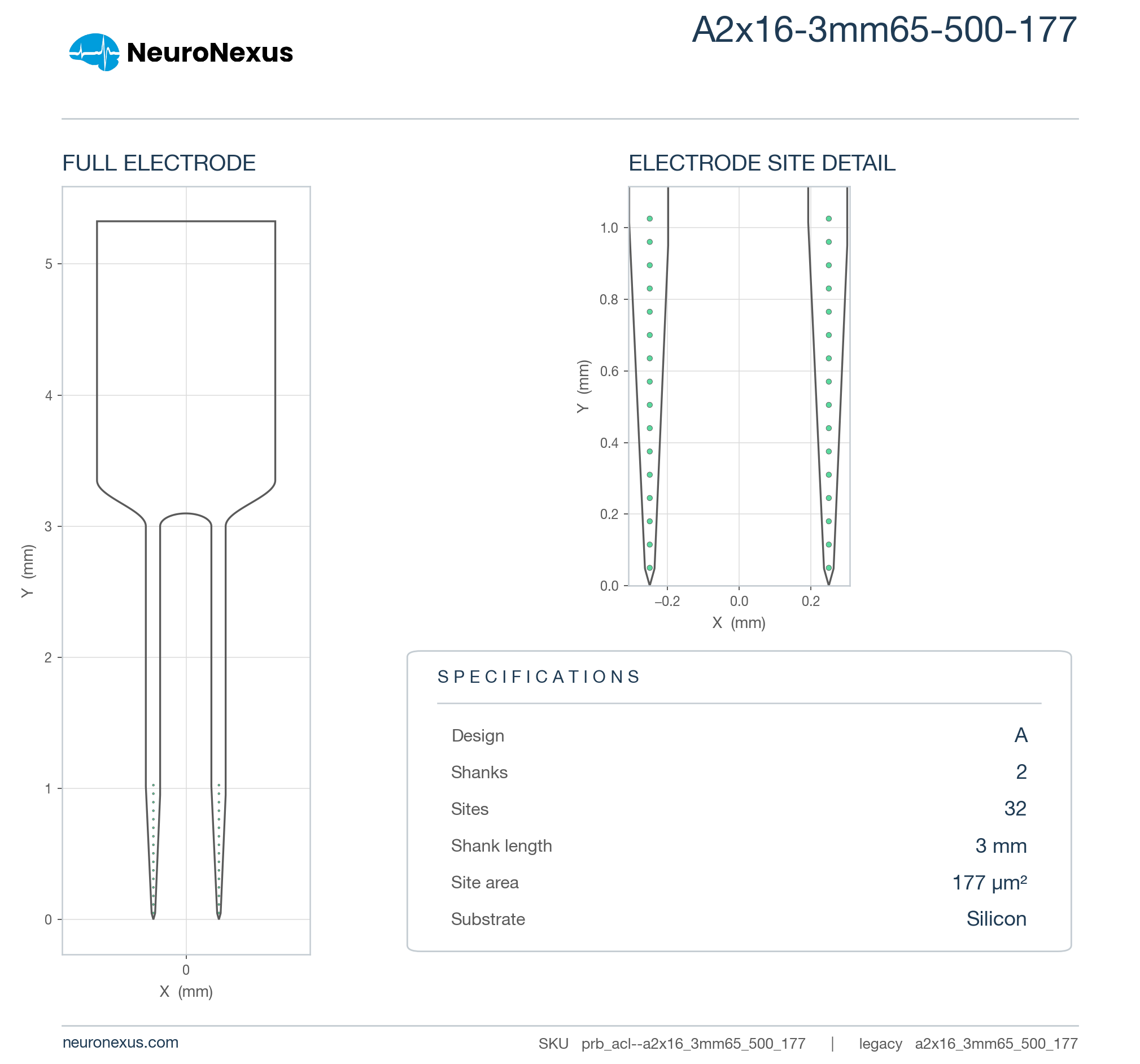

32-site A-Series probe, 2 shanks, 3 mm, 177 µm²

Two short shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.99 mm-deep site array (53rd percentile), 63 sites/mm² (24th percentile) and a 0.76 mm³ neural interface (61st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 9 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x16_3mm65_500_177

Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

12 specs

Channels32
Shanks2
Shank length3 mm
Site area177 µm²
Site pitch65 µm
Vertical span990 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.756 mm³ (higher than 61% of 369 designs)
Site coverage density62.8 sites/mm² (higher than 24% of 369 designs)
Brain coverage density42.3 sites/mm³ (higher than 44% of 369 designs)
Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

11 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex

Your selection

32-channel 2-shank silicon probe, 3 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a2x16_3mm65_500_177.15um.a32

Options

11 of 11
Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

Loading the compatible products…

Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 24% of its family
Maximum site depth
2.96 mm
0.972 mm51.29 mm

Top 86% of catalog designs

Maximum site depth 2.96 mm — higher than 14% of catalog designs and 13% of its family
Minimum site depth
1.97 mm
0.067 mm44.74 mm

Top 85% of catalog designs

Minimum site depth 1.97 mm — higher than 15% of catalog designs and 16% of its family
Span, x
0.515 mm
0.01 mm6.03 mm

Top 47% of catalog designs

Span, x 0.515 mm — higher than 53% of catalog designs and 54% of its family
Span, y
0.99 mm
0.01 mm10.55 mm

Top 47% of catalog designs

Span, y 0.99 mm — higher than 53% of catalog designs and 49% of its family
Site pitch, y
0.065 µm
0.01 µm1.5 µm

Top 43% of catalog designs

Site pitch, y 0.065 µm — higher than 57% of catalog designs and 43% of its family
Site outline area
0.51 mm²
0.002 mm²28.74 mm²

Top 28% of catalog designs

Site outline area 0.51 mm² — higher than 72% of catalog designs and 73% of its family
Neural interface volume
0.756 mm³
0.149 mm³17.19 mm³

Top 39% of catalog designs

Neural interface volume 0.756 mm³ — higher than 61% of catalog designs and 60% of its family
Site coverage density
62.79 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 76% of catalog designs

Site coverage density 62.79 sites/mm² — higher than 24% of catalog designs and 24% of its family
Brain coverage density
42.33 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 56% of catalog designs

Brain coverage density 42.33 sites/mm³ — higher than 44% of catalog designs and 48% of its family
Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 32-Channel Probe, 3 mmSKU prb_acl--a2x16_3mm65_500_177

Cited in 2,342 publications (product line)
