Neural Probes · A-Series

Linear 2-Shank 32-Channel Probe, 5.3 mm

32Sites
2Shanks
5.3mmShank Length
50µmSite Pitch
Part no.A2x16-5-3mm50-1500-177
Contact us to order
Contents

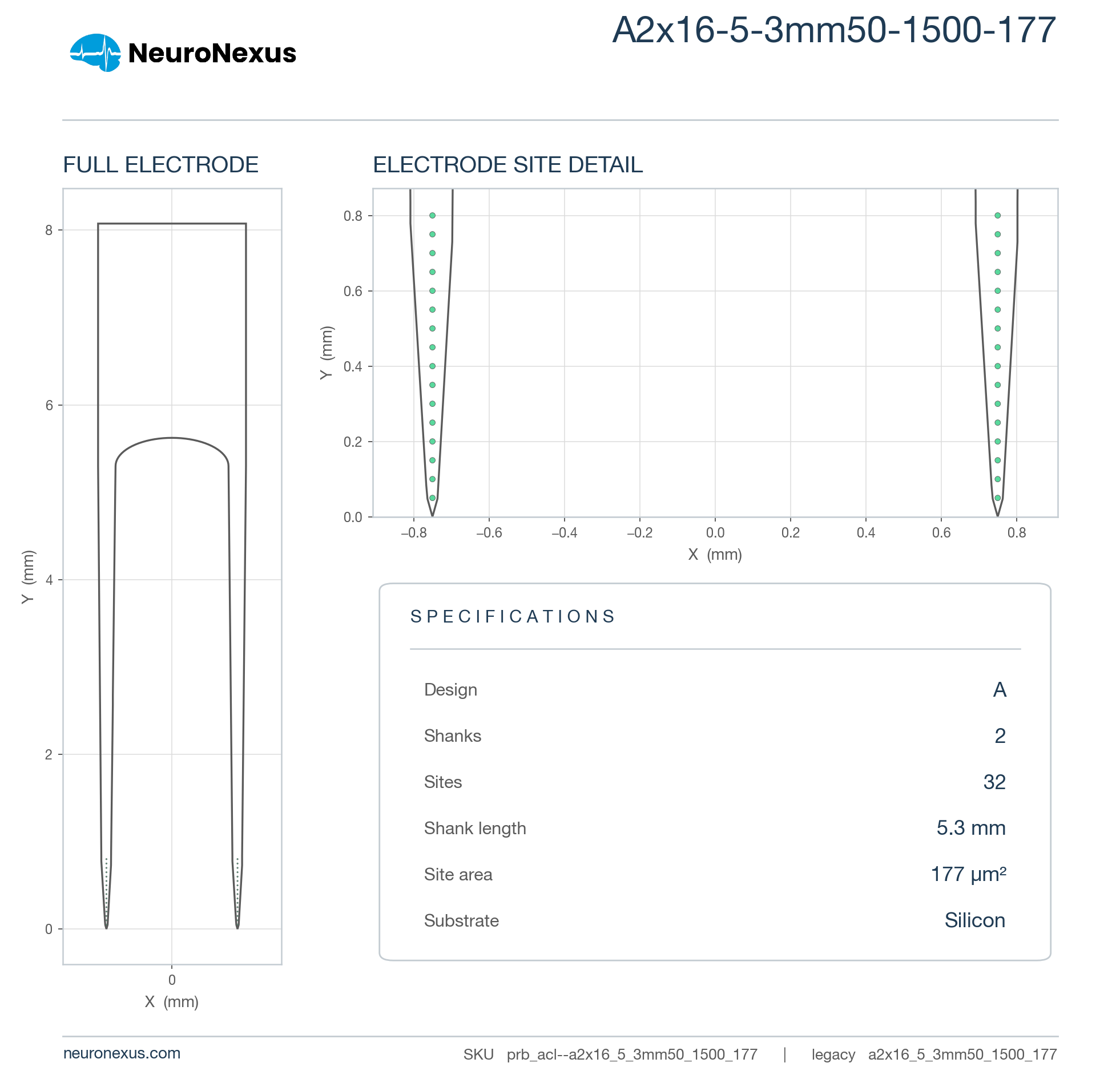

32-site A-Series probe, 2 shanks, 5.3 mm

Two mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5.3 mm shanks (53rd percentile of the 366 measured), a 0.76 mm-deep site array (44th percentile), 28 sites/mm² (9th percentile) and a 1.27 mm³ neural interface (80th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 2 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a2x16_5_3mm50_1500_177

Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

12 specs

Channels32
Shanks2
Shank length5.3 mm
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.274 mm³ (higher than 80% of 369 designs)
Site coverage density27.6 sites/mm² (higher than 9% of 369 designs)
Brain coverage density25.1 sites/mm³ (higher than 18% of 369 designs)
Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

3 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
CM32 — 32-ch Omnetics
OZ32LP_DUAL — 32-ch

Your selection

32-channel 2-shank silicon probe, 5.3 mm — 15 μm, CM32
CM32
Substrate Thickness: 15 μm
Compatible Package: CM32 — 32-ch Omnetics
SKUprb_acl--a2x16_5_3mm50_1500_177.15um.cm32

Options

3 of 3
Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

Loading the compatible products…

Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
5.3 mm
1 mm60 mm

Top 47% of catalog designs

Shank length 5.3 mm — higher than 53% of catalog designs and 62% of its family
Maximum site depth
5.26 mm
0.972 mm51.29 mm

Top 47% of catalog designs

Maximum site depth 5.26 mm — higher than 53% of catalog designs and 62% of its family
Minimum site depth
4.49 mm
0.067 mm44.74 mm

Top 49% of catalog designs

Minimum site depth 4.49 mm — higher than 51% of catalog designs and 63% of its family
Span, x
1.51 mm
0.01 mm6.03 mm

Top 9% of catalog designs

Span, x 1.51 mm — higher than 91% of catalog designs and 90% of its family
Span, y
0.765 mm
0.01 mm10.55 mm

Top 56% of catalog designs

Span, y 0.765 mm — higher than 44% of catalog designs and 38% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
1.16 mm²
0.002 mm²28.74 mm²

Top 16% of catalog designs

Site outline area 1.16 mm² — higher than 84% of catalog designs and 87% of its family
Neural interface volume
1.27 mm³
0.149 mm³17.19 mm³

Top 20% of catalog designs

Neural interface volume 1.27 mm³ — higher than 80% of catalog designs and 84% of its family
Site coverage density
27.62 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 91% of catalog designs

Site coverage density 27.62 sites/mm² — higher than 9% of catalog designs and 7% of its family
Brain coverage density
25.11 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 82% of catalog designs

Brain coverage density 25.11 sites/mm³ — higher than 18% of catalog designs and 13% of its family
Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 32-Channel Probe, 5.3 mmSKU prb_acl--a2x16_5_3mm50_1500_177

Cited in 2,342 publications (product line)
