Neural Probes · A-Series

Linear 2-Shank 64-Channel Probe, 14.9966 mm

64Sites
2Shanks
15mmShank Length
100µmSite Pitch
Part no.A2x32-15mm100-200-177
Contact us to order
Contents

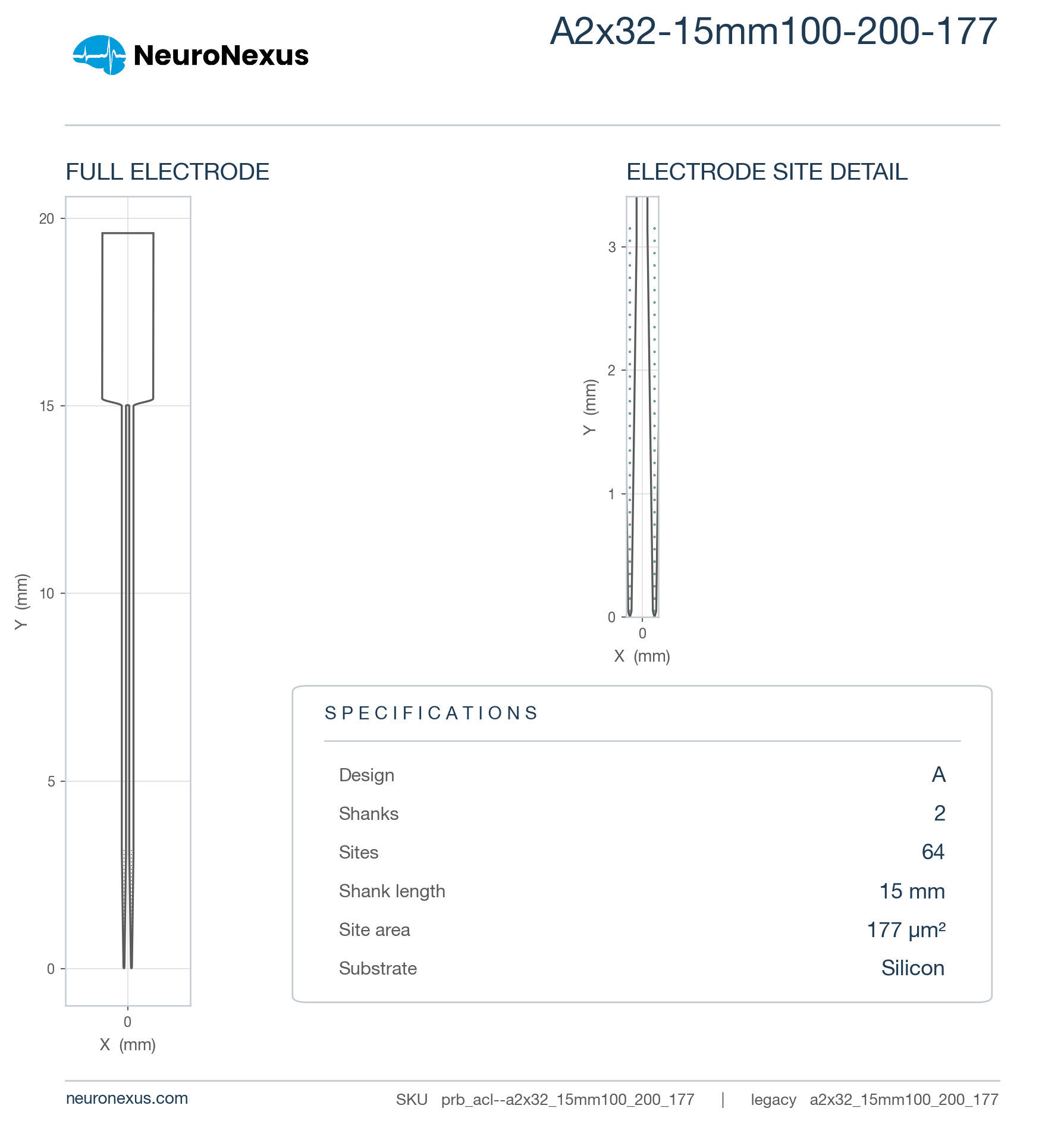

64-site A-Series probe, 2 shanks, 15 mm

Two long shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 15 mm shanks (94th percentile of the 366 measured), a 3.11 mm-deep site array (87th percentile), 96 sites/mm² (34th percentile) and a 1.29 mm³ neural interface (81st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a2x32_15mm100_200_177

Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

12 specs

Channels64
Shanks2
Shank length14.9966 mm
Site area177 µm²
Site pitch100 µm
Vertical span3115 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.292 mm³ (higher than 81% of 369 designs)
Site coverage density95.6 sites/mm² (higher than 34% of 369 designs)
Brain coverage density49.5 sites/mm³ (higher than 56% of 369 designs)
Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

4 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel 2-shank silicon probe, 14.99659 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a2x32_15mm100_200_177.15um.a64

Options

4 of 4
Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

Loading the compatible products…

Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
15 mm
1 mm60 mm

Top 6% of catalog designs

Shank length 15 mm — higher than 94% of catalog designs and 97% of its family
Maximum site depth
14.95 mm
0.972 mm51.29 mm

Top 5% of catalog designs

Maximum site depth 14.95 mm — higher than 95% of catalog designs and 97% of its family
Minimum site depth
11.84 mm
0.067 mm44.74 mm

Top 5% of catalog designs

Minimum site depth 11.84 mm — higher than 95% of catalog designs and 98% of its family
Span, x
0.215 mm
0.01 mm6.03 mm

Top 57% of catalog designs

Span, x 0.215 mm — higher than 43% of catalog designs and 43% of its family
Span, y
3.11 mm
0.01 mm10.55 mm

Top 13% of catalog designs

Span, y 3.11 mm — higher than 87% of catalog designs and 90% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.669 mm²
0.002 mm²28.74 mm²

Top 26% of catalog designs

Site outline area 0.669 mm² — higher than 74% of catalog designs and 74% of its family
Neural interface volume
1.29 mm³
0.149 mm³17.19 mm³

Top 19% of catalog designs

Neural interface volume 1.29 mm³ — higher than 81% of catalog designs and 86% of its family
Site coverage density
95.64 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 66% of catalog designs

Site coverage density 95.64 sites/mm² — higher than 34% of catalog designs and 37% of its family
Brain coverage density
49.53 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 44% of catalog designs

Brain coverage density 49.53 sites/mm³ — higher than 56% of catalog designs and 63% of its family
Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 64-Channel Probe, 14.9966 mmSKU prb_acl--a2x32_15mm100_200_177

Cited in 2,342 publications (product line)
