Neural Probes · A-Series

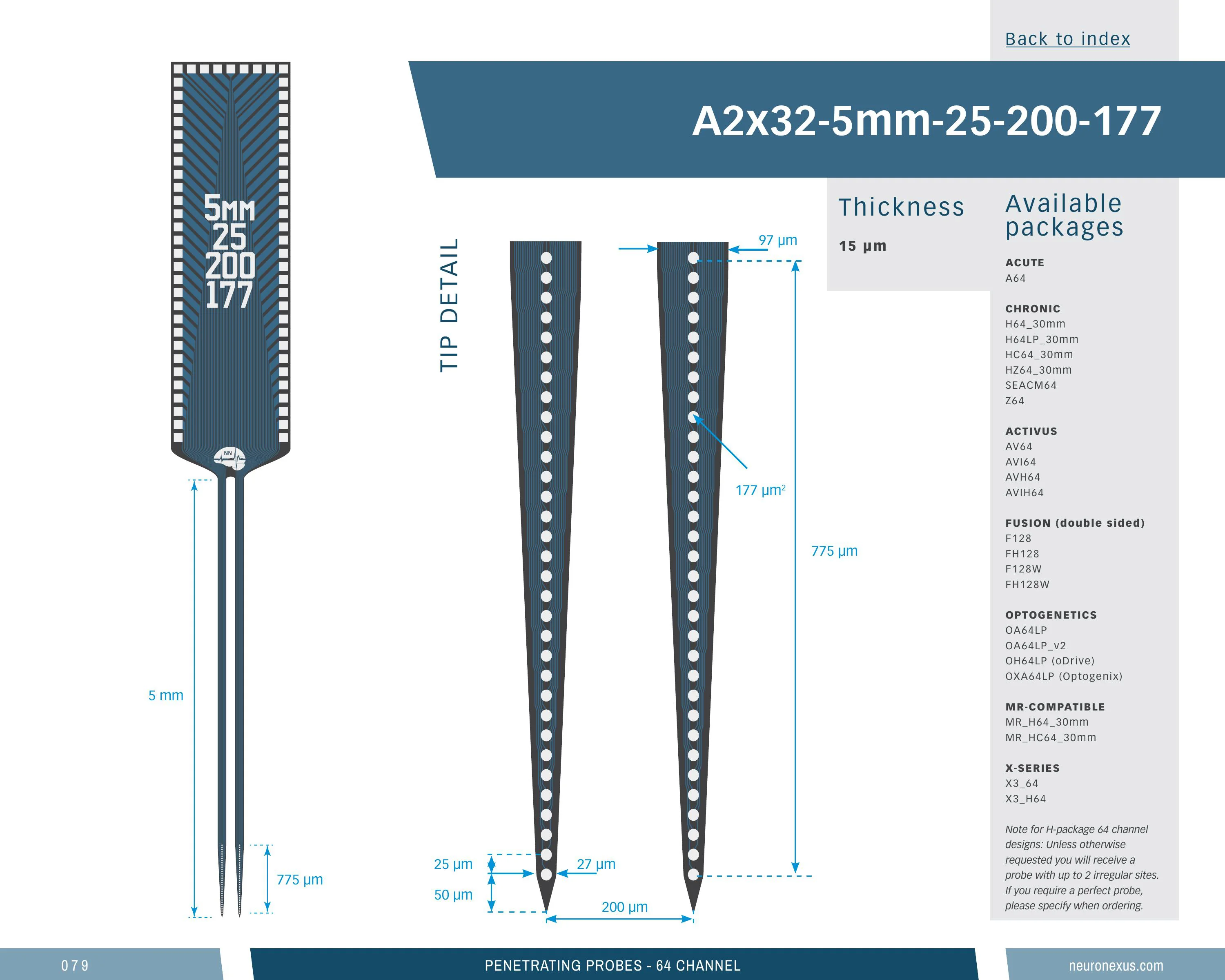

Linear 2-Shank 64-Channel Probe, 5 mm

64Sites
2Shanks
5mmShank Length
25µmSite Pitch
Part no.A2x32-5mm-25-200-177
Contents

64-site A-Series probe, 2 shanks, 5 mm, 25 µm pitch

Two mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.79 mm-deep site array (49th percentile), 377 sites/mm² (61st percentile) and a 0.46 mm³ neural interface (28th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x32_5mm_25_200_177

Linear 2-Shank 64-Channel Probe, 5 mmSKU prb_acl--a2x32_5mm_25_200_177

13 specs

Channels64
Shanks2
Shank length5 mm
Shank separation200 µm
Site area177 µm²
Site pitch25 µm
Vertical span790 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.461 mm³ (higher than 28% of 369 designs)
Site coverage density377.1 sites/mm² (higher than 61% of 369 designs)
Brain coverage density138.8 sites/mm³ (higher than 93% of 369 designs)
Linear 2-Shank 64-Channel Probe, 5 mmSKU prb_acl--a2x32_5mm_25_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 2-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a2x32_5mm_25_200_177.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
Linear 2-Shank 64-Channel Probe, 5 mmSKU prb_acl--a2x32_5mm_25_200_177

Loading the compatible products…

Linear 2-Shank 64-Channel Probe, 5 mmSKU prb_acl--a2x32_5mm_25_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 66% of catalog designs

Maximum site depth 4.96 mm — higher than 34% of catalog designs and 39% of its family
Minimum site depth
4.17 mm
0.067 mm44.74 mm

Top 58% of catalog designs

Minimum site depth 4.17 mm — higher than 42% of catalog designs and 51% of its family
Span, x
0.215 mm
0.01 mm6.03 mm

Top 57% of catalog designs

Span, x 0.215 mm — higher than 43% of catalog designs and 43% of its family
Span, y
0.79 mm
0.01 mm10.55 mm

Top 51% of catalog designs

Span, y 0.79 mm — higher than 49% of catalog designs and 46% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
0.17 mm²
0.002 mm²28.74 mm²

Top 49% of catalog designs

Site outline area 0.17 mm² — higher than 51% of catalog designs and 51% of its family
Neural interface volume
0.461 mm³
0.149 mm³17.19 mm³

Top 72% of catalog designs

Neural interface volume 0.461 mm³ — higher than 28% of catalog designs and 18% of its family
Site coverage density
377.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 39% of catalog designs

Site coverage density 377.1 sites/mm² — higher than 61% of catalog designs and 66% of its family
Brain coverage density
138.8 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 7% of catalog designs

Brain coverage density 138.8 sites/mm³ — higher than 93% of catalog designs and 98% of its family
