Neural Probes · A-Series

Linear 2-Shank 64-Channel Probe, 6 mm

64Sites
2Shanks
6mmShank Length
35µmSite Pitch
Part no.A2x32-6mm-35-200-177
Contact us to order
Contents

64-site A-Series probe, 2 shanks, 6 mm, 35 µm pitch

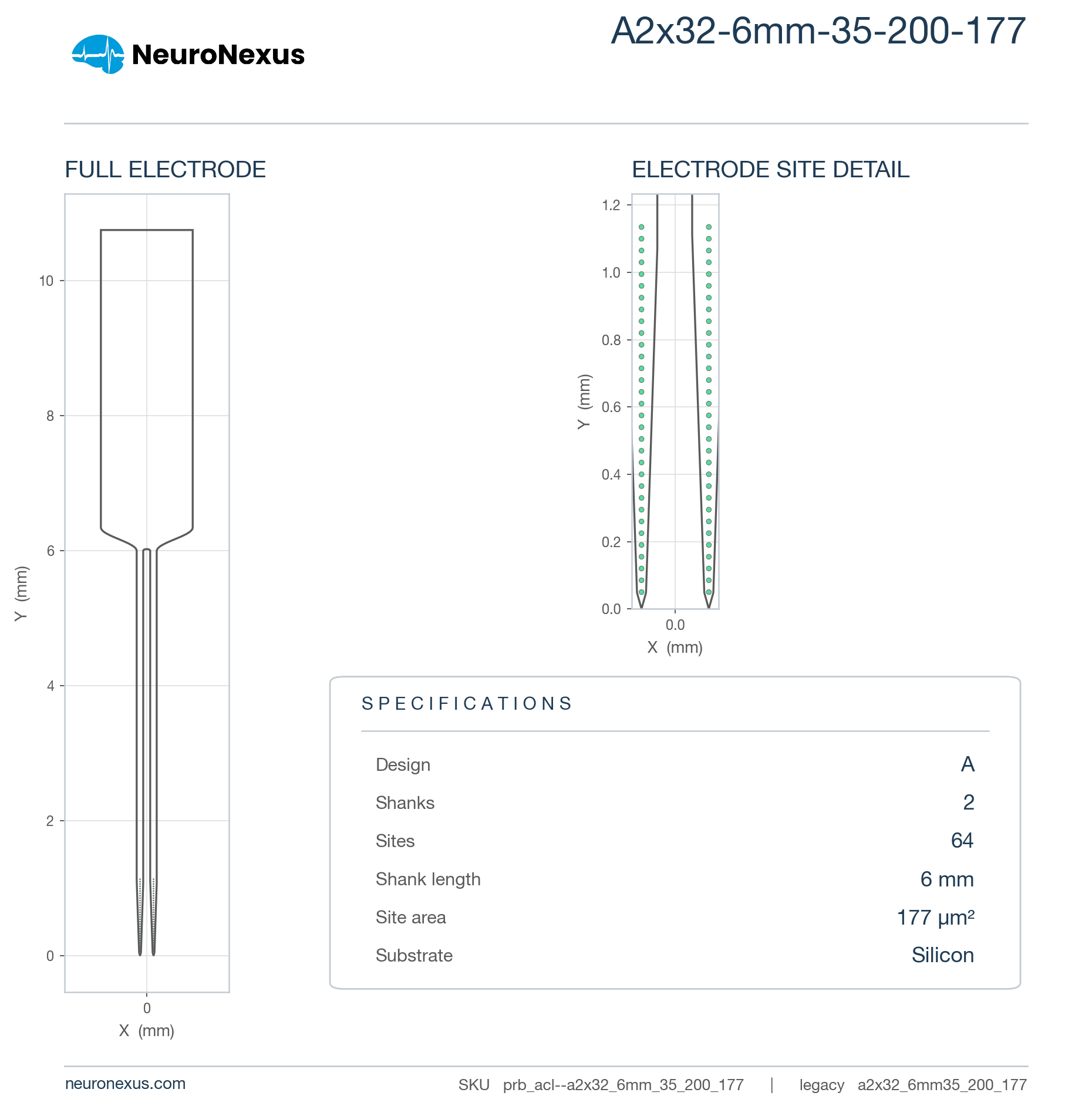

Two mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 6 mm shanks (61st percentile of the 366 measured), a 1.1 mm-deep site array (57th percentile), 271 sites/mm² (54th percentile) and a 0.57 mm³ neural interface (46th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x32_6mm35_200_177

Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

12 specs

Channels64
Shanks2
Shank length6 mm
Site area177 µm²
Site pitch35 µm
Vertical span1100 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.572 mm³ (higher than 46% of 369 designs)
Site coverage density270.6 sites/mm² (higher than 54% of 369 designs)
Brain coverage density111.9 sites/mm³ (higher than 90% of 369 designs)
Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

6 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AVIH64 — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
OH64LP — 64-ch Omnetics
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel 2-shank silicon probe, 6 mm — 50 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a2x32_6mm_35_200_177.50um.a64

Options

6 of 6
Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

Loading the compatible products…

Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
6 mm
1 mm60 mm

Top 39% of catalog designs

Shank length 6 mm — higher than 61% of catalog designs and 72% of its family
Maximum site depth
5.96 mm
0.972 mm51.29 mm

Top 43% of catalog designs

Maximum site depth 5.96 mm — higher than 57% of catalog designs and 67% of its family
Minimum site depth
4.86 mm
0.067 mm44.74 mm

Top 39% of catalog designs

Minimum site depth 4.86 mm — higher than 61% of catalog designs and 72% of its family
Span, x
0.215 mm
0.01 mm6.03 mm

Top 57% of catalog designs

Span, x 0.215 mm — higher than 43% of catalog designs and 43% of its family
Span, y
1.1 mm
0.01 mm10.55 mm

Top 43% of catalog designs

Span, y 1.1 mm — higher than 57% of catalog designs and 52% of its family
Site pitch, y
0.035 µm
0.01 µm1.5 µm

Top 64% of catalog designs

Site pitch, y 0.035 µm — higher than 36% of catalog designs and 13% of its family
Site outline area
0.236 mm²
0.002 mm²28.74 mm²

Top 44% of catalog designs

Site outline area 0.236 mm² — higher than 56% of catalog designs and 55% of its family
Neural interface volume
0.572 mm³
0.149 mm³17.19 mm³

Top 54% of catalog designs

Neural interface volume 0.572 mm³ — higher than 46% of catalog designs and 43% of its family
Site coverage density
270.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 46% of catalog designs

Site coverage density 270.6 sites/mm² — higher than 54% of catalog designs and 58% of its family
Brain coverage density
111.9 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 10% of catalog designs

Brain coverage density 111.9 sites/mm³ — higher than 90% of catalog designs and 96% of its family
Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 64-Channel Probe, 6 mmSKU prb_acl--a2x32_6mm_35_200_177

Cited in 2,342 publications (product line)
