Neural Probes · A-Series

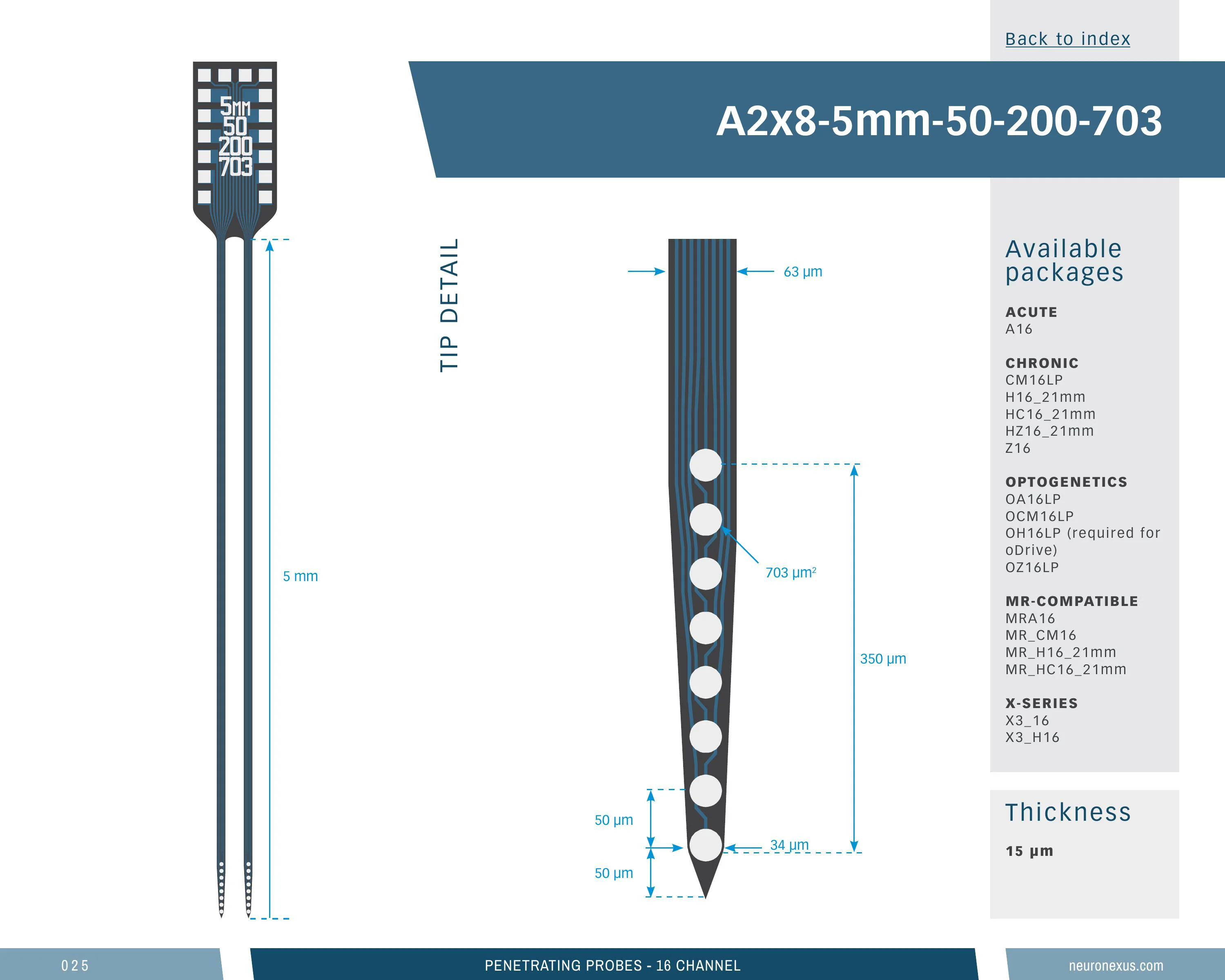

Linear 2-Shank 16-Channel Probe, 5 mm

16Sites
2Shanks
5mmShank Length
50µmSite Pitch
Part no.A2x8-5mm-50-200-703
Contents

16-site A-Series probe, 2 shanks

Two mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.38 mm-deep site array (24th percentile), 183 sites/mm² (46th percentile) and a 0.32 mm³ neural interface (14th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 25 package configurations, 4 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a2x8_5mm_50_200_703

Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

13 specs

Channels16
Shanks2
Shank length5 mm
Shank separation200 µm
Site area703 µm²
Site pitch50 µm
Vertical span380 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.321 mm³ (higher than 14% of 369 designs)
Site coverage density182.6 sites/mm² (higher than 46% of 369 designs)
Brain coverage density49.8 sites/mm³ (higher than 56% of 369 designs)
Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

25 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 2-shank silicon probe, 5 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a2x8_5mm_50_200_703.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

25 of 25
Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

Loading the compatible products…

Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 52% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.97 mm
0.972 mm51.29 mm

Top 54% of catalog designs

Maximum site depth 4.97 mm — higher than 46% of catalog designs and 60% of its family
Minimum site depth
4.58 mm
0.067 mm44.74 mm

Top 47% of catalog designs

Minimum site depth 4.58 mm — higher than 53% of catalog designs and 65% of its family
Span, x
0.23 mm
0.01 mm6.03 mm

Top 56% of catalog designs

Span, x 0.23 mm — higher than 44% of catalog designs and 45% of its family
Span, y
0.38 mm
0.01 mm10.55 mm

Top 76% of catalog designs

Span, y 0.38 mm — higher than 24% of catalog designs and 18% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.088 mm²
0.002 mm²28.74 mm²

Top 57% of catalog designs

Site outline area 0.088 mm² — higher than 43% of catalog designs and 44% of its family
Neural interface volume
0.321 mm³
0.149 mm³17.19 mm³

Top 86% of catalog designs

Neural interface volume 0.321 mm³ — higher than 14% of catalog designs and 7% of its family
Site coverage density
182.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 54% of catalog designs

Site coverage density 182.6 sites/mm² — higher than 46% of catalog designs and 51% of its family
Brain coverage density
49.77 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 44% of catalog designs

Brain coverage density 49.77 sites/mm³ — higher than 56% of catalog designs and 64% of its family
Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 2-Shank 16-Channel Probe, 5 mmSKU prb_acl--a2x8_5mm_50_200_703

Cited in 2,342 publications (product line)
