Neural Probes · A-Series

Linear 4-Shank 64-Channel Probe, 3 mm

64Sites
4Shanks
3mmShank Length
50µmSite Pitch

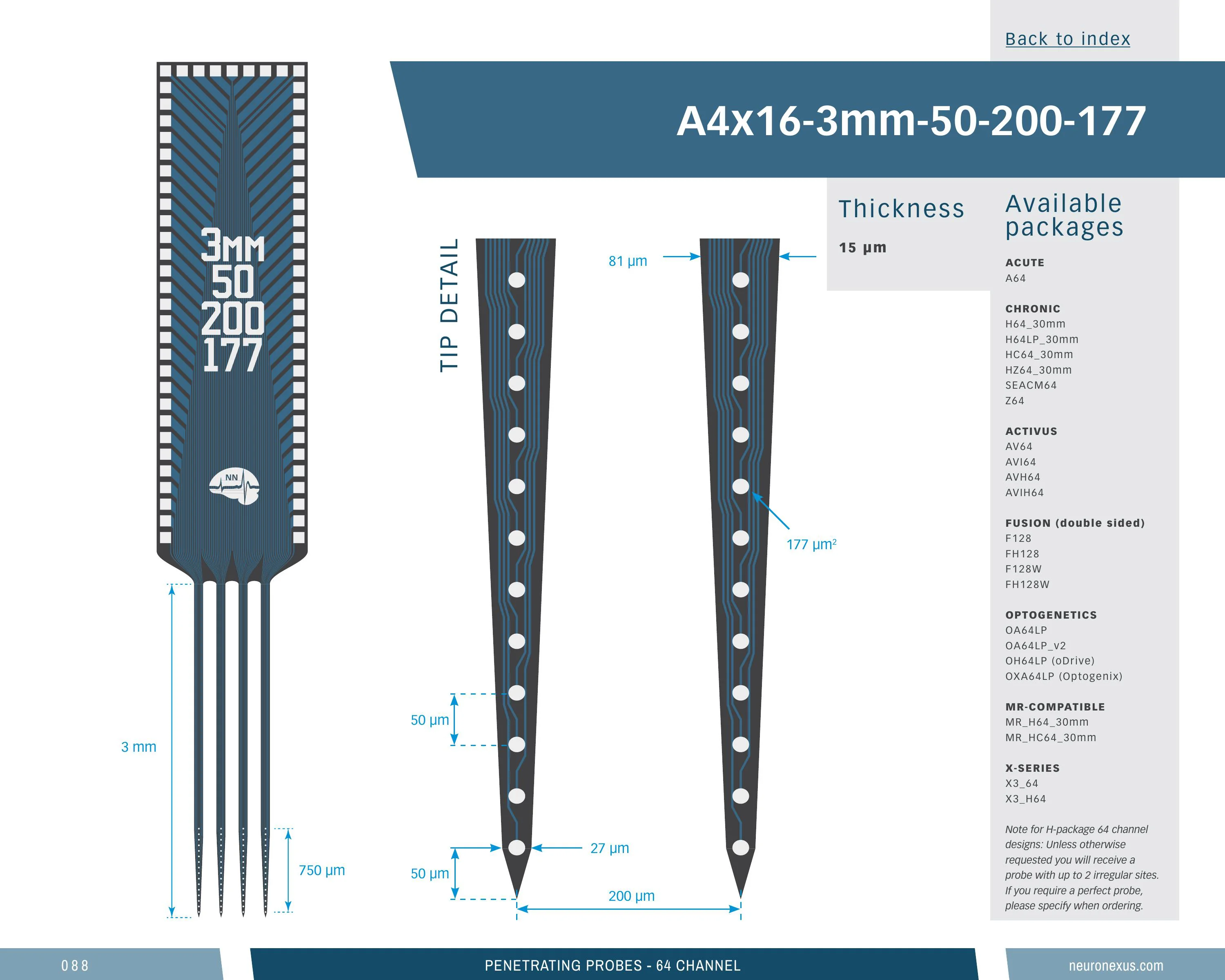

Part no.A4x16-3mm-50-200-177
Contents

64-site A-Series probe, 4 shanks

Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.76 mm-deep site array (44th percentile), 136 sites/mm² (40th percentile) and a 0.71 mm³ neural interface (57th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 22 package configurations, 4 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x16_3mm_50_200_177

Linear 4-Shank 64-Channel Probe, 3 mmSKU prb_acl--a4x16_3mm_50_200_177

13 specs

Channels64
Shanks4
Shank length3 mm
Shank separation200 µm
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.705 mm³ (higher than 57% of 369 designs)
Site coverage density136.1 sites/mm² (higher than 40% of 369 designs)
Brain coverage density90.8 sites/mm³ (higher than 84% of 369 designs)
Linear 4-Shank 64-Channel Probe, 3 mmSKU prb_acl--a4x16_3mm_50_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

22 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 — 64-ch Omnetics
H64LP — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 4-shank silicon probe, 3 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a4x16_3mm_50_200_177.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

22 of 22
Linear 4-Shank 64-Channel Probe, 3 mmSKU prb_acl--a4x16_3mm_50_200_177

Loading the compatible products…

Linear 4-Shank 64-Channel Probe, 3 mmSKU prb_acl--a4x16_3mm_50_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 24% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 32% of its family
Maximum site depth
2.96 mm
0.972 mm51.29 mm

Top 86% of catalog designs

Maximum site depth 2.96 mm — higher than 14% of catalog designs and 13% of its family
Minimum site depth
2.19 mm
0.067 mm44.74 mm

Top 83% of catalog designs

Minimum site depth 2.19 mm — higher than 17% of catalog designs and 18% of its family
Span, x
0.615 mm
0.01 mm6.03 mm

Top 41% of catalog designs

Span, x 0.615 mm — higher than 59% of catalog designs and 62% of its family
Span, y
0.765 mm
0.01 mm10.55 mm

Top 56% of catalog designs

Span, y 0.765 mm — higher than 44% of catalog designs and 38% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.47 mm²
0.002 mm²28.74 mm²

Top 29% of catalog designs

Site outline area 0.47 mm² — higher than 71% of catalog designs and 71% of its family
Neural interface volume
0.705 mm³
0.149 mm³17.19 mm³

Top 43% of catalog designs

Neural interface volume 0.705 mm³ — higher than 57% of catalog designs and 54% of its family
Site coverage density
136.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 60% of catalog designs

Site coverage density 136.1 sites/mm² — higher than 40% of catalog designs and 44% of its family
Brain coverage density
90.77 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 16% of catalog designs

Brain coverage density 90.77 sites/mm³ — higher than 84% of catalog designs and 91% of its family
