Linear 4-Shank 64-Channel Probe, 5 mm

64Sites
4Shanks
5mmShank Length
100µmSite Pitch
Part no.A4x16-5mm-100-200-177
Contact us to order
Contents

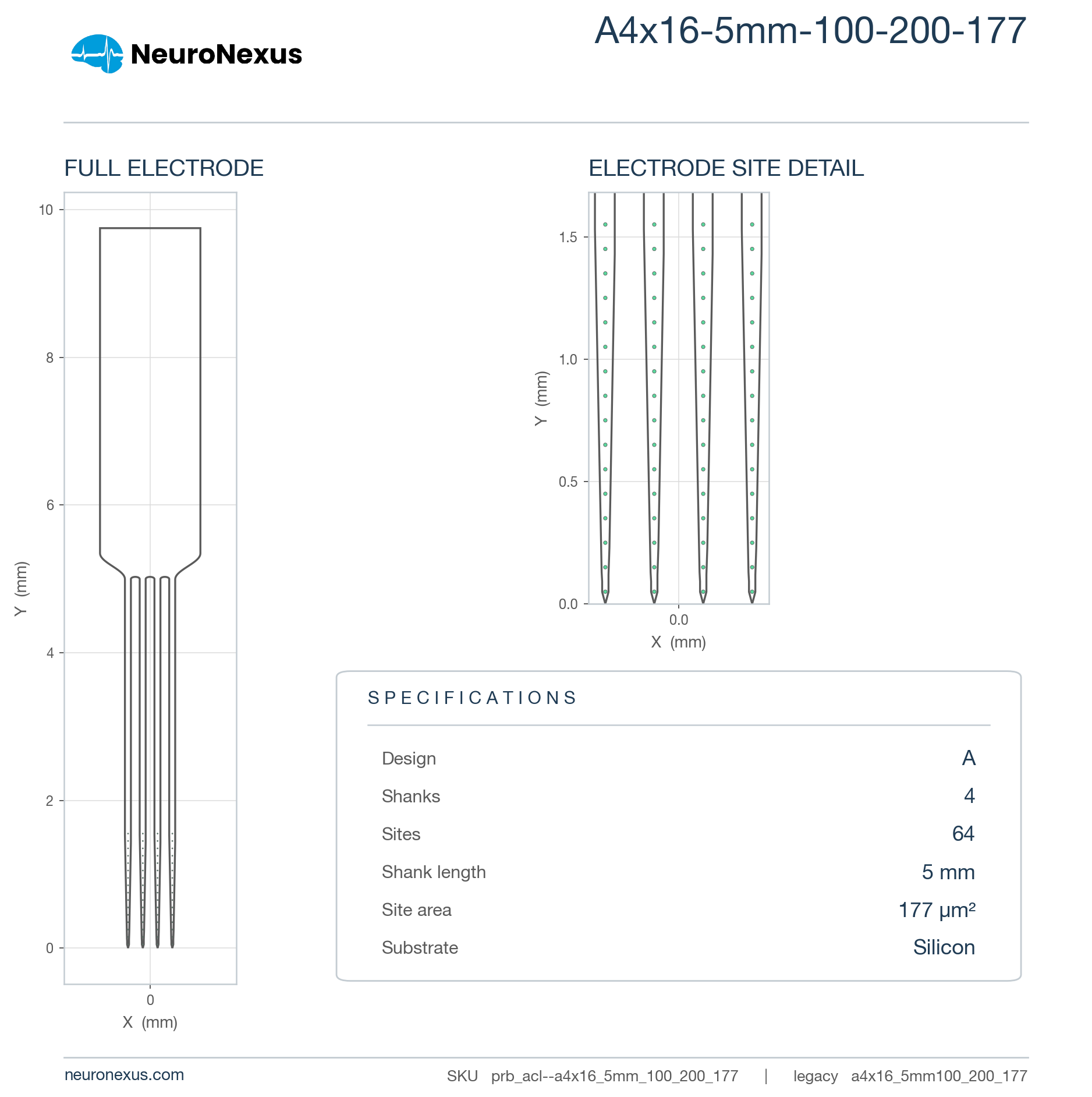

64-site A-Series probe, 4 shanks, 5 mm, 177 µm², 100 µm pitch

Four mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.51 mm-deep site array (69th percentile), 69 sites/mm² (26th percentile) and a 1.12 mm³ neural interface (76th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 7 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a4x16_5mm100_200_177

Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_100_200_177

12 specs

Channels64
Shanks4
Shank length5 mm
Site area177 µm²
Site pitch100 µm
Vertical span1515 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.123 mm³ (higher than 76% of 369 designs)
Site coverage density68.7 sites/mm² (higher than 26% of 369 designs)
Brain coverage density57.0 sites/mm³ (higher than 62% of 369 designs)
