Neural Probes · A-Series

Linear 4-Shank 64-Channel Probe, 5 mm

64Sites
4Shanks
5mmShank Length
50µmSite Pitch
Part no.A4x16-5mm-50-500-703
Contact us to order
Contents

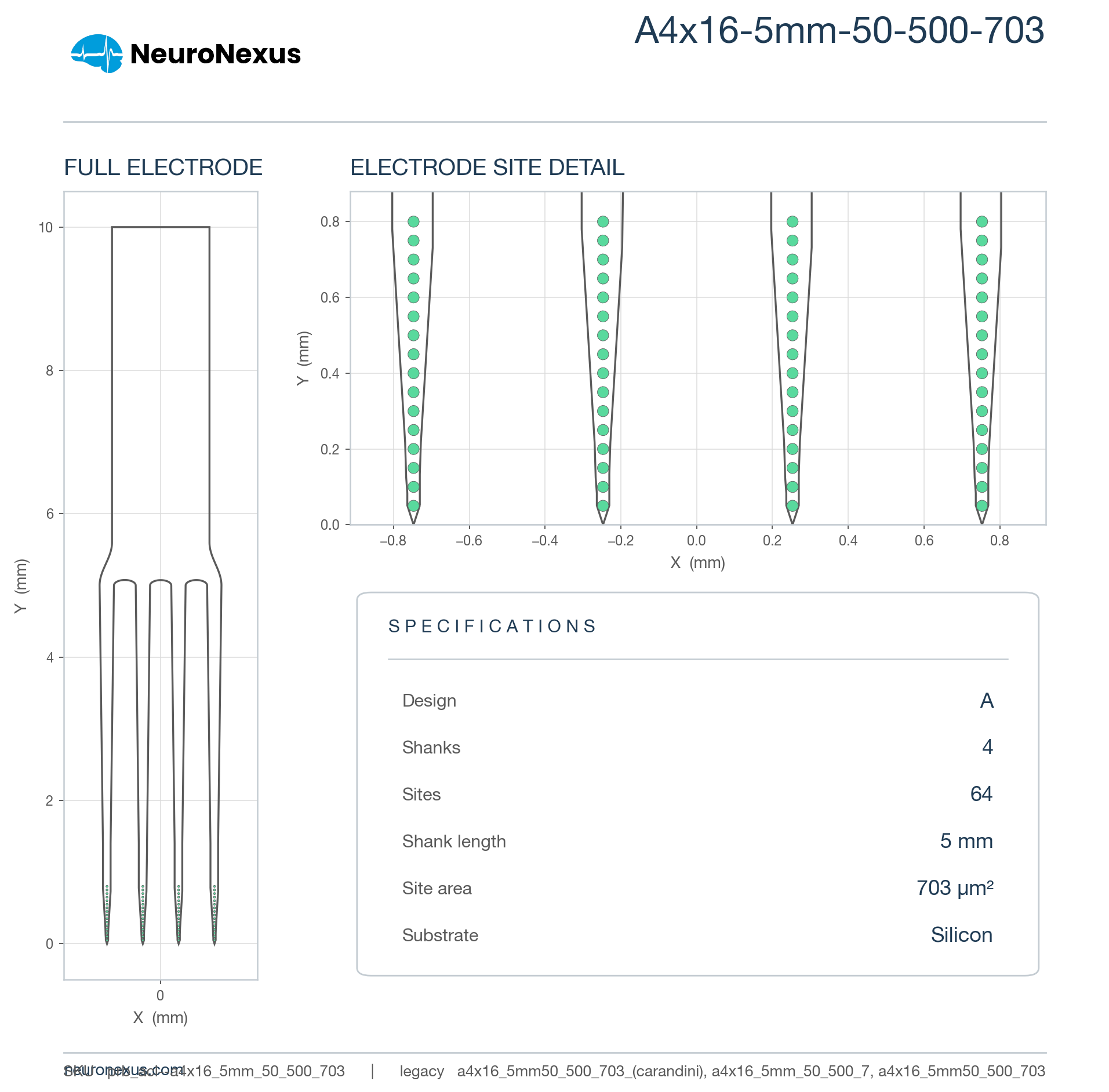

64-site A-Series probe, 4 shanks, 5 mm, 703 µm²

Four mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.78 mm-deep site array (47th percentile), 54 sites/mm² (21st percentile) and a 1.3 mm³ neural interface (82nd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 8 package configurations. Silicon 15 or 50 µm thick. Z-coat available. Research use only.

Also known as

a4x16_5mm50_500_703_(carandini) · a4x16_5mm_50_500_7 · a4x16_5mm50_500_703

Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

12 specs

Channels64
Shanks4
Shank length5 mm
Site area703 µm²
Site pitch50 µm
Vertical span780 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume1.299 mm³ (higher than 82% of 369 designs)
Site coverage density53.7 sites/mm² (higher than 21% of 369 designs)
Brain coverage density49.3 sites/mm³ (higher than 55% of 369 designs)
Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

Narrow the options with the filters or pick a card, then contact us to order that configuration.

8 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AVIH64 — 64-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
HZ64 (30 mm cable) — 64-ch Hirose
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel 4-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a4x16_5mm_50_500_703.15um.a64

Options

8 of 8
Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

Loading the compatible products…

Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 56% of catalog designs

Maximum site depth 4.96 mm — higher than 44% of catalog designs and 55% of its family
Minimum site depth
4.19 mm
0.067 mm44.74 mm

Top 57% of catalog designs

Minimum site depth 4.19 mm — higher than 43% of catalog designs and 52% of its family
Span, x
1.53 mm
0.01 mm6.03 mm

Top 7% of catalog designs

Span, x 1.53 mm — higher than 93% of catalog designs and 93% of its family
Span, y
0.78 mm
0.01 mm10.55 mm

Top 53% of catalog designs

Span, y 0.78 mm — higher than 47% of catalog designs and 44% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
1.19 mm²
0.002 mm²28.74 mm²

Top 15% of catalog designs

Site outline area 1.19 mm² — higher than 85% of catalog designs and 88% of its family
Neural interface volume
1.3 mm³
0.149 mm³17.19 mm³

Top 18% of catalog designs

Neural interface volume 1.3 mm³ — higher than 82% of catalog designs and 86% of its family
Site coverage density
53.65 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 79% of catalog designs

Site coverage density 53.65 sites/mm² — higher than 21% of catalog designs and 23% of its family
Brain coverage density
49.28 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 45% of catalog designs

Brain coverage density 49.28 sites/mm³ — higher than 55% of catalog designs and 62% of its family
Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

3 notes · Geometry · Construction · Packaging and connector options

Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 64-Channel Probe, 5 mmSKU prb_acl--a4x16_5mm_50_500_703

Cited in 2,342 publications (product line)
