64-site A-Series probe, 4 shanks, 6 mm
Four mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 6 mm shanks (61st percentile of the 366 measured), a 0.76 mm-deep site array (44th percentile), 136 sites/mm² (40th percentile) and a 0.71 mm³ neural interface (57th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 5 package configurations, 1 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

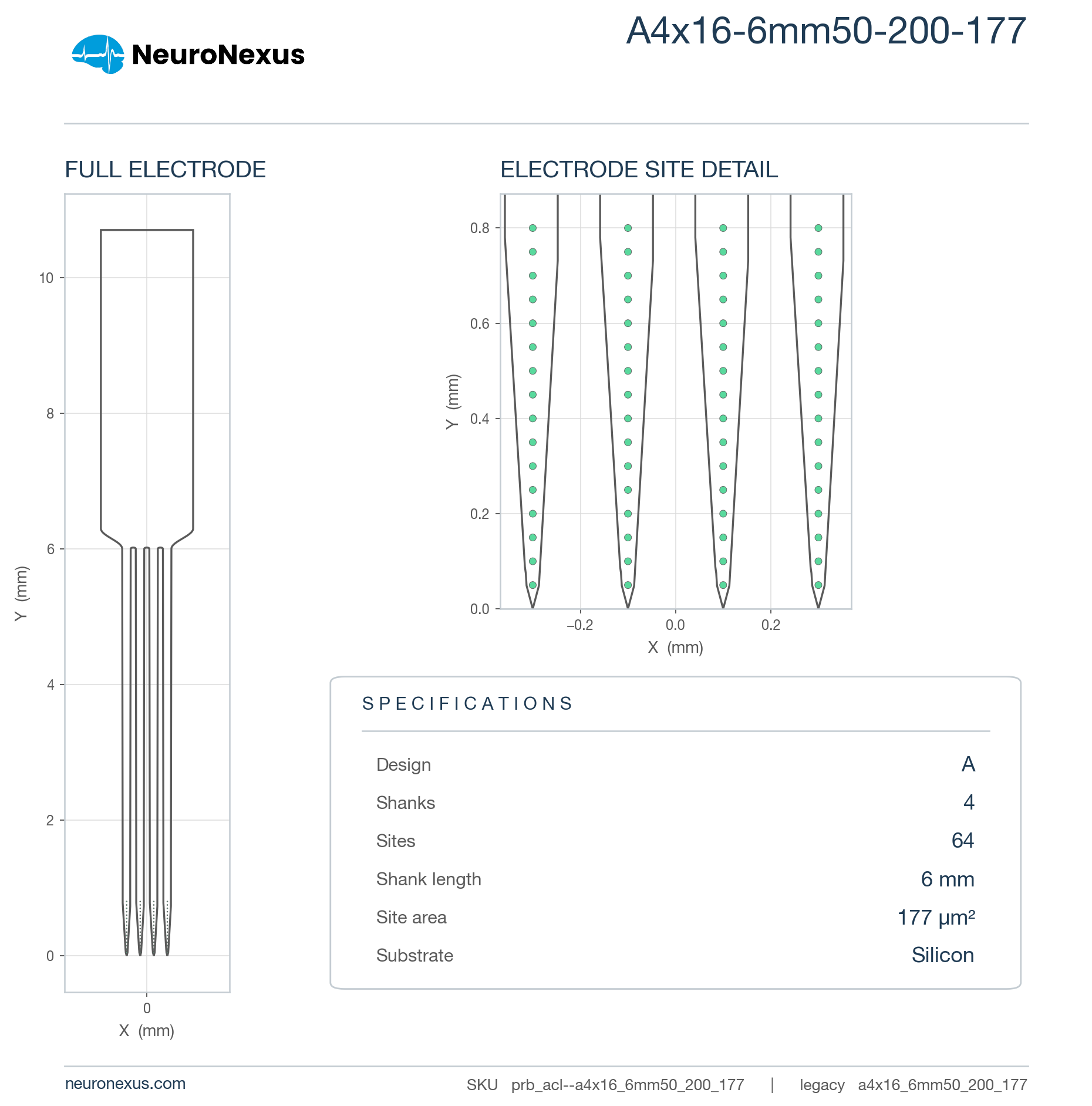

a4x16_6mm50_200_177
12 specs
| Channels | 64 |
|---|---|
| Shanks | 4 |
| Shank length | 6 mm |
| Site area | 177 µm² |
| Site pitch | 50 µm |
| Vertical span | 765 µm |
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.705 mm³ (higher than 57% of 369 designs) |
| Site coverage density | 136.1 sites/mm² (higher than 40% of 369 designs) |
| Brain coverage density | 90.8 sites/mm³ (higher than 84% of 369 designs) |
Narrow the options with the filters or pick a card, then contact us to order that configuration.
5 options
Configure
Your selection
64-channel 4-shank silicon probe, 6 mm — 15 μm, A64
A64Options
5 of 5A64 — 64-ch Samtec
H64LP — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Loading the compatible products…
12 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 93% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 39% of catalog designs
Shank length 6 mm — higher than 61% of catalog designs and 72% of its familyTop 43% of catalog designs
Maximum site depth 5.96 mm — higher than 57% of catalog designs and 66% of its familyTop 37% of catalog designs
Minimum site depth 5.19 mm — higher than 63% of catalog designs and 73% of its familyTop 41% of catalog designs
Span, x 0.615 mm — higher than 59% of catalog designs and 62% of its familyTop 56% of catalog designs
Span, y 0.765 mm — higher than 44% of catalog designs and 38% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its familyTop 29% of catalog designs
Site outline area 0.47 mm² — higher than 71% of catalog designs and 71% of its familyTop 43% of catalog designs
Neural interface volume 0.705 mm³ — higher than 57% of catalog designs and 54% of its familyTop 60% of catalog designs
Site coverage density 136.1 sites/mm² — higher than 40% of catalog designs and 44% of its familyTop 16% of catalog designs
Brain coverage density 90.77 sites/mm³ — higher than 84% of catalog designs and 91% of its family3 notes · Geometry · Construction · Packaging and connector options
