Neural Probes · A-Series

Linear 4-Shank 4-Channel Probe, 3 mm

4Sites
4Shanks
3mmShank Length
76µm²Site Area
Part no.A4x1-3mm1000-80
Contact us to order
Contents

4-site A-Series probe

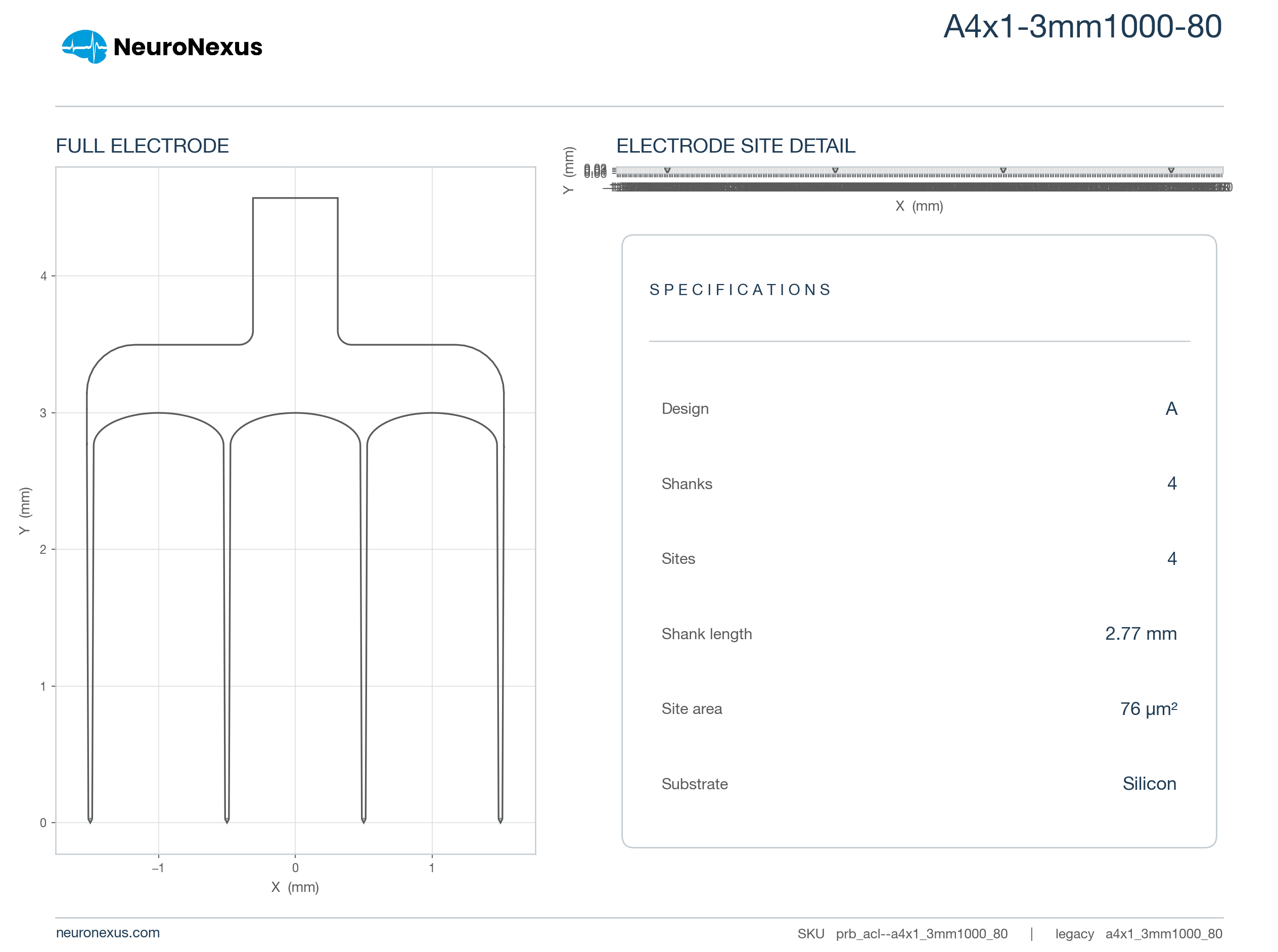

Four short shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 4 sites (5th percentile), 3 mm shanks (a common choice — 39 of 366), a 0.01 mm-deep site array (0th percentile), 134 sites/mm² (39th percentile) and a 0.89 mm³ neural interface (63rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a4x1_3mm1000_80

Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

11 specs

Channels4
Shanks4
Shank length3 mm
Site area76 µm²
Vertical span10 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.895 mm³ (higher than 63% of 369 designs)
Site coverage density133.6 sites/mm² (higher than 39% of 369 designs)
Brain coverage density4.5 sites/mm³ (higher than 2% of 369 designs)
Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

Narrow the options with the filters or pick a card, then contact us to order that configuration.

5 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
CM16LP — 16-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex

Your selection

4-channel 4-shank silicon probe, 3 mm — 15 μm, CM16LP
CM16LP
Substrate Thickness: 15 μm
Compatible Package: CM16LP — 16-ch Omnetics
SKUprb_acl--a4x1_3mm1000_80.15um.cm16lp

Options

5 of 5
Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

Loading the compatible products…

Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

11 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
4
41024

Top 95% of catalog designs

Sites 4 — higher than 5% of catalog designs and 1% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 24% of its family
Maximum site depth
2.97 mm
0.972 mm51.29 mm

Top 81% of catalog designs

Maximum site depth 2.97 mm — higher than 19% of catalog designs and 24% of its family
Minimum site depth
2.97 mm
0.067 mm44.74 mm

Top 72% of catalog designs

Minimum site depth 2.97 mm — higher than 28% of catalog designs and 33% of its family
Span, x
3.01 mm
0.01 mm6.03 mm

Top 2% of catalog designs

Span, x 3.01 mm — higher than 98% of catalog designs and 98% of its family
Span, y
0.01 mm
0.01 mm10.55 mm

Smallest among catalog designs

Span, y 0.01 mm — higher than 0% of catalog designs and 1% of its family
Site outline area
0.03 mm²
0.002 mm²28.74 mm²

Top 80% of catalog designs

Site outline area 0.03 mm² — higher than 20% of catalog designs and 22% of its family
Neural interface volume
0.895 mm³
0.149 mm³17.19 mm³

Top 37% of catalog designs

Neural interface volume 0.895 mm³ — higher than 63% of catalog designs and 62% of its family
Site coverage density
133.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 61% of catalog designs

Site coverage density 133.6 sites/mm² — higher than 39% of catalog designs and 42% of its family
Brain coverage density
4.47 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 98% of catalog designs

Brain coverage density 4.47 sites/mm³ — higher than 2% of catalog designs and 1% of its family
Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

3 notes · Geometry · Construction · Packaging and connector options

Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 4-Channel Probe, 3 mmSKU prb_acl--a4x1_3mm1000_80

Cited in 2,342 publications (product line)
