Neural Probes · A-Series

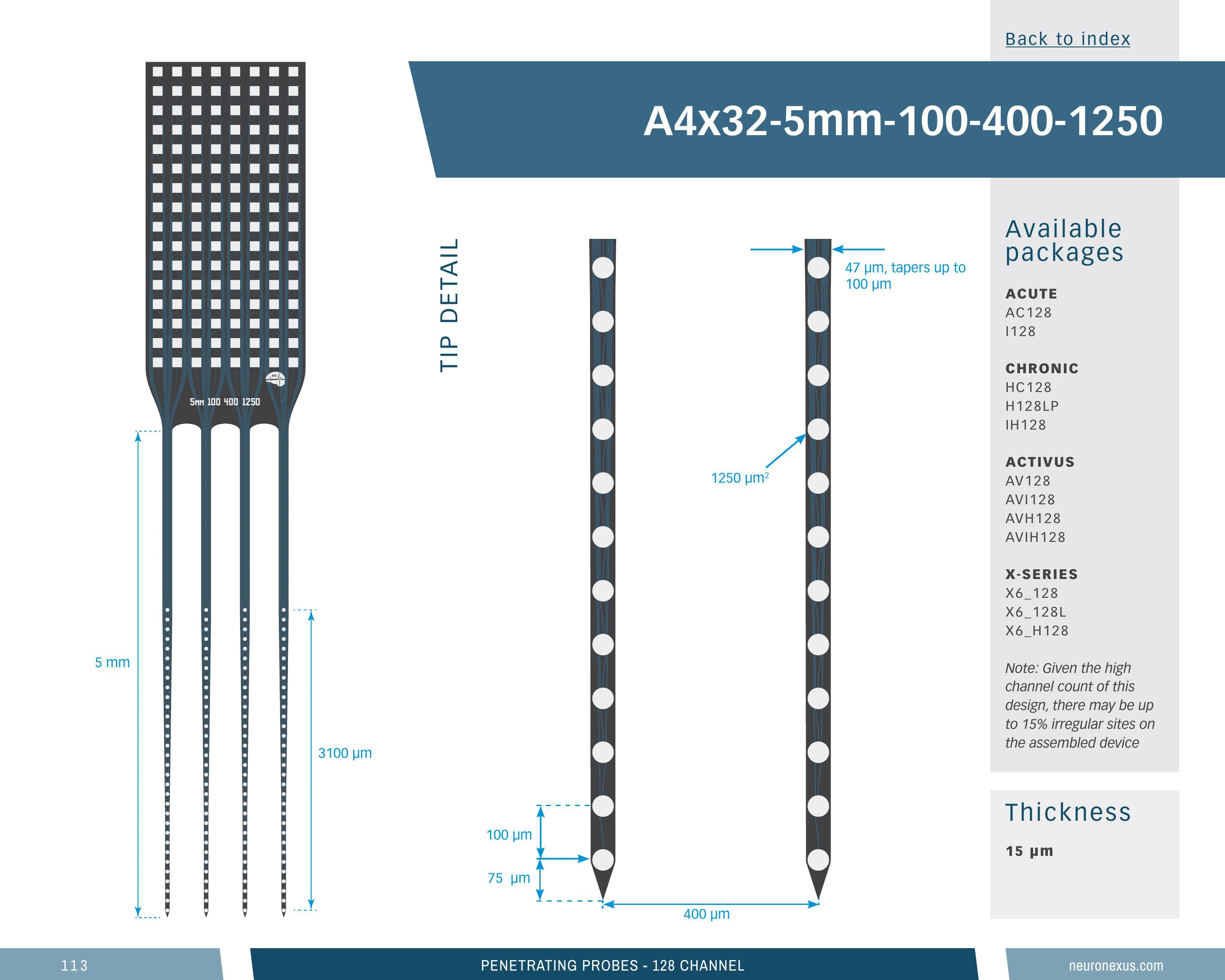

Linear 4-Shank 128-Channel Probe, 5 mm

128Sites
4Shanks
5mmShank Length
100µmSite Pitch
Part no.A4x32-5mm-100-400-1250
Contents

128-site A-Series probe, 4 shanks, 5 mm

Four mid-length shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the top: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 3.14 mm-deep site array (91st percentile), 33 sites/mm² (12th percentile) and a 3.17 mm³ neural interface (96th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x32_5mm_100_400_1250

Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

13 specs

Channels128
Shanks4
Shank length5 mm
Shank separation400 µm
Site area1,250 µm²
Site pitch100 µm
Vertical span3140 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume3.166 mm³ (higher than 96% of 369 designs)
Site coverage density32.9 sites/mm² (higher than 12% of 369 designs)
Brain coverage density40.4 sites/mm³ (higher than 43% of 369 designs)
Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

14 options

Configure

Compatible Package
All
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 4-shank silicon probe, 5 mm — 15 μm, I128
I128
Compatible Package: I128 — 128-ch
SKUprb_acl--a4x32_5mm_100_400_1250.15um.i128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

14 of 14
Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

Loading the compatible products…

Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 98% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.4 mm
0.05 mm1.8 mm

Top 18% of catalog designs

Shank separation 0.4 mm — higher than 82% of catalog designs and 76% of its family
Maximum site depth
4.94 mm
0.972 mm51.29 mm

Top 73% of catalog designs

Maximum site depth 4.94 mm — higher than 27% of catalog designs and 28% of its family
Minimum site depth
1.81 mm
0.067 mm44.74 mm

Top 89% of catalog designs

Minimum site depth 1.81 mm — higher than 11% of catalog designs and 10% of its family
Span, x
1.24 mm
0.01 mm6.03 mm

Top 17% of catalog designs

Span, x 1.24 mm — higher than 83% of catalog designs and 79% of its family
Span, y
3.14 mm
0.01 mm10.55 mm

Top 9% of catalog designs

Span, y 3.14 mm — higher than 91% of catalog designs and 97% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
3.89 mm²
0.002 mm²28.74 mm²

Top 4% of catalog designs

Site outline area 3.89 mm² — higher than 96% of catalog designs and 99% of its family
Neural interface volume
3.17 mm³
0.149 mm³17.19 mm³

Top 4% of catalog designs

Neural interface volume 3.17 mm³ — higher than 96% of catalog designs and 99% of its family
Site coverage density
32.89 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 88% of catalog designs

Site coverage density 32.89 sites/mm² — higher than 12% of catalog designs and 11% of its family
Brain coverage density
40.43 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 57% of catalog designs

Brain coverage density 40.43 sites/mm³ — higher than 43% of catalog designs and 47% of its family
Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 128-Channel Probe, 5 mmSKU prb_acl--a4x32_5mm_100_400_1250

Cited in 2,342 publications (product line)
