Neural Probes · A-Series

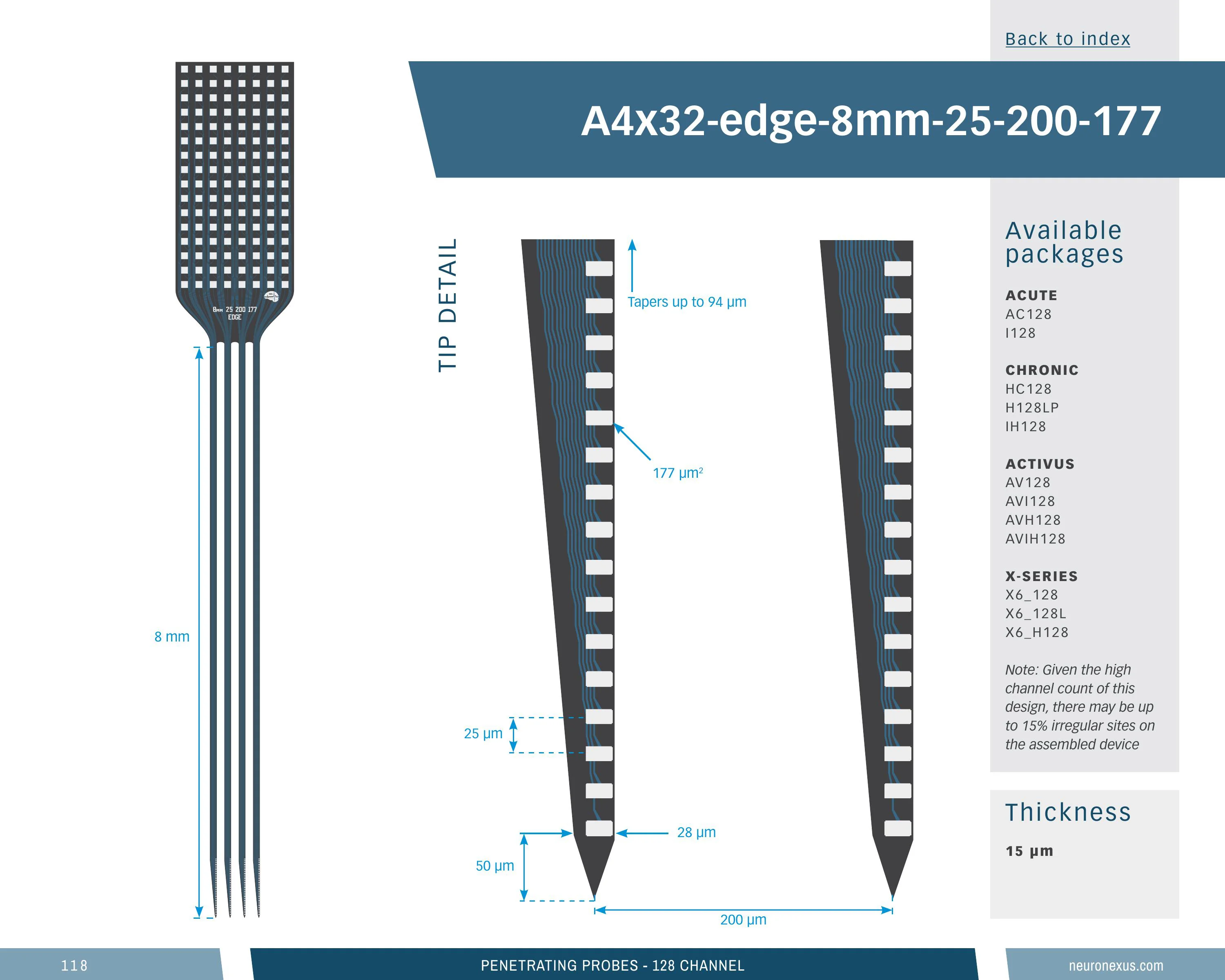

Edge 4-Shank 128-Channel Probe, 8 mm

128Sites
4Shanks
8mmShank Length
25µmSite Pitch
Part no.A4x32-edge-8mm-25-200-177
Contents

128-site A-Series probe, 4 shanks, 8 mm

Four long shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 8 mm shanks (68th percentile of the 366 measured), a 0.79 mm-deep site array (48th percentile), 264 sites/mm² (53rd percentile) and a 0.72 mm³ neural interface (58th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 14 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x32_edge_8mm_25_200_177

Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

14 specs

Channels128
Shanks4
Shank length8 mm
Shank separation200 µm
Site layoutEdge
Site area177 µm²
Site pitch25 µm
Vertical span785 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.718 mm³ (higher than 58% of 369 designs)
Site coverage density263.8 sites/mm² (higher than 53% of 369 designs)
Brain coverage density178.2 sites/mm³ (higher than 95% of 369 designs)
Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

14 options

Configure

Compatible Package
All
A96 — 96-ch Samtec
AC128 — 128-ch Omnetics
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
OAC128 — 128-ch Omnetics
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 4-shank silicon probe, 8 mm — 15 μm, I128
I128
Compatible Package: I128 — 128-ch
SKUprb_acl--a4x32_edge_8mm_25_200_177.15um.i128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

14 of 14
Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

Loading the compatible products…

Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 98% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
8 mm
1 mm60 mm

Top 32% of catalog designs

Shank length 8 mm — higher than 68% of catalog designs and 76% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
7.96 mm
0.972 mm51.29 mm

Top 33% of catalog designs

Maximum site depth 7.96 mm — higher than 67% of catalog designs and 74% of its family
Minimum site depth
7.17 mm
0.067 mm44.74 mm

Top 27% of catalog designs

Minimum site depth 7.17 mm — higher than 73% of catalog designs and 79% of its family
Span, x
0.618 mm
0.01 mm6.03 mm

Top 38% of catalog designs

Span, x 0.618 mm — higher than 62% of catalog designs and 66% of its family
Span, y
0.785 mm
0.01 mm10.55 mm

Top 52% of catalog designs

Span, y 0.785 mm — higher than 48% of catalog designs and 45% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
0.485 mm²
0.002 mm²28.74 mm²

Top 28% of catalog designs

Site outline area 0.485 mm² — higher than 72% of catalog designs and 72% of its family
Neural interface volume
0.718 mm³
0.149 mm³17.19 mm³

Top 42% of catalog designs

Neural interface volume 0.718 mm³ — higher than 58% of catalog designs and 56% of its family
Site coverage density
263.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 47% of catalog designs

Site coverage density 263.8 sites/mm² — higher than 53% of catalog designs and 57% of its family
Brain coverage density
178.2 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 5% of catalog designs

Brain coverage density 178.2 sites/mm³ — higher than 95% of catalog designs and 99% of its family
Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 4-Shank 128-Channel Probe, 8 mmSKU prb_acl--a4x32_edge_8mm_25_200_177

Cited in 2,342 publications (product line)
