Linear 4-Shank 16-Channel Probe, 10 mm

16Sites
4Shanks
10mmShank Length
400µmSite Pitch
Part no.A4x4-10mm-400-500-9000
Contact us to order
Contents

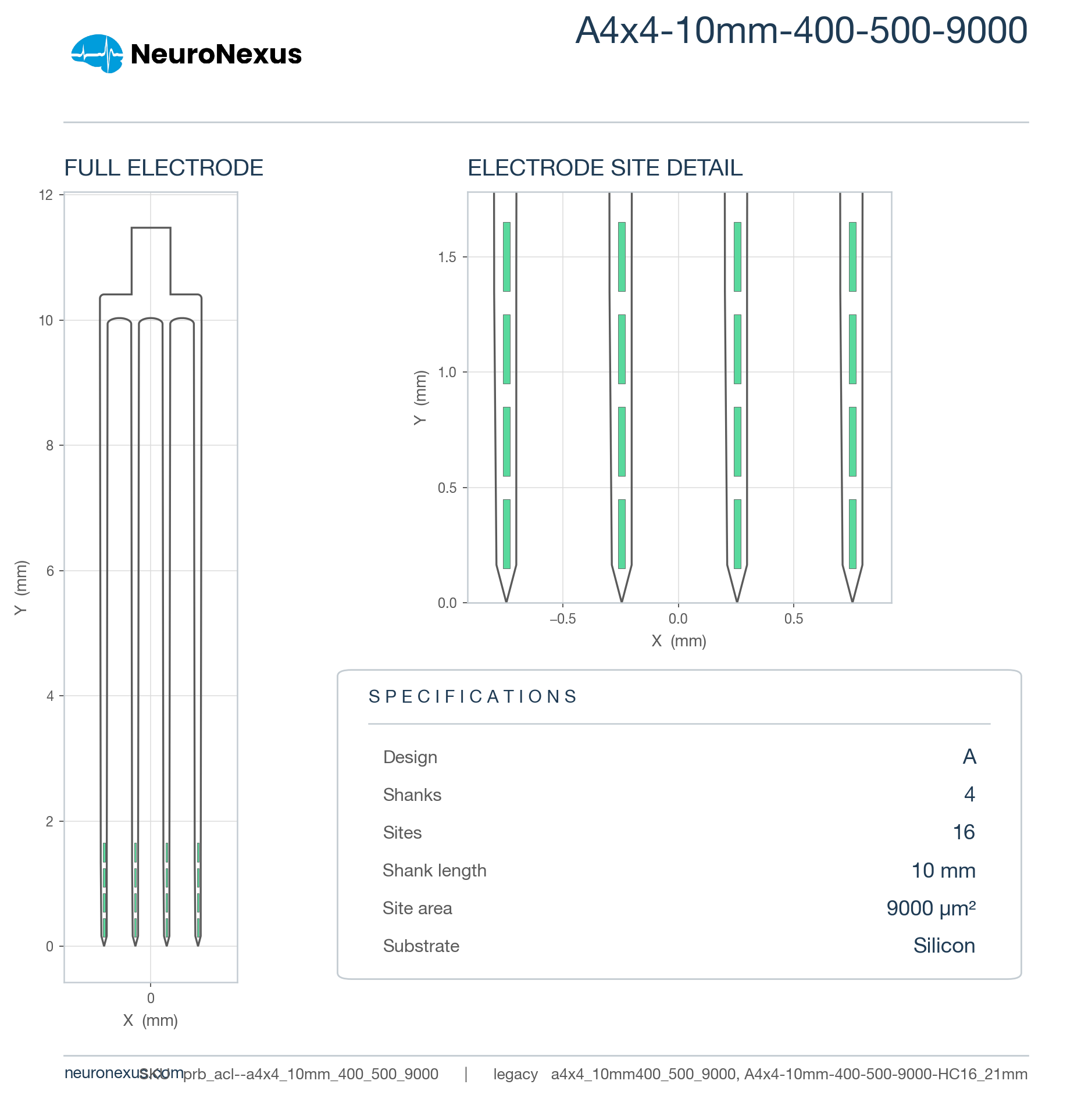

16-site A-Series probe, 4 shanks, 10 mm, 9,000 µm²

Four long shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.5 mm-deep site array (66th percentile), 6.97 sites/mm² (3rd percentile) and a 2.03 mm³ neural interface (92nd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 4 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_10mm400_500_9000 · A4x4-10mm-400-500-9000-HC16_21mm

Linear 4-Shank 16-Channel Probe, 10 mmSKU prb_acl--a4x4_10mm_400_500_9000

12 specs

Channels16
Shanks4
Shank length10 mm
Site area9,000 µm²
Site pitch400 µm
Vertical span1500 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume2.030 mm³ (higher than 92% of 369 designs)
Site coverage density7.0 sites/mm² (higher than 3% of 369 designs)
Brain coverage density7.9 sites/mm³ (higher than 3% of 369 designs)
Linear 4-Shank 16-Channel Probe, 10 mmSKU prb_acl--a4x4_10mm_400_500_9000

Narrow the options with the filters or pick a card, then contact us to order that configuration.

5 options

Configure

Compatible Package
All
A16 — 16-ch
OCM16LP — 16-ch Omnetics
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex

Your selection

16-channel 4-shank silicon probe, 10 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_10mm_400_500_9000.15um.a16

Options

5 of 5
Linear 4-Shank 16-Channel Probe, 10 mmSKU prb_acl--a4x4_10mm_400_500_9000

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 10 mmSKU prb_acl--a4x4_10mm_400_500_9000

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
