Neural Probes · A-Series

Linear 4-Shank 16-Channel Probe, 2 mm

16Sites
4Shanks
2mmShank Length
200µmSite Pitch
Part no.A4x4-2mm-200-200-200
Contents

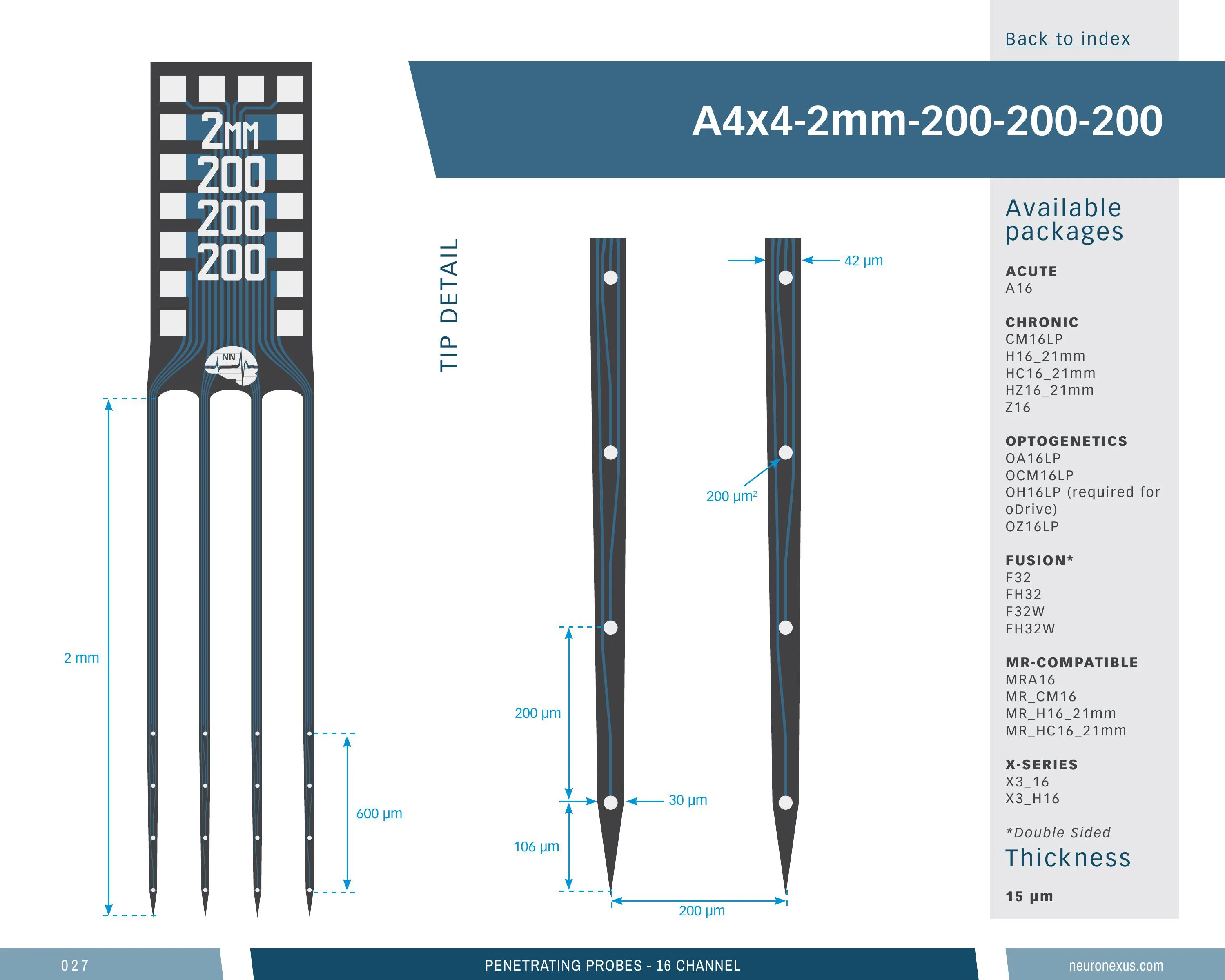

16-site A-Series probe, 4 shanks, 2 mm

Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 2 mm shanks (8th percentile of the 366 measured), a 0.62 mm-deep site array (33rd percentile), 42 sites/mm² (18th percentile) and a 0.62 mm³ neural interface (48th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 25 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_2mm_200_200_200

Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

13 specs

Channels16
Shanks4
Shank length2 mm
Shank separation200 µm
Site area1,221 µm²
Site pitch200 µm
Vertical span616 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.623 mm³ (higher than 48% of 369 designs)
Site coverage density42.2 sites/mm² (higher than 18% of 369 designs)
Brain coverage density25.7 sites/mm³ (higher than 19% of 369 designs)
Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

25 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 2 mm — 15 μm, CM16LP
CM16LP
Compatible Package: CM16LP — 16-ch Omnetics
SKUprb_acl--a4x4_2mm_200_200_200.15um.cm16lp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

25 of 25
Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
2 mm
1 mm60 mm

Top 92% of catalog designs

Shank length 2 mm — higher than 8% of catalog designs and 8% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
1.9 mm
0.972 mm51.29 mm

Top 98% of catalog designs

Maximum site depth 1.9 mm — higher than 2% of catalog designs and 1% of its family
Minimum site depth
1.29 mm
0.067 mm44.74 mm

Top 94% of catalog designs

Minimum site depth 1.29 mm — higher than 6% of catalog designs and 3% of its family
Span, x
0.616 mm
0.01 mm6.03 mm

Top 40% of catalog designs

Span, x 0.616 mm — higher than 60% of catalog designs and 65% of its family
Span, y
0.616 mm
0.01 mm10.55 mm

Top 67% of catalog designs

Span, y 0.616 mm — higher than 33% of catalog designs and 24% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
0.379 mm²
0.002 mm²28.74 mm²

Top 38% of catalog designs

Site outline area 0.379 mm² — higher than 62% of catalog designs and 59% of its family
Neural interface volume
0.623 mm³
0.149 mm³17.19 mm³

Top 52% of catalog designs

Neural interface volume 0.623 mm³ — higher than 48% of catalog designs and 45% of its family
Site coverage density
42.17 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 82% of catalog designs

Site coverage density 42.17 sites/mm² — higher than 18% of catalog designs and 21% of its family
Brain coverage density
25.69 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 81% of catalog designs

Brain coverage density 25.69 sites/mm³ — higher than 19% of catalog designs and 15% of its family
Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 16-Channel Probe, 2 mmSKU prb_acl--a4x4_2mm_200_200_200

Cited in 2,342 publications (product line)
