Neural Probes · A-Series

Linear 4-Shank 16-Channel Probe, 3 mm

16Sites
4Shanks
3mmShank Length
100µmSite Pitch
Part no.A4x4-3mm-100-125-177
Contents

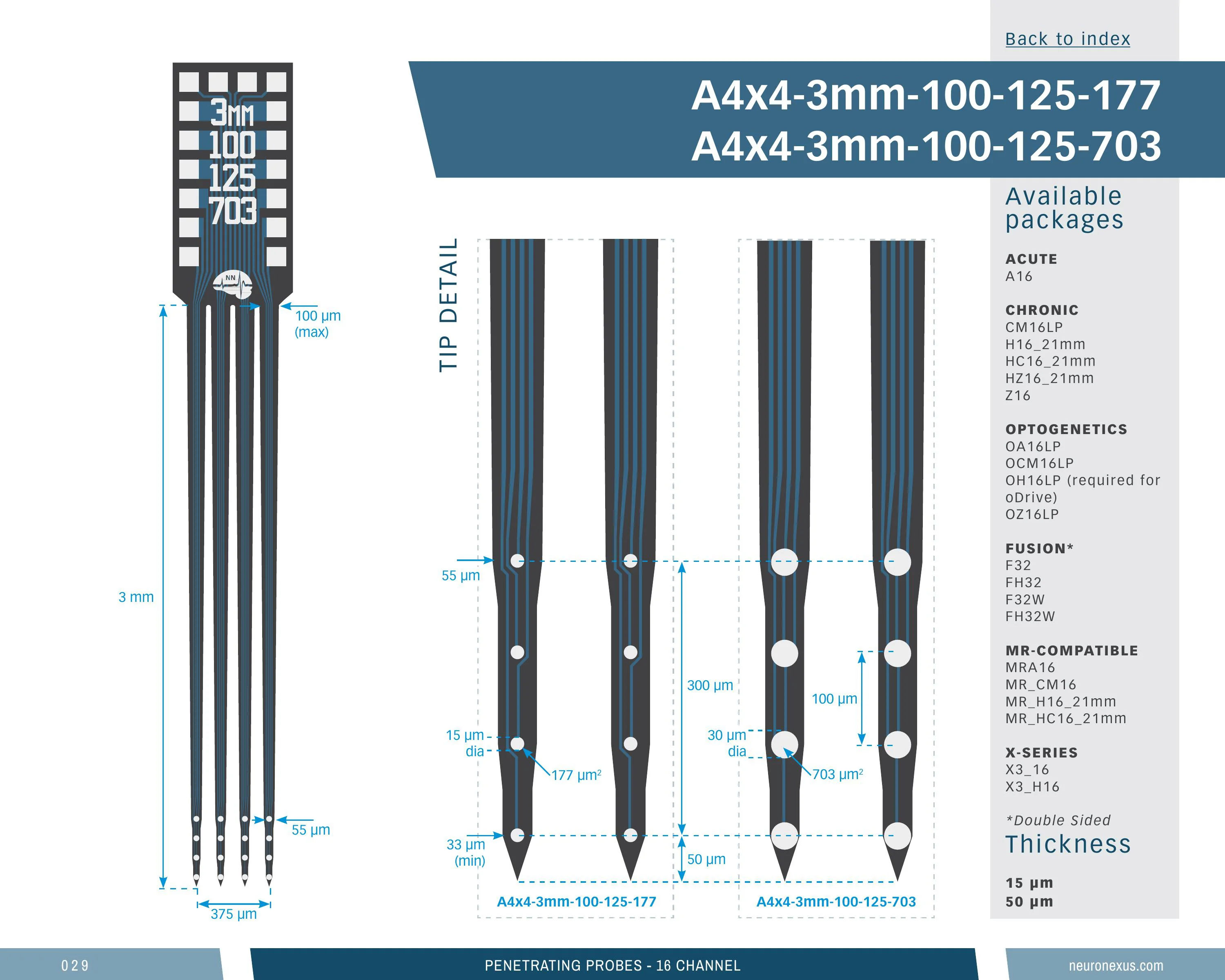

16-site A-Series probe, 4 shanks, 3 mm, 177 µm², 100 µm pitch

Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.31 mm-deep site array (18th percentile), 130 sites/mm² (38th percentile) and a 0.36 mm³ neural interface (21st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_3mm_100_125_177

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_100_125_177

13 specs

Channels16
Shanks4
Shank length3 mm
Shank separation125 µm
Site area177 µm²
Site pitch100 µm
Vertical span315 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.363 mm³ (higher than 21% of 369 designs)
Site coverage density130.3 sites/mm² (higher than 38% of 369 designs)
Brain coverage density44.1 sites/mm³ (higher than 47% of 369 designs)
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_100_125_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

50 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 3 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_3mm_100_125_177.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

50 of 50
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_100_125_177

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_100_125_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 24% of its family
Shank separation
0.125 mm
0.05 mm1.8 mm

Top 90% of catalog designs

Shank separation 0.125 mm — higher than 10% of catalog designs and 22% of its family
Maximum site depth
2.96 mm
0.972 mm51.29 mm

Top 86% of catalog designs

Maximum site depth 2.96 mm — higher than 14% of catalog designs and 14% of its family
Minimum site depth
2.64 mm
0.067 mm44.74 mm

Top 78% of catalog designs

Minimum site depth 2.64 mm — higher than 22% of catalog designs and 24% of its family
Span, x
0.39 mm
0.01 mm6.03 mm

Top 53% of catalog designs

Span, x 0.39 mm — higher than 47% of catalog designs and 47% of its family
Span, y
0.315 mm
0.01 mm10.55 mm

Top 82% of catalog designs

Span, y 0.315 mm — higher than 18% of catalog designs and 11% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.123 mm²
0.002 mm²28.74 mm²

Top 52% of catalog designs

Site outline area 0.123 mm² — higher than 48% of catalog designs and 48% of its family
Neural interface volume
0.363 mm³
0.149 mm³17.19 mm³

Top 79% of catalog designs

Neural interface volume 0.363 mm³ — higher than 21% of catalog designs and 13% of its family
Site coverage density
130.3 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 62% of catalog designs

Site coverage density 130.3 sites/mm² — higher than 38% of catalog designs and 41% of its family
Brain coverage density
44.13 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 53% of catalog designs

Brain coverage density 44.13 sites/mm³ — higher than 47% of catalog designs and 53% of its family
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_100_125_177

4 notes · Spending a fixed site budget · Geometry · Construction …
