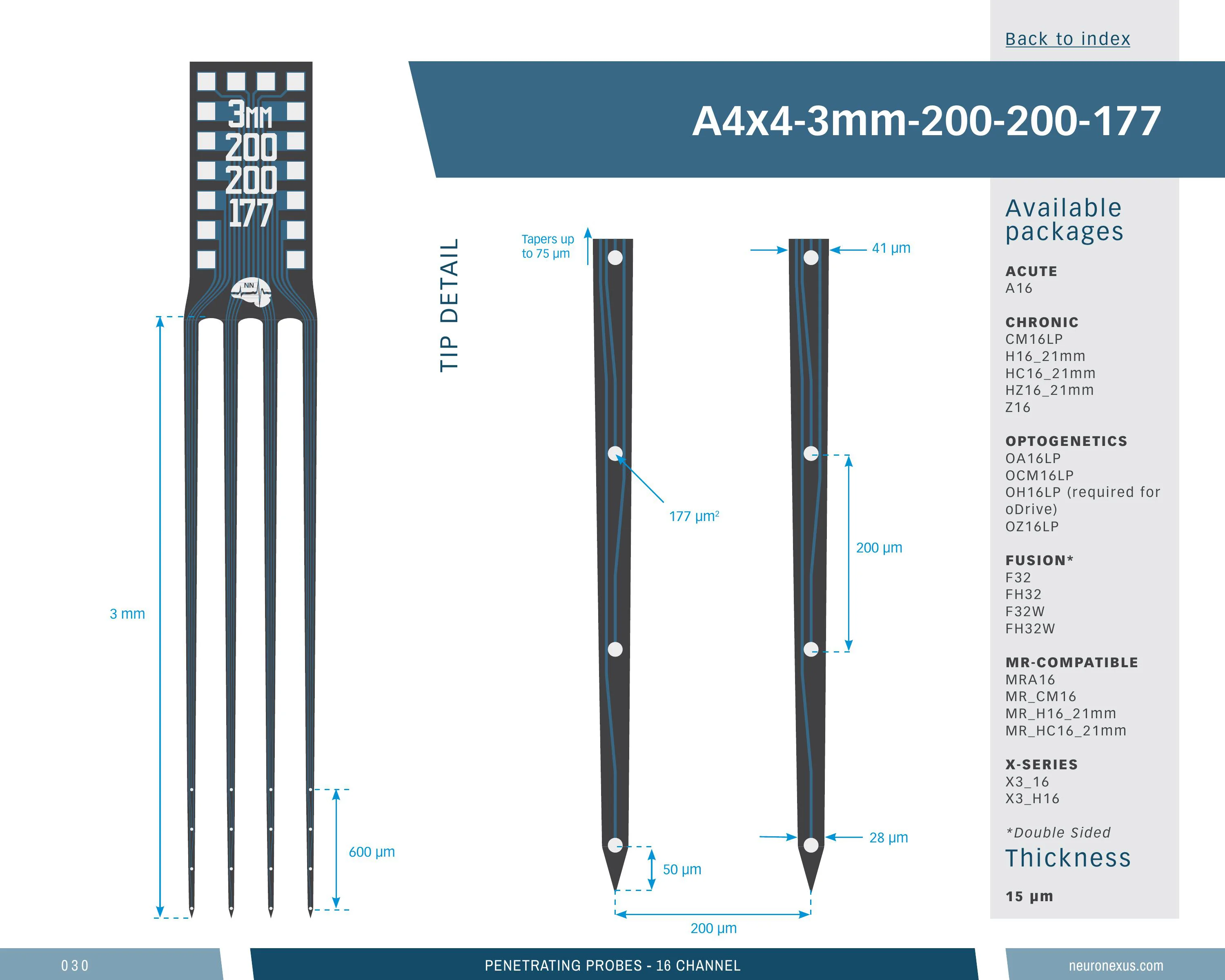

16-site A-Series probe, 4 shanks, 3 mm, 177 µm², 200 µm pitch
Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.61 mm-deep site array (33rd percentile), 42 sites/mm² (18th percentile) and a 0.62 mm³ neural interface (48th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 25 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a4x4_3mm_200_200_177
13 specs
| Channels | 16 |
|---|---|
| Shanks | 4 |
| Shank length | 3 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 200 µm |
| Vertical span | 615 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15 µm |
| Neural interface volume | 0.621 mm³ (higher than 48% of 369 designs) |
| Site coverage density | 42.3 sites/mm² (higher than 18% of 369 designs) |
| Brain coverage density | 25.7 sites/mm³ (higher than 20% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
25 options
Configure
Your selection
16-channel 4-shank silicon probe, 3 mm — 15 μm, A16
A16Options
25 of 25A16 — 16-ch
CM16LP — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose
CM16_DUAL — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
MRCM16LP — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OCM16LP — 16-ch Omnetics
H16 — 16-ch Omnetics
HC16 — 16-ch Omnetics
MRH16 — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
OA16LP — 16-ch
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
OZ16LP — 16-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 70% of catalog designs
Sites 16 — higher than 30% of catalog designs and 34% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 24% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 86% of catalog designs
Maximum site depth 2.96 mm — higher than 14% of catalog designs and 13% of its familyTop 81% of catalog designs
Minimum site depth 2.34 mm — higher than 19% of catalog designs and 21% of its familyTop 41% of catalog designs
Span, x 0.615 mm — higher than 59% of catalog designs and 62% of its familyTop 67% of catalog designs
Span, y 0.615 mm — higher than 33% of catalog designs and 24% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its familyTop 38% of catalog designs
Site outline area 0.378 mm² — higher than 62% of catalog designs and 58% of its familyTop 52% of catalog designs
Neural interface volume 0.621 mm³ — higher than 48% of catalog designs and 44% of its familyTop 82% of catalog designs
Site coverage density 42.32 sites/mm² — higher than 18% of catalog designs and 21% of its familyTop 80% of catalog designs
Brain coverage density 25.75 sites/mm³ — higher than 20% of catalog designs and 16% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
