Neural Probes · A-Series

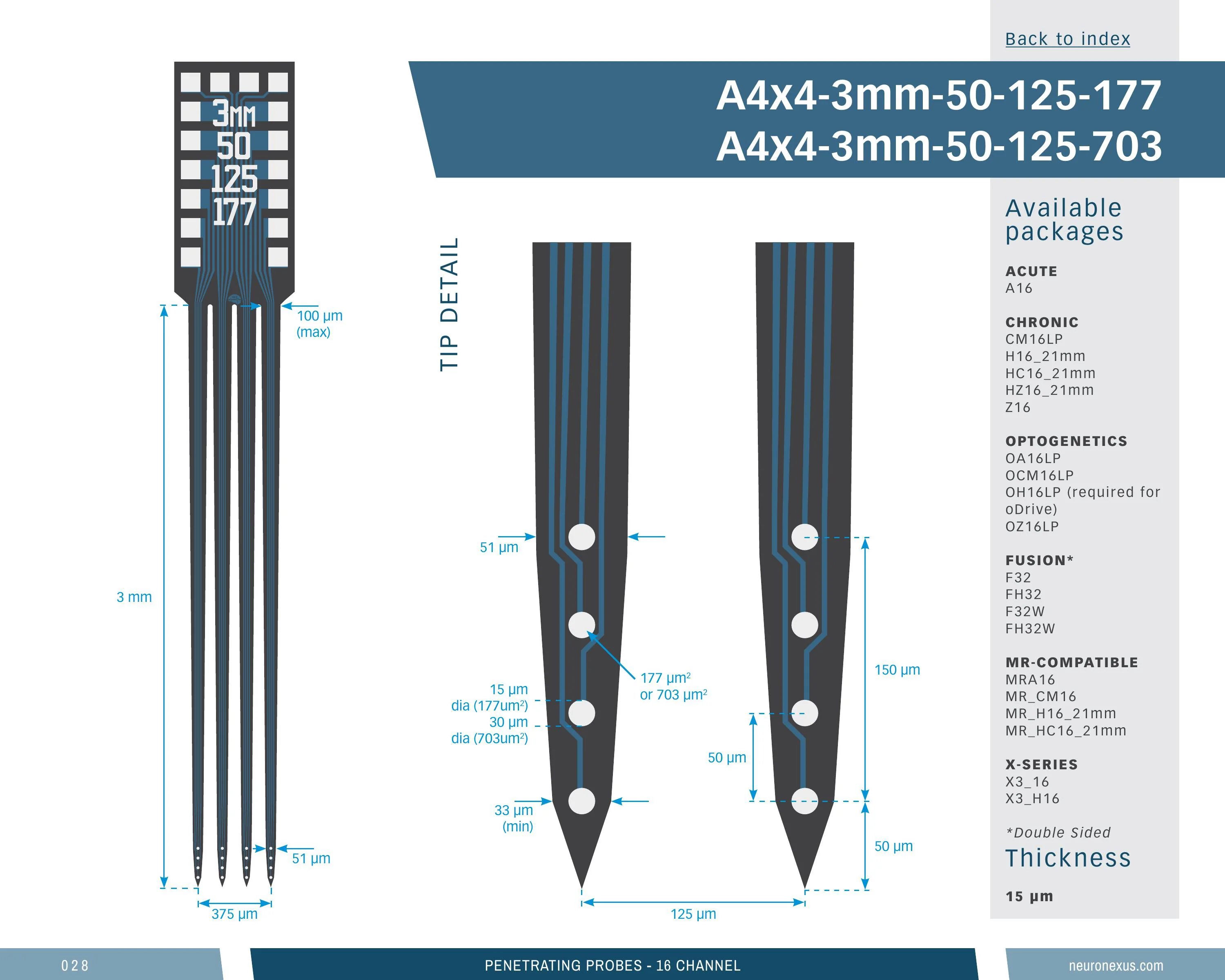

Linear 4-Shank 16-Channel Probe, 3 mm

16Sites
4Shanks
3mmShank Length
50µmSite Pitch
Part no.A4x4-3mm-50-125-703
Contents

16-site A-Series probe, 4 shanks, 3 mm, 703 µm², 50 µm pitch

Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.18 mm-deep site array (11th percentile), 220 sites/mm² (49th percentile) and a 0.31 mm³ neural interface (12th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_3mm_50_125_703

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

13 specs

Channels16
Shanks4
Shank length3 mm
Shank separation125 µm
Site area703 µm²
Site pitch50 µm
Vertical span180 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.308 mm³ (higher than 12% of 369 designs)
Site coverage density219.6 sites/mm² (higher than 49% of 369 designs)
Brain coverage density52.0 sites/mm³ (higher than 58% of 369 designs)
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

25 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 3 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_3mm_50_125_703.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

25 of 25
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
3 mm
1 mm60 mm

Top 80% of catalog designs

Shank length 3 mm — higher than 20% of catalog designs and 24% of its family
Shank separation
0.125 mm
0.05 mm1.8 mm

Top 90% of catalog designs

Shank separation 0.125 mm — higher than 10% of catalog designs and 22% of its family
Maximum site depth
2.96 mm
0.972 mm51.29 mm

Top 81% of catalog designs

Maximum site depth 2.96 mm — higher than 19% of catalog designs and 23% of its family
Minimum site depth
2.79 mm
0.067 mm44.74 mm

Top 76% of catalog designs

Minimum site depth 2.79 mm — higher than 24% of catalog designs and 27% of its family
Span, x
0.405 mm
0.01 mm6.03 mm

Top 51% of catalog designs

Span, x 0.405 mm — higher than 49% of catalog designs and 50% of its family
Span, y
0.18 mm
0.01 mm10.55 mm

Top 89% of catalog designs

Span, y 0.18 mm — higher than 11% of catalog designs and 8% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.073 mm²
0.002 mm²28.74 mm²

Top 60% of catalog designs

Site outline area 0.073 mm² — higher than 40% of catalog designs and 42% of its family
Neural interface volume
0.308 mm³
0.149 mm³17.19 mm³

Top 88% of catalog designs

Neural interface volume 0.308 mm³ — higher than 12% of catalog designs and 6% of its family
Site coverage density
219.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 51% of catalog designs

Site coverage density 219.6 sites/mm² — higher than 49% of catalog designs and 53% of its family
Brain coverage density
52.01 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 42% of catalog designs

Brain coverage density 52.01 sites/mm³ — higher than 58% of catalog designs and 67% of its family
Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 16-Channel Probe, 3 mmSKU prb_acl--a4x4_3mm_50_125_703

Cited in 2,342 publications (product line)
