Neural Probes · A-Series

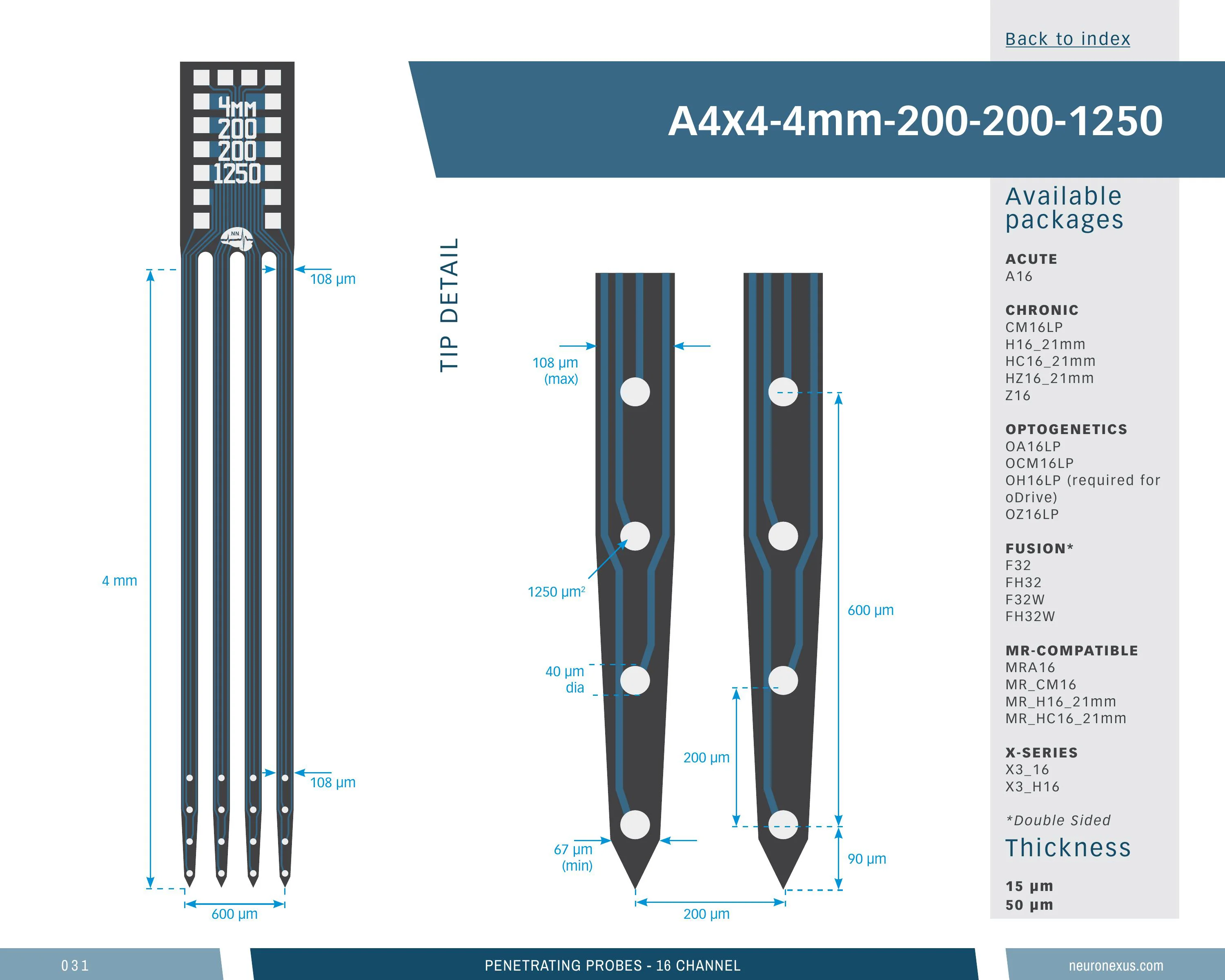

Linear 4-Shank 16-Channel Probe, 4 mm

16Sites
4Shanks
4mmShank Length
200µmSite Pitch
Part no.A4x4-4mm-200-200-1250
Contents

16-site A-Series probe, 4 shanks, 4 mm

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 4 mm shanks (22nd percentile of the 366 measured), a 0.64 mm-deep site array (35th percentile), 39 sites/mm² (16th percentile) and a 0.65 mm³ neural interface (51st percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 25 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_4mm_200_200_1250

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

13 specs

Channels16
Shanks4
Shank length4 mm
Shank separation200 µm
Site area1,250 µm²
Site pitch200 µm
Vertical span640 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.649 mm³ (higher than 51% of 369 designs)
Site coverage density39.1 sites/mm² (higher than 16% of 369 designs)
Brain coverage density24.6 sites/mm³ (higher than 18% of 369 designs)
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

50 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 (21 mm cable) — 16-ch Omnetics
HC16 (21 mm cable) — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 4 mm — 15 μm, A16
A16
Substrate Thickness: 15 μm
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_4mm_200_200_1250.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

50 of 50
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
4 mm
1 mm60 mm

Top 78% of catalog designs

Shank length 4 mm — higher than 22% of catalog designs and 27% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
3.93 mm
0.972 mm51.29 mm

Top 78% of catalog designs

Maximum site depth 3.93 mm — higher than 22% of catalog designs and 26% of its family
Minimum site depth
3.29 mm
0.067 mm44.74 mm

Top 70% of catalog designs

Minimum site depth 3.29 mm — higher than 30% of catalog designs and 35% of its family
Span, x
0.64 mm
0.01 mm6.03 mm

Top 35% of catalog designs

Span, x 0.64 mm — higher than 65% of catalog designs and 69% of its family
Span, y
0.64 mm
0.01 mm10.55 mm

Top 65% of catalog designs

Span, y 0.64 mm — higher than 35% of catalog designs and 28% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
0.409 mm²
0.002 mm²28.74 mm²

Top 36% of catalog designs

Site outline area 0.409 mm² — higher than 64% of catalog designs and 62% of its family
Neural interface volume
0.649 mm³
0.149 mm³17.19 mm³

Top 49% of catalog designs

Neural interface volume 0.649 mm³ — higher than 51% of catalog designs and 48% of its family
Site coverage density
39.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 84% of catalog designs

Site coverage density 39.1 sites/mm² — higher than 16% of catalog designs and 17% of its family
Brain coverage density
24.64 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 82% of catalog designs

Brain coverage density 24.64 sites/mm³ — higher than 18% of catalog designs and 13% of its family
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_200_1250

Cited in 2,342 publications (product line)
