Neural Probes · A-Series

Linear 4-Shank 16-Channel Probe, 4 mm

16Sites
4Shanks
4mmShank Length
200µmSite Pitch
Part no.A4x4-4mm-200-373-var
Contact us to order
Contents

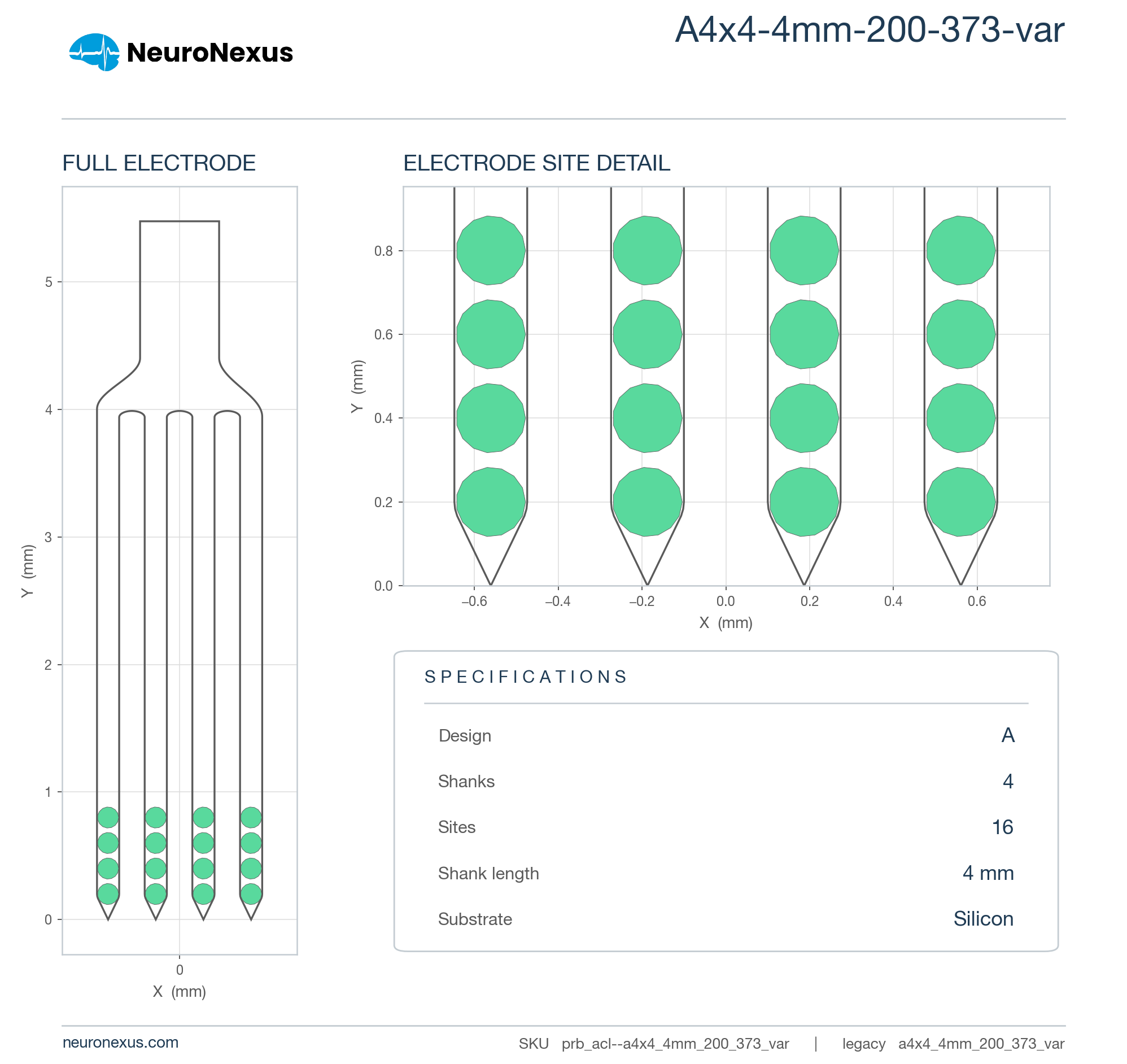

16-channel 4-shank silicon probe, 4 mm

16-channel silicon probe — 4 shanks carrying linear sites (200 µm pitch) on 4 mm shanks. Sites spread along the shank in a linear or edge layout, for laminar and depth profiling. Shank length suits mouse and rat preparations.

Also known as

a4x4_4mm_200_373_var

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

11 specs

Channels16
Shanks4
Shank length4 mm
Site pitch200 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.130 mm³ (higher than 77% of 369 designs)
Site coverage density16.3 sites/mm² (higher than 5% of 369 designs)
Brain coverage density14.2 sites/mm³ (higher than 6% of 369 designs)
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

Narrow the options with the filters or pick a card, then contact us to order that configuration.

3 options

Configure

Compatible Package
All
A16 — 16-ch
HZ16 (21 mm cable) — 16-ch Hirose
X3_16 — 16-ch Molex

Your selection

16-channel 4-shank silicon probe, 4 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_4mm_200_373_var.15um.a16

Options

3 of 3
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
4 mm
1 mm60 mm

Top 78% of catalog designs

Shank length 4 mm — higher than 22% of catalog designs and 27% of its family
Maximum site depth
3.88 mm
0.972 mm51.29 mm

Top 79% of catalog designs

Maximum site depth 3.88 mm — higher than 21% of catalog designs and 26% of its family
Minimum site depth
3.12 mm
0.067 mm44.74 mm

Top 70% of catalog designs

Minimum site depth 3.12 mm — higher than 30% of catalog designs and 34% of its family
Span, x
1.29 mm
0.01 mm6.03 mm

Top 16% of catalog designs

Span, x 1.29 mm — higher than 84% of catalog designs and 79% of its family
Span, y
0.765 mm
0.01 mm10.55 mm

Top 58% of catalog designs

Span, y 0.765 mm — higher than 42% of catalog designs and 34% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
0.984 mm²
0.002 mm²28.74 mm²

Top 18% of catalog designs

Site outline area 0.984 mm² — higher than 82% of catalog designs and 84% of its family
Neural interface volume
1.13 mm³
0.149 mm³17.19 mm³

Top 23% of catalog designs

Neural interface volume 1.13 mm³ — higher than 77% of catalog designs and 82% of its family
Site coverage density
16.27 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 95% of catalog designs

Site coverage density 16.27 sites/mm² — higher than 5% of catalog designs and 3% of its family
Brain coverage density
14.17 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 94% of catalog designs

Brain coverage density 14.17 sites/mm³ — higher than 6% of catalog designs and 3% of its family
Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

3 notes · Geometry · Construction · Packaging and connector options

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 16-Channel Probe, 4 mmSKU prb_acl--a4x4_4mm_200_373_var

Cited in 2,342 publications (product line)
