Neural Probes · A-Series

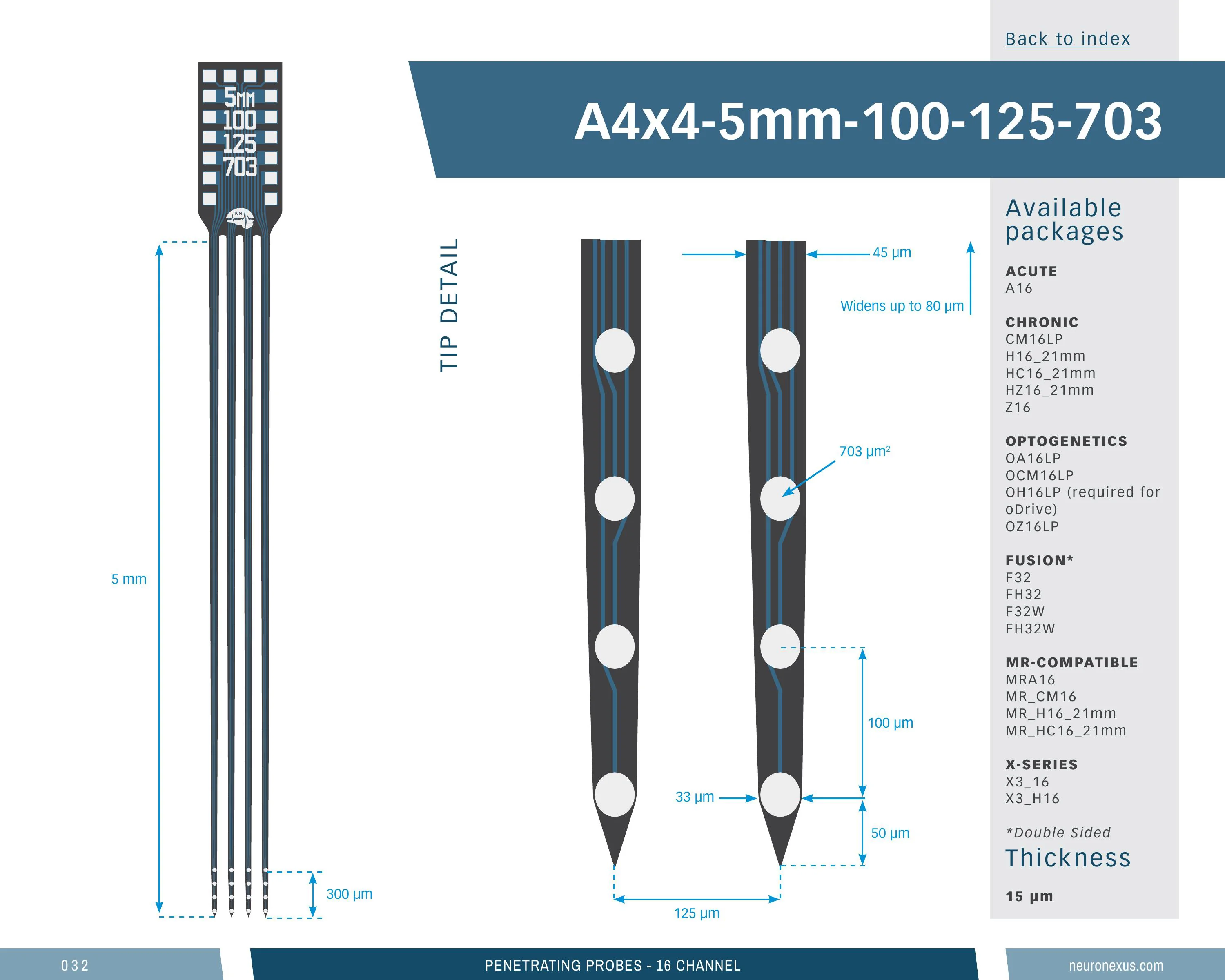

Linear 4-Shank 16-Channel Probe, 5 mm

16Sites
4Shanks
5mmShank Length
100µmSite Pitch
Part no.A4x4-5mm-100-125-703
Contents

16-site A-Series probe, 4 shanks, 5 mm

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the lower quartile: 16 sites (a common choice — 84 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.33 mm-deep site array (19th percentile), 120 sites/mm² (36th percentile) and a 0.38 mm³ neural interface (22nd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 25 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x4_5mm_100_125_703

Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

13 specs

Channels16
Shanks4
Shank length5 mm
Shank separation125 µm
Site area703 µm²
Site pitch100 µm
Vertical span330 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.375 mm³ (higher than 22% of 369 designs)
Site coverage density119.9 sites/mm² (higher than 36% of 369 designs)
Brain coverage density42.6 sites/mm³ (higher than 45% of 369 designs)
Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

25 options

Configure

Compatible Package
All
A16 — 16-ch
CM16_DUAL — 16-ch Omnetics
CM16LP — 16-ch Omnetics
CM32_DUAL16 — 32-ch Omnetics
F32 — 32-ch Omnetics
F32W — 32-ch Omnetics
FH32 — 32-ch Omnetics
FH32W — 32-ch Omnetics
H16 — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 (21 mm cable) — 16-ch Hirose
IVA16 — 16-ch
MRA16 — 16-ch
MRCM16LP — 16-ch Omnetics
MRH16 — 16-ch Omnetics
MROCM16LP — 16-ch Omnetics
MROCM16LP_V2 — 16-ch Omnetics
OA16LP — 16-ch
OCM16LP — 16-ch Omnetics
OH16LP — 16-ch Omnetics
OHZ16LP — 16-ch Hirose
OZ16LP — 16-ch Hirose
X3_16 — 16-ch Molex
X3_H16 (21 mm cable) — 16-ch Molex
Z16 — 16-ch Hirose

Your selection

16-channel 4-shank silicon probe, 5 mm — 15 μm, A16
A16
Compatible Package: A16 — 16-ch
SKUprb_acl--a4x4_5mm_100_125_703.15um.a16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

25 of 25
Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

Loading the compatible products…

Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs

Sites 16 — higher than 30% of catalog designs and 34% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.125 mm
0.05 mm1.8 mm

Top 90% of catalog designs

Shank separation 0.125 mm — higher than 10% of catalog designs and 22% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 56% of catalog designs

Maximum site depth 4.96 mm — higher than 44% of catalog designs and 55% of its family
Minimum site depth
4.64 mm
0.067 mm44.74 mm

Top 43% of catalog designs

Minimum site depth 4.64 mm — higher than 57% of catalog designs and 69% of its family
Span, x
0.405 mm
0.01 mm6.03 mm

Top 51% of catalog designs

Span, x 0.405 mm — higher than 49% of catalog designs and 49% of its family
Span, y
0.33 mm
0.01 mm10.55 mm

Top 81% of catalog designs

Span, y 0.33 mm — higher than 19% of catalog designs and 12% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.133 mm²
0.002 mm²28.74 mm²

Top 50% of catalog designs

Site outline area 0.133 mm² — higher than 50% of catalog designs and 49% of its family
Neural interface volume
0.375 mm³
0.149 mm³17.19 mm³

Top 78% of catalog designs

Neural interface volume 0.375 mm³ — higher than 22% of catalog designs and 15% of its family
Site coverage density
119.9 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 64% of catalog designs

Site coverage density 119.9 sites/mm² — higher than 36% of catalog designs and 39% of its family
Brain coverage density
42.63 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 55% of catalog designs

Brain coverage density 42.63 sites/mm³ — higher than 45% of catalog designs and 50% of its family
Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 16-Channel Probe, 5 mmSKU prb_acl--a4x4_5mm_100_125_703

Cited in 2,342 publications (product line)
