Neural Probes · A-Series

Linear 4-Shank 32-Channel Probe, 10 mm

32Sites
4Shanks
10mmShank Length
200µmSite Pitch
Part no.A4x8-10mm200-500-177
Contact us to order
Contents

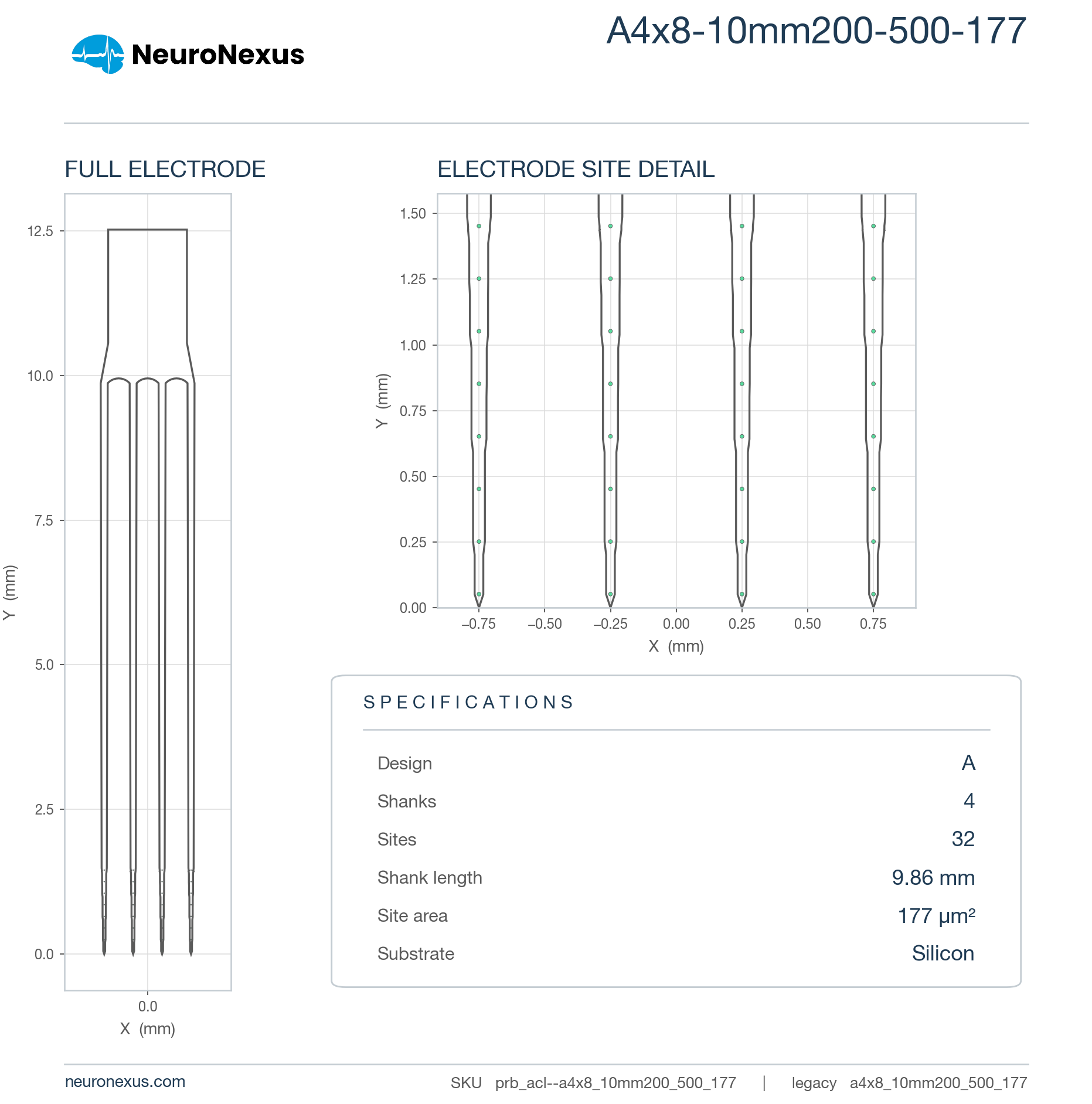

32-site A-Series probe, 4 shanks, 10 mm, 200 µm pitch

Four long shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.41 mm-deep site array (61st percentile), 15 sites/mm² (4th percentile) and a 1.93 mm³ neural interface (91st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 10 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a4x8_10mm200_500_177

Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

12 specs

Channels32
Shanks4
Shank length10 mm
Site area177 µm²
Site pitch200 µm
Vertical span1415 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.929 mm³ (higher than 91% of 369 designs)
Site coverage density14.9 sites/mm² (higher than 4% of 369 designs)
Brain coverage density16.6 sites/mm³ (higher than 8% of 369 designs)
Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

10 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HP32_21MM — 32-ch
HZ32 (21 mm cable) — 32-ch Hirose
MRCM32 — 32-ch
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 10 mm — 15 μm, A32
A32
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a4x8_10mm200_500_177.15um.a32

Options

10 of 10
Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 94% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 25% of catalog designs

Maximum site depth 9.96 mm — higher than 75% of catalog designs and 79% of its family
Minimum site depth
8.54 mm
0.067 mm44.74 mm

Top 19% of catalog designs

Minimum site depth 8.54 mm — higher than 81% of catalog designs and 89% of its family
Span, x
1.51 mm
0.01 mm6.03 mm

Top 9% of catalog designs

Span, x 1.51 mm — higher than 91% of catalog designs and 89% of its family
Span, y
1.41 mm
0.01 mm10.55 mm

Top 39% of catalog designs

Span, y 1.41 mm — higher than 61% of catalog designs and 56% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
2.14 mm²
0.002 mm²28.74 mm²

Top 8% of catalog designs

Site outline area 2.14 mm² — higher than 92% of catalog designs and 95% of its family
Neural interface volume
1.93 mm³
0.149 mm³17.19 mm³

Top 9% of catalog designs

Neural interface volume 1.93 mm³ — higher than 91% of catalog designs and 94% of its family
Site coverage density
14.93 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 96% of catalog designs

Site coverage density 14.93 sites/mm² — higher than 4% of catalog designs and 2% of its family
Brain coverage density
16.59 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 92% of catalog designs

Brain coverage density 16.59 sites/mm³ — higher than 8% of catalog designs and 6% of its family
Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 32-Channel Probe, 10 mmSKU prb_acl--a4x8_10mm200_500_177

Cited in 2,342 publications (product line)
