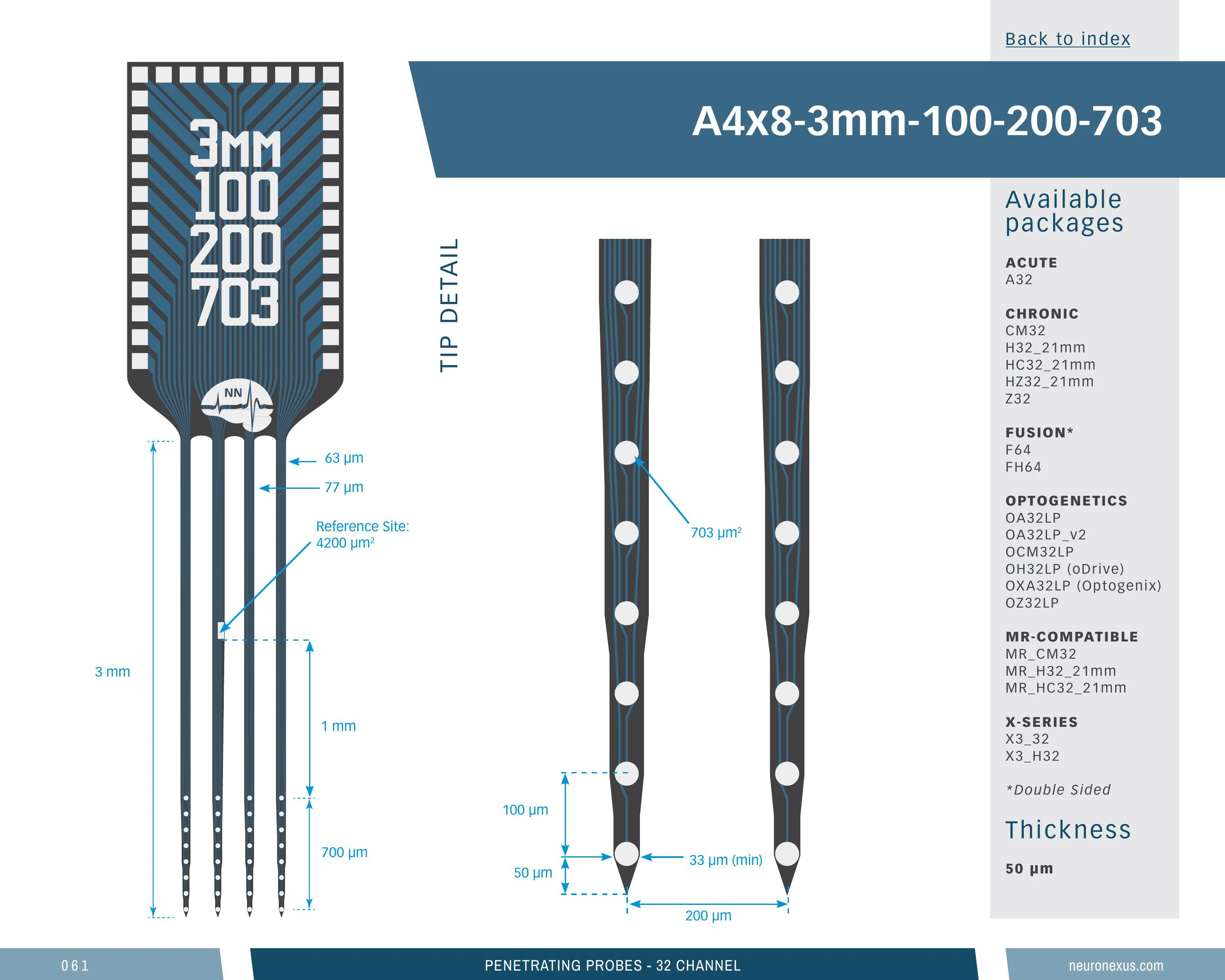

Linear 4-Shank 32-Channel Probe, 3 mm
32-site A-Series probe, 4 shanks, 3 mm, 703 µm²
Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 3 mm shanks (a common choice — 39 of 366), a 0.73 mm-deep site array (40th percentile), 70 sites/mm² (27th percentile) and a 0.69 mm³ neural interface (55th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a4x8_3mm_100_200_703
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 3 mm |
| Shank separation | 200 µm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 730 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.695 mm³ (higher than 55% of 369 designs) |
| Site coverage density | 69.6 sites/mm² (higher than 27% of 369 designs) |
| Brain coverage density | 46.1 sites/mm³ (higher than 49% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
24 options
Configure
Your selection
32-channel 4-shank silicon probe, 3 mm — 50 μm, A32
A32Options
24 of 24A32 — 32-ch Samtec
H32 (21 mm cable) — 32-ch Omnetics
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
CM32 — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 — 32-ch Hirose
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OXA32LP — 32-ch Samtec
MROCM32LP — 32-ch Omnetics
OCM32LP — 32-ch Omnetics
OXCM32LP — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
MRCM16PB32 — 16-ch
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
Z32 — 32-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 80% of catalog designs
Shank length 3 mm — higher than 20% of catalog designs and 24% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 83% of catalog designs
Maximum site depth 2.96 mm — higher than 17% of catalog designs and 21% of its familyTop 82% of catalog designs
Minimum site depth 2.23 mm — higher than 18% of catalog designs and 20% of its familyTop 37% of catalog designs
Span, x 0.63 mm — higher than 63% of catalog designs and 67% of its familyTop 60% of catalog designs
Span, y 0.73 mm — higher than 40% of catalog designs and 33% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 31% of catalog designs
Site outline area 0.46 mm² — higher than 69% of catalog designs and 68% of its familyTop 45% of catalog designs
Neural interface volume 0.695 mm³ — higher than 55% of catalog designs and 53% of its familyTop 73% of catalog designs
Site coverage density 69.63 sites/mm² — higher than 27% of catalog designs and 28% of its familyTop 51% of catalog designs
Brain coverage density 46.07 sites/mm³ — higher than 49% of catalog designs and 54% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
