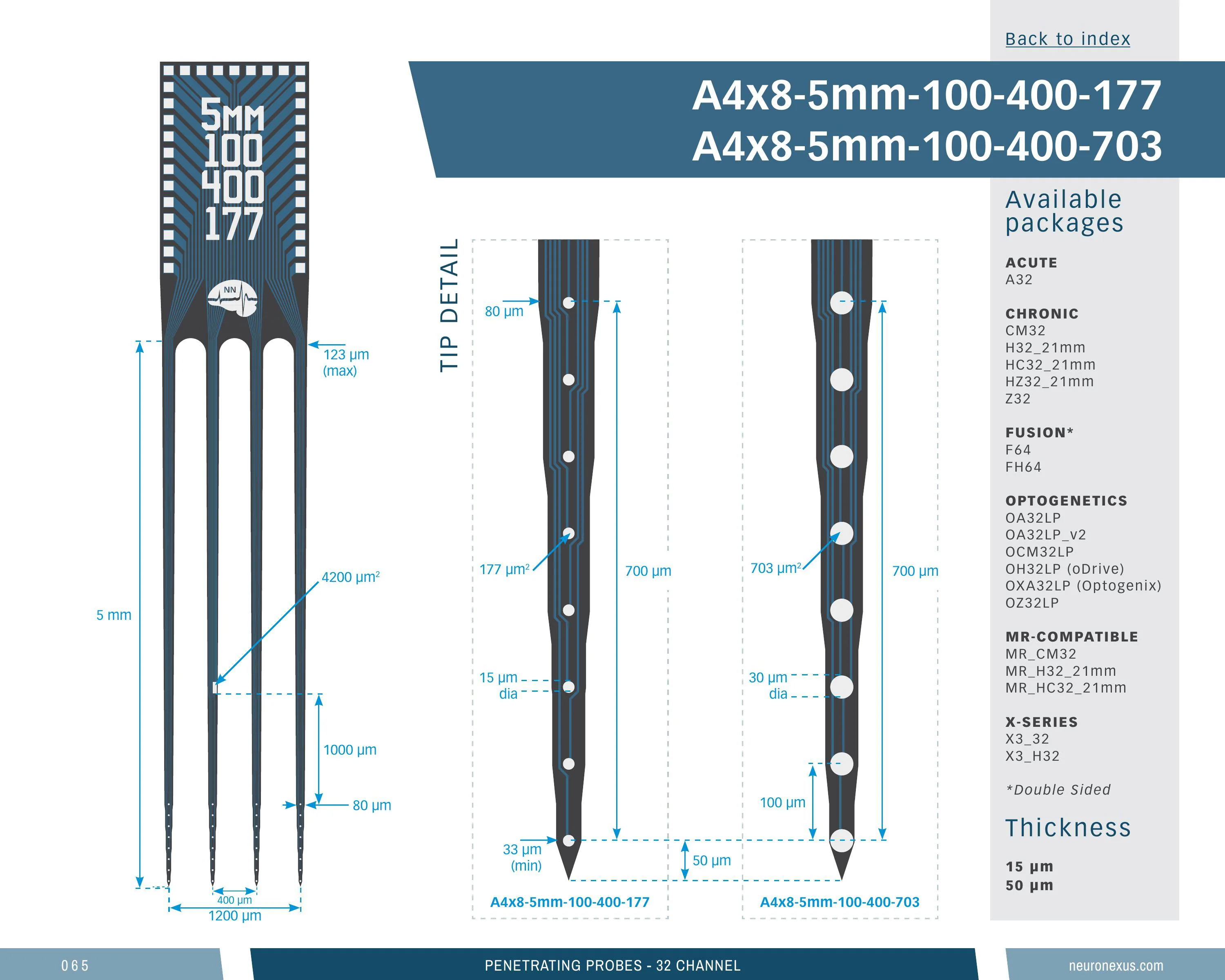

32-site A-Series probe, 4 shanks, 5 mm, 177 µm², 100 µm pitch, 400 µm apart
Four mid-length shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.71 mm-deep site array (37th percentile), 37 sites/mm² (15th percentile) and a 1.04 mm³ neural interface (73rd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a4x8_5mm_100_400_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 400 µm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 715 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.042 mm³ (higher than 73% of 369 designs) |
| Site coverage density | 36.8 sites/mm² (higher than 15% of 369 designs) |
| Brain coverage density | 30.7 sites/mm³ (higher than 27% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · MRCM32 — 32-ch
15 μm · OA32LP — 32-ch Samtec
15 μm · OCM32LP — 32-ch Omnetics
15 μm · OH32LP (21 mm cable) — 32-ch Omnetics
15 μm · OZ32LP — 32-ch Hirose
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · MRCM32 — 32-ch
50 μm · OA32LP — 32-ch Samtec
50 μm · OCM32LP — 32-ch Omnetics
50 μm · OH32LP (21 mm cable) — 32-ch Omnetics
50 μm · OZ32LP — 32-ch Hirose
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 11% of catalog designs
Shank separation 0.4 mm — higher than 89% of catalog designs and 86% of its familyTop 70% of catalog designs
Maximum site depth 4.96 mm — higher than 30% of catalog designs and 31% of its familyTop 54% of catalog designs
Minimum site depth 4.24 mm — higher than 46% of catalog designs and 57% of its familyTop 20% of catalog designs
Span, x 1.21 mm — higher than 80% of catalog designs and 76% of its familyTop 63% of catalog designs
Span, y 0.715 mm — higher than 37% of catalog designs and 29% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 21% of catalog designs
Site outline area 0.869 mm² — higher than 79% of catalog designs and 79% of its familyTop 27% of catalog designs
Neural interface volume 1.04 mm³ — higher than 73% of catalog designs and 75% of its familyTop 85% of catalog designs
Site coverage density 36.84 sites/mm² — higher than 15% of catalog designs and 17% of its familyTop 73% of catalog designs
Brain coverage density 30.72 sites/mm³ — higher than 27% of catalog designs and 28% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
