Linear 4-Shank 32-Channel Probe, 5 mm

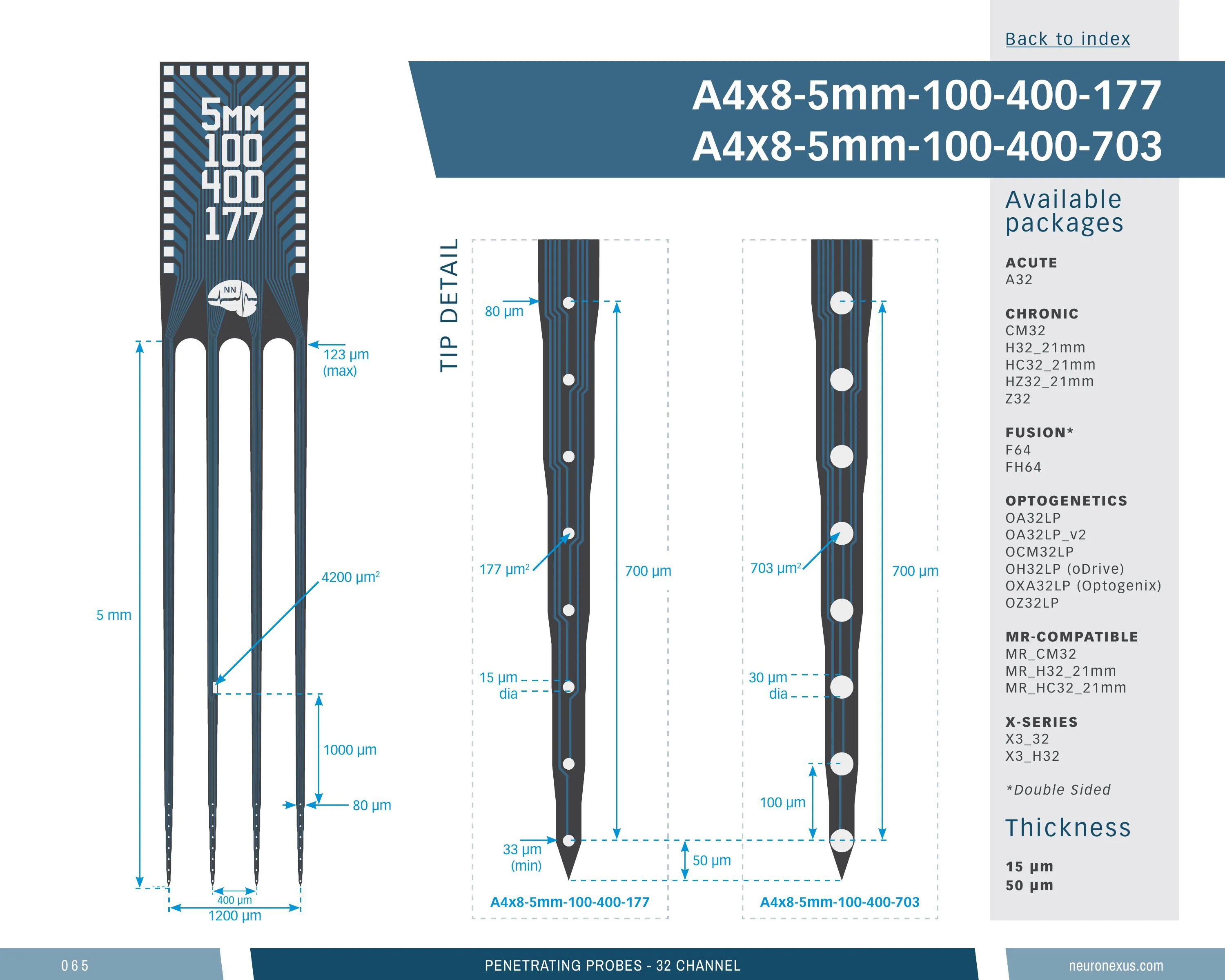

32-site A-Series probe, 4 shanks, 5 mm, 703 µm², 100 µm pitch, 400 µm apart
Four mid-length shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.73 mm-deep site array (40th percentile), 36 sites/mm² (14th percentile) and a 1.06 mm³ neural interface (74th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 25 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a4x8_5mm_100_400_703 · a4x8_5mm_100_400_70
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 400 µm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 730 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.064 mm³ (higher than 74% of 369 designs) |
| Site coverage density | 35.7 sites/mm² (higher than 14% of 369 designs) |
| Brain coverage density | 30.1 sites/mm³ (higher than 25% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
50 options
Configure
Your selection
32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32Options
50 of 5015 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · H32 (30 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRH32 (21 mm cable) — 32-ch Omnetics
15 μm · MRCM32 — 32-ch
15 μm · OA32LP — 32-ch Samtec
15 μm · OCM32LP — 32-ch Omnetics
15 μm · OH32LP (21 mm cable) — 32-ch Omnetics
15 μm · OZ32LP — 32-ch Hirose
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · H32 (30 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRH32 (21 mm cable) — 32-ch Omnetics
50 μm · MRCM32 — 32-ch
50 μm · OA32LP — 32-ch Samtec
50 μm · OCM32LP — 32-ch Omnetics
50 μm · OH32LP (21 mm cable) — 32-ch Omnetics
50 μm · OZ32LP — 32-ch Hirose
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 11% of catalog designs
Shank separation 0.4 mm — higher than 89% of catalog designs and 86% of its familyTop 57% of catalog designs
Maximum site depth 4.96 mm — higher than 43% of catalog designs and 53% of its familyTop 55% of catalog designs
Minimum site depth 4.23 mm — higher than 45% of catalog designs and 56% of its familyTop 17% of catalog designs
Span, x 1.23 mm — higher than 83% of catalog designs and 78% of its familyTop 60% of catalog designs
Span, y 0.73 mm — higher than 40% of catalog designs and 33% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 20% of catalog designs
Site outline area 0.897 mm² — higher than 80% of catalog designs and 82% of its familyTop 26% of catalog designs
Neural interface volume 1.06 mm³ — higher than 74% of catalog designs and 76% of its familyTop 86% of catalog designs
Site coverage density 35.66 sites/mm² — higher than 14% of catalog designs and 13% of its familyTop 75% of catalog designs
Brain coverage density 30.09 sites/mm³ — higher than 25% of catalog designs and 24% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
