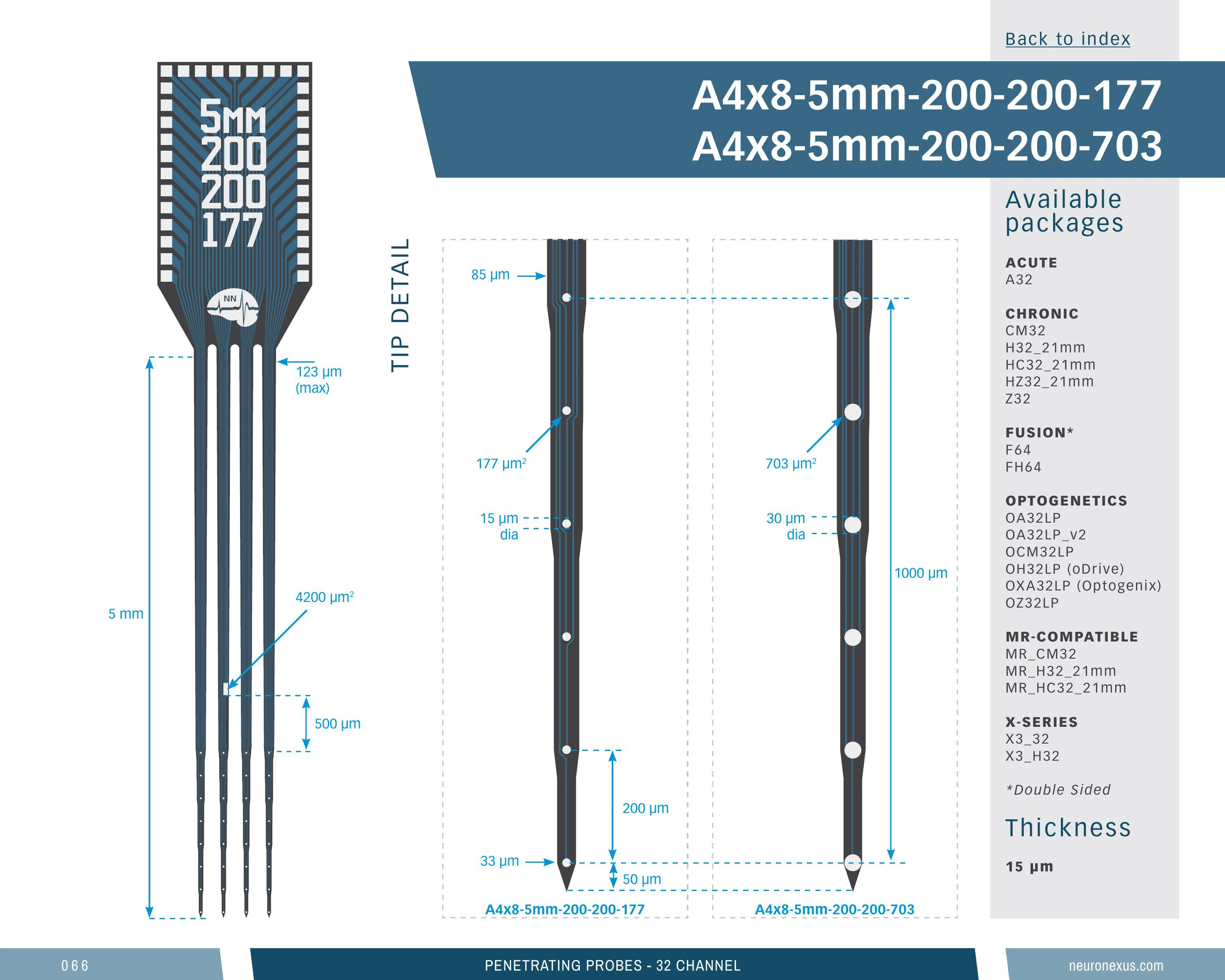

32-site A-Series probe, 4 shanks, 5 mm, 177 µm², 200 µm pitch, 200 µm apart
Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.42 mm-deep site array (62nd percentile), 37 sites/mm² (15th percentile) and a 1.07 mm³ neural interface (75th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a4x8_5mm_200_200_177
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 5 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 200 µm |
| Vertical span | 1415 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.068 mm³ (higher than 75% of 369 designs) |
| Site coverage density | 36.8 sites/mm² (higher than 15% of 369 designs) |
| Brain coverage density | 30.0 sites/mm³ (higher than 24% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · H32 (21 mm cable) — 32-ch Omnetics
15 μm · HC32 (21 mm cable) — 32-ch Omnetics
15 μm · HZ32 (21 mm cable) — 32-ch Hirose
15 μm · MRCM32 — 32-ch
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · Z32 — 32-ch Hirose
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · H32 (21 mm cable) — 32-ch Omnetics
50 μm · HC32 (21 mm cable) — 32-ch Omnetics
50 μm · HZ32 (21 mm cable) — 32-ch Hirose
50 μm · MRCM32 — 32-ch
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · Z32 — 32-ch Hirose
15 μm · MRH32 — 32-ch Omnetics
50 μm · MRH32 — 32-ch Omnetics
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OH32LP — 32-ch Omnetics
50 μm · OH32LP — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP — 32-ch Samtec
50 μm · OA32LP — 32-ch Samtec
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OCM32LP — 32-ch Omnetics
50 μm · OCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
15 μm · OZ32LP — 32-ch Hirose
50 μm · OZ32LP — 32-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 62% of catalog designs
Maximum site depth 4.96 mm — higher than 38% of catalog designs and 46% of its familyTop 64% of catalog designs
Minimum site depth 3.54 mm — higher than 36% of catalog designs and 46% of its familyTop 40% of catalog designs
Span, x 0.615 mm — higher than 60% of catalog designs and 64% of its familyTop 38% of catalog designs
Span, y 1.42 mm — higher than 62% of catalog designs and 58% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its familyTop 21% of catalog designs
Site outline area 0.87 mm² — higher than 79% of catalog designs and 81% of its familyTop 25% of catalog designs
Neural interface volume 1.07 mm³ — higher than 75% of catalog designs and 77% of its familyTop 85% of catalog designs
Site coverage density 36.77 sites/mm² — higher than 15% of catalog designs and 16% of its familyTop 76% of catalog designs
Brain coverage density 29.97 sites/mm³ — higher than 24% of catalog designs and 23% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
