Neural Probes · A-Series

Linear 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
50µmSite Pitch
Part no.A4x8-5mm-50-200-177
Contents

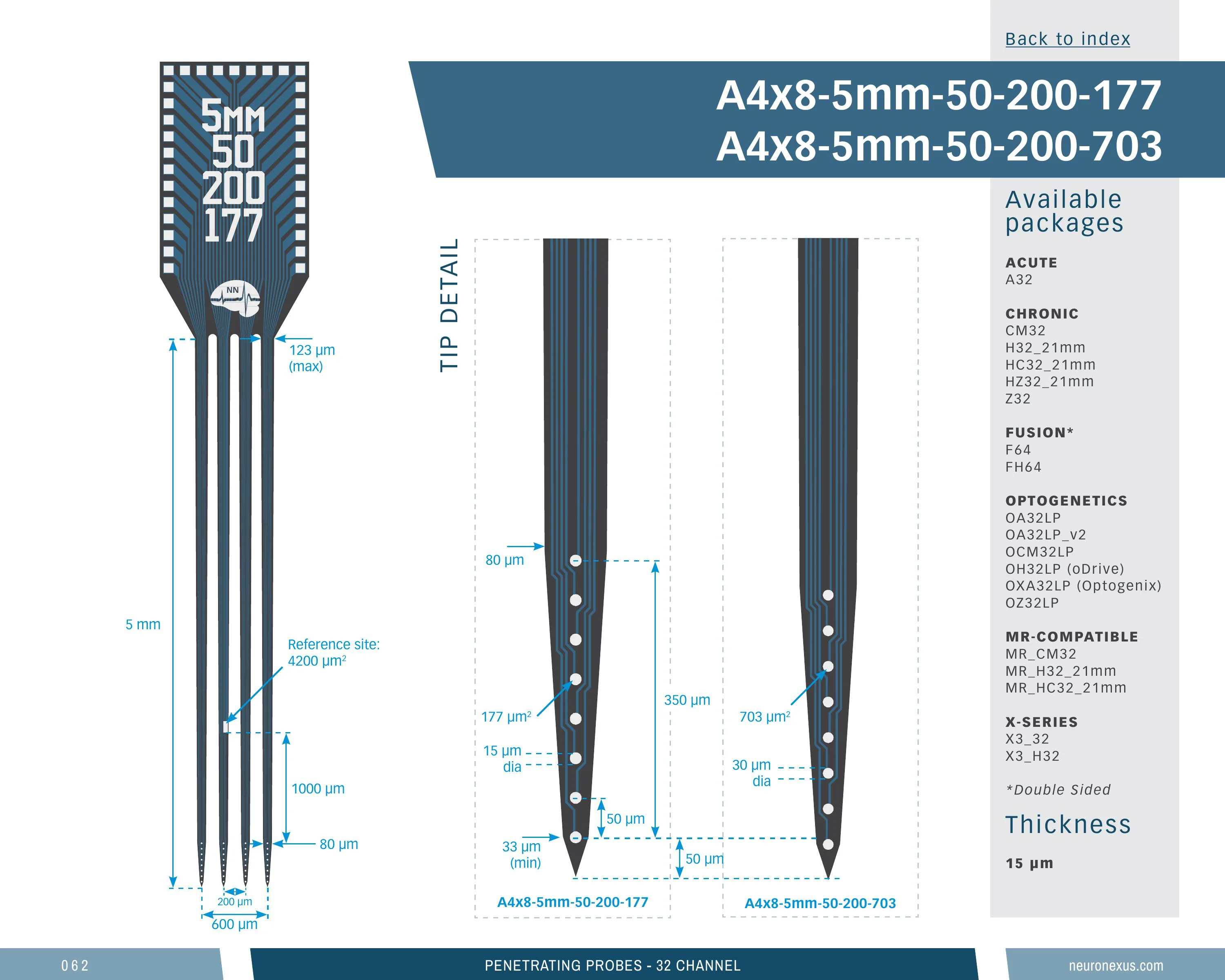

32-site A-Series probe, 4 shanks, 5 mm, 177 µm², 50 µm pitch, 200 µm apart

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.36 mm-deep site array (22nd percentile), 143 sites/mm² (41st percentile) and a 0.48 mm³ neural interface (30th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 1 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x8_5mm_50_200_177

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_177

13 specs

Channels32
Shanks4
Shank length5 mm
Shank separation200 µm
Site area177 µm²
Site pitch50 µm
Vertical span365 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.482 mm³ (higher than 30% of 369 designs)
Site coverage density142.6 sites/mm² (higher than 41% of 369 designs)
Brain coverage density66.4 sites/mm³ (higher than 72% of 369 designs)
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 (21 mm cable) — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP (21 mm cable) — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a4x8_5mm_50_200_177.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 32% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 68% of catalog designs

Maximum site depth 4.96 mm — higher than 32% of catalog designs and 35% of its family
Minimum site depth
4.59 mm
0.067 mm44.74 mm

Top 45% of catalog designs

Minimum site depth 4.59 mm — higher than 55% of catalog designs and 68% of its family
Span, x
0.615 mm
0.01 mm6.03 mm

Top 41% of catalog designs

Span, x 0.615 mm — higher than 59% of catalog designs and 63% of its family
Span, y
0.365 mm
0.01 mm10.55 mm

Top 78% of catalog designs

Span, y 0.365 mm — higher than 22% of catalog designs and 14% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.224 mm²
0.002 mm²28.74 mm²

Top 46% of catalog designs

Site outline area 0.224 mm² — higher than 54% of catalog designs and 53% of its family
Neural interface volume
0.482 mm³
0.149 mm³17.19 mm³

Top 70% of catalog designs

Neural interface volume 0.482 mm³ — higher than 30% of catalog designs and 21% of its family
Site coverage density
142.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 59% of catalog designs

Site coverage density 142.6 sites/mm² — higher than 41% of catalog designs and 47% of its family
Brain coverage density
66.37 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 28% of catalog designs

Brain coverage density 66.37 sites/mm³ — higher than 72% of catalog designs and 81% of its family
