Neural Probes · A-Series

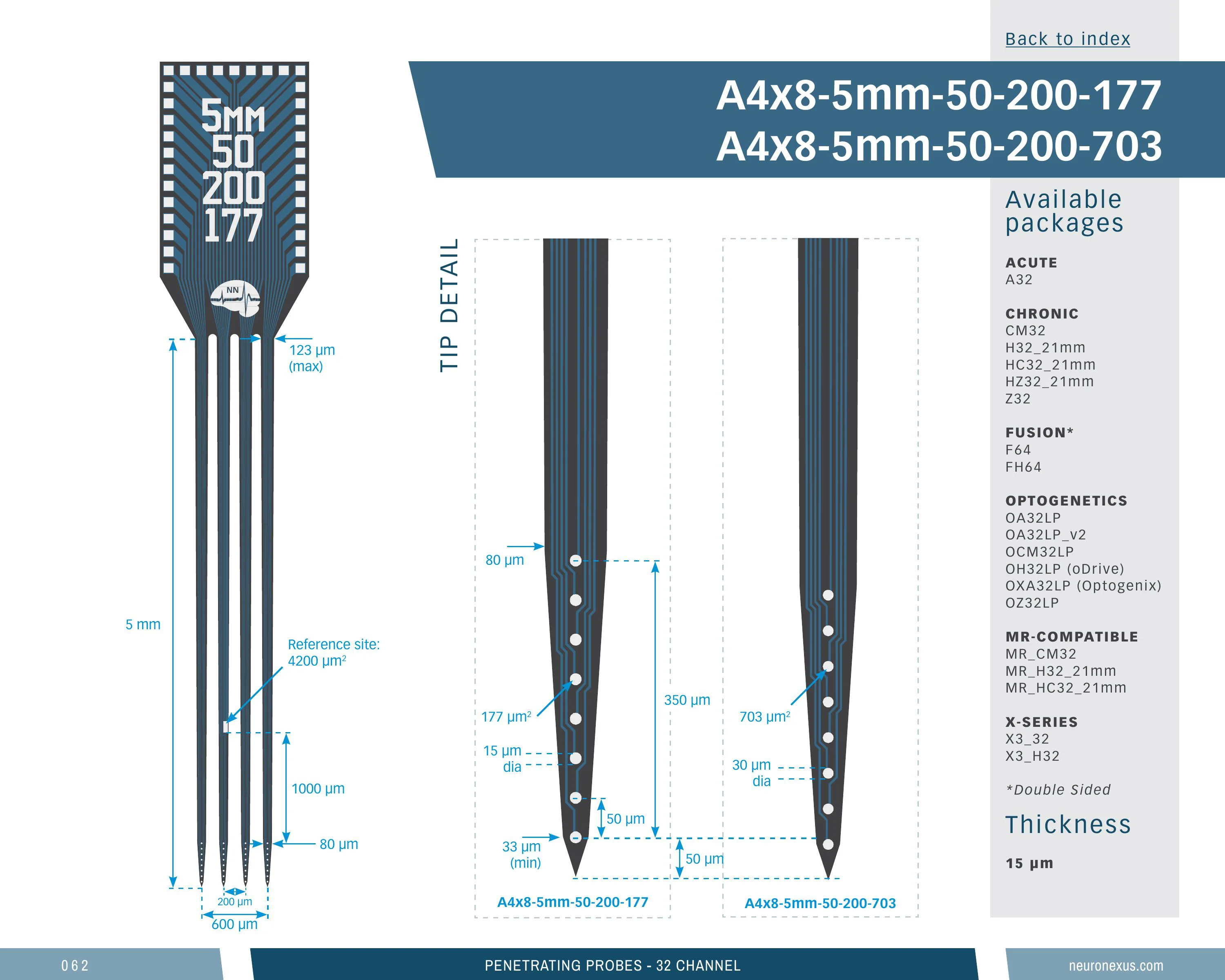

Linear 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
50µmSite Pitch
Part no.A4x8-5mm-50-200-703
Contents

32-site A-Series probe, 4 shanks, 5 mm, 703 µm², 50 µm pitch, 200 µm apart

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.38 mm-deep site array (23rd percentile), 134 sites/mm² (38th percentile) and a 0.5 mm³ neural interface (31st percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x8_5mm_50_200_703 · a4x8_5mm_50_200_70

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

13 specs

Channels32
Shanks4
Shank length5 mm
Shank separation200 µm
Site area703 µm²
Site pitch50 µm
Vertical span380 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume0.497 mm³ (higher than 31% of 369 designs)
Site coverage density133.6 sites/mm² (higher than 38% of 369 designs)
Brain coverage density64.3 sites/mm³ (higher than 69% of 369 designs)
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

48 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 (21 mm cable) — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 5 mm — 15 μm, A32
A32
Substrate Thickness: 15 μm
Compatible Package: A32 — 32-ch Samtec
SKUprb_acl--a4x8_5mm_50_200_703.15um.a32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

48 of 48
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.97 mm
0.972 mm51.29 mm

Top 54% of catalog designs

Maximum site depth 4.97 mm — higher than 46% of catalog designs and 59% of its family
Minimum site depth
4.58 mm
0.067 mm44.74 mm

Top 46% of catalog designs

Minimum site depth 4.58 mm — higher than 54% of catalog designs and 66% of its family
Span, x
0.63 mm
0.01 mm6.03 mm

Top 35% of catalog designs

Span, x 0.63 mm — higher than 65% of catalog designs and 68% of its family
Span, y
0.38 mm
0.01 mm10.55 mm

Top 77% of catalog designs

Span, y 0.38 mm — higher than 23% of catalog designs and 17% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.24 mm²
0.002 mm²28.74 mm²

Top 44% of catalog designs

Site outline area 0.24 mm² — higher than 56% of catalog designs and 56% of its family
Neural interface volume
0.497 mm³
0.149 mm³17.19 mm³

Top 69% of catalog designs

Neural interface volume 0.497 mm³ — higher than 31% of catalog designs and 22% of its family
Site coverage density
133.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 62% of catalog designs

Site coverage density 133.6 sites/mm² — higher than 38% of catalog designs and 42% of its family
Brain coverage density
64.34 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 31% of catalog designs

Brain coverage density 64.34 sites/mm³ — higher than 69% of catalog designs and 80% of its family
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_acl--a4x8_5mm_50_200_703

Cited in 2,342 publications (product line)
