Neural Probes · A-Series

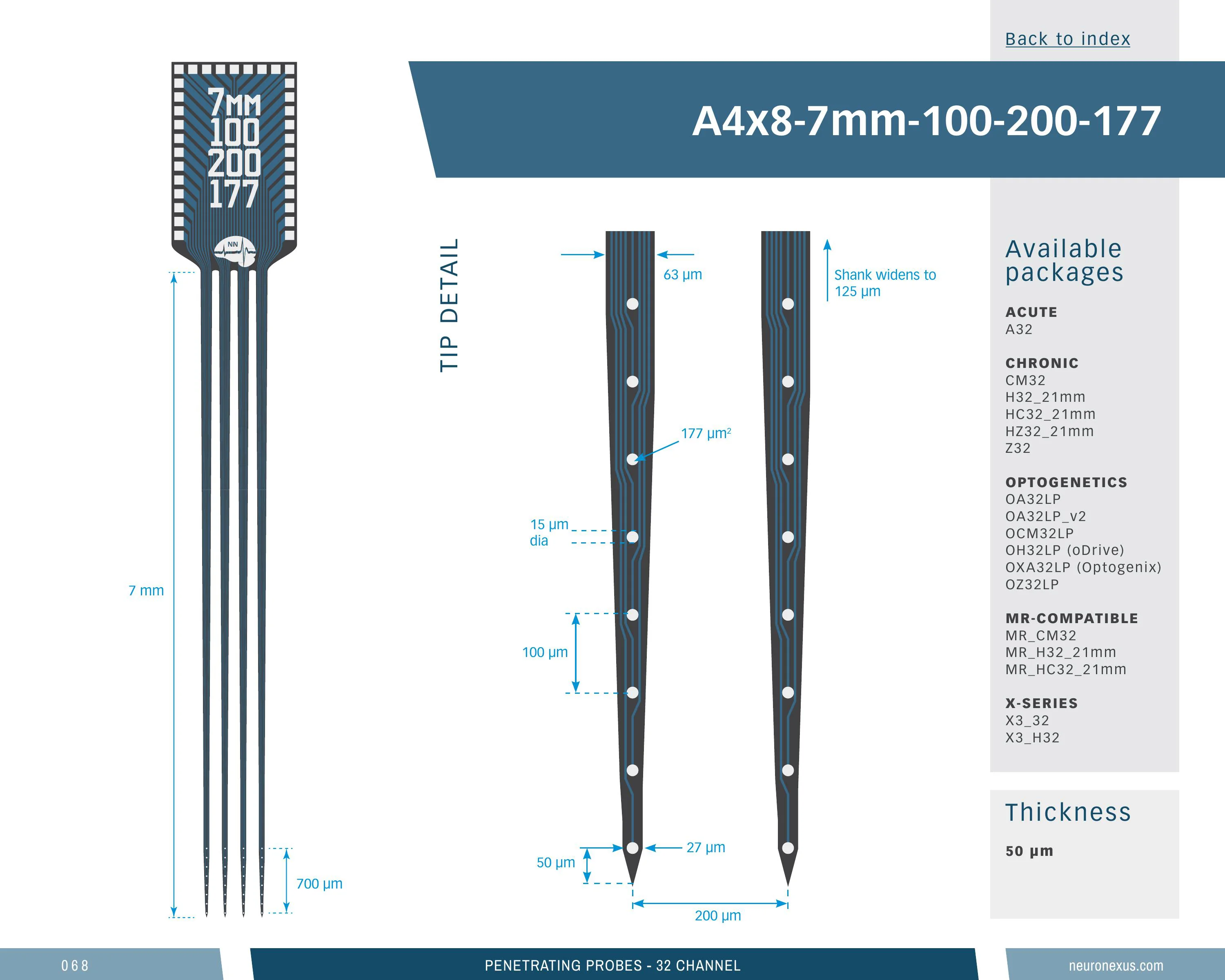

Linear 4-Shank 32-Channel Probe, 7 mm

32Sites
4Shanks
7mmShank Length
100µmSite Pitch
Part no.A4x8-7mm-100-200-177
Contents

32-site A-Series probe, 4 shanks, 7 mm

Four long shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 7 mm shanks (64th percentile of the 366 measured), a 0.71 mm-deep site array (36th percentile), 73 sites/mm² (29th percentile) and a 0.68 mm³ neural interface (53rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 24 package configurations, 2 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a4x8_7mm_100_200_177

Linear 4-Shank 32-Channel Probe, 7 mmSKU prb_acl--a4x8_7mm_100_200_177

13 specs

Channels32
Shanks4
Shank length7 mm
Shank separation200 µm
Site area177 µm²
Site pitch100 µm
Vertical span715 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.677 mm³ (higher than 53% of 369 designs)
Site coverage density72.8 sites/mm² (higher than 29% of 369 designs)
Brain coverage density47.3 sites/mm³ (higher than 51% of 369 designs)
Linear 4-Shank 32-Channel Probe, 7 mmSKU prb_acl--a4x8_7mm_100_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

24 options

Configure

Compatible Package
All
A32 — 32-ch Samtec
CM32 — 32-ch Omnetics
F64 — 64-ch Omnetics
FH64 — 64-ch Omnetics
H32 (21 mm cable) — 32-ch Omnetics
HC32 — 32-ch Omnetics
HZ32 (21 mm cable) — 32-ch Hirose
MRCM16PB32 — 16-ch
MRCM32 — 32-ch
MRH32 — 32-ch Omnetics
MRHC32 — 32-ch Omnetics
MROCM32LP — 32-ch Omnetics
OA32LP — 32-ch Samtec
OA32LP_V2 — 32-ch Samtec
OCM32LP — 32-ch Omnetics
OH32LP — 32-ch Omnetics
OHZ32LP — 32-ch Hirose
OXA32LP — 32-ch Samtec
OXCM32LP — 32-ch Omnetics
OXH32LP_21MM — 32-ch
OZ32LP — 32-ch Hirose
X3_32 — 32-ch Molex
X3_H32 (21 mm cable) — 32-ch Molex
Z32 — 32-ch Hirose

Your selection

32-channel 4-shank silicon probe, 7 mm — 50 μm, H32_21MM
H32_21MM
Compatible Package: H32 (21 mm cable) — 32-ch Omnetics
SKUprb_acl--a4x8_7mm_100_200_177.50um.h32_21mm
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

24 of 24
Linear 4-Shank 32-Channel Probe, 7 mmSKU prb_acl--a4x8_7mm_100_200_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 7 mmSKU prb_acl--a4x8_7mm_100_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs

Sites 32 — higher than 74% of catalog designs and 79% of its family
Shanks
4
116

Top 15% of catalog designs

Shanks 4 — higher than 85% of catalog designs and 82% of its family
Shank length
7 mm
1 mm60 mm

Top 36% of catalog designs

Shank length 7 mm — higher than 64% of catalog designs and 74% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 68% of catalog designs

Shank separation 0.2 mm — higher than 32% of catalog designs and 32% of its family
Maximum site depth
6.96 mm
0.972 mm51.29 mm

Top 37% of catalog designs

Maximum site depth 6.96 mm — higher than 63% of catalog designs and 73% of its family
Minimum site depth
6.24 mm
0.067 mm44.74 mm

Top 34% of catalog designs

Minimum site depth 6.24 mm — higher than 66% of catalog designs and 74% of its family
Span, x
0.615 mm
0.01 mm6.03 mm

Top 41% of catalog designs

Span, x 0.615 mm — higher than 59% of catalog designs and 62% of its family
Span, y
0.715 mm
0.01 mm10.55 mm

Top 64% of catalog designs

Span, y 0.715 mm — higher than 36% of catalog designs and 28% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its family
Site outline area
0.44 mm²
0.002 mm²28.74 mm²

Top 34% of catalog designs

Site outline area 0.44 mm² — higher than 66% of catalog designs and 64% of its family
Neural interface volume
0.677 mm³
0.149 mm³17.19 mm³

Top 47% of catalog designs

Neural interface volume 0.677 mm³ — higher than 53% of catalog designs and 51% of its family
Site coverage density
72.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 71% of catalog designs

Site coverage density 72.8 sites/mm² — higher than 29% of catalog designs and 31% of its family
Brain coverage density
47.25 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 49% of catalog designs

Brain coverage density 47.25 sites/mm³ — higher than 51% of catalog designs and 56% of its family
