Linear 4-Shank 32-Channel Probe, 8 mm
32-site A-Series probe, 4 shanks, 8 mm
Four long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 8 mm shanks (68th percentile of the 366 measured), a 0.73 mm-deep site array (40th percentile), 29 sites/mm² (9th percentile) and a 1.25 mm³ neural interface (79th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 24 package configurations, 4 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

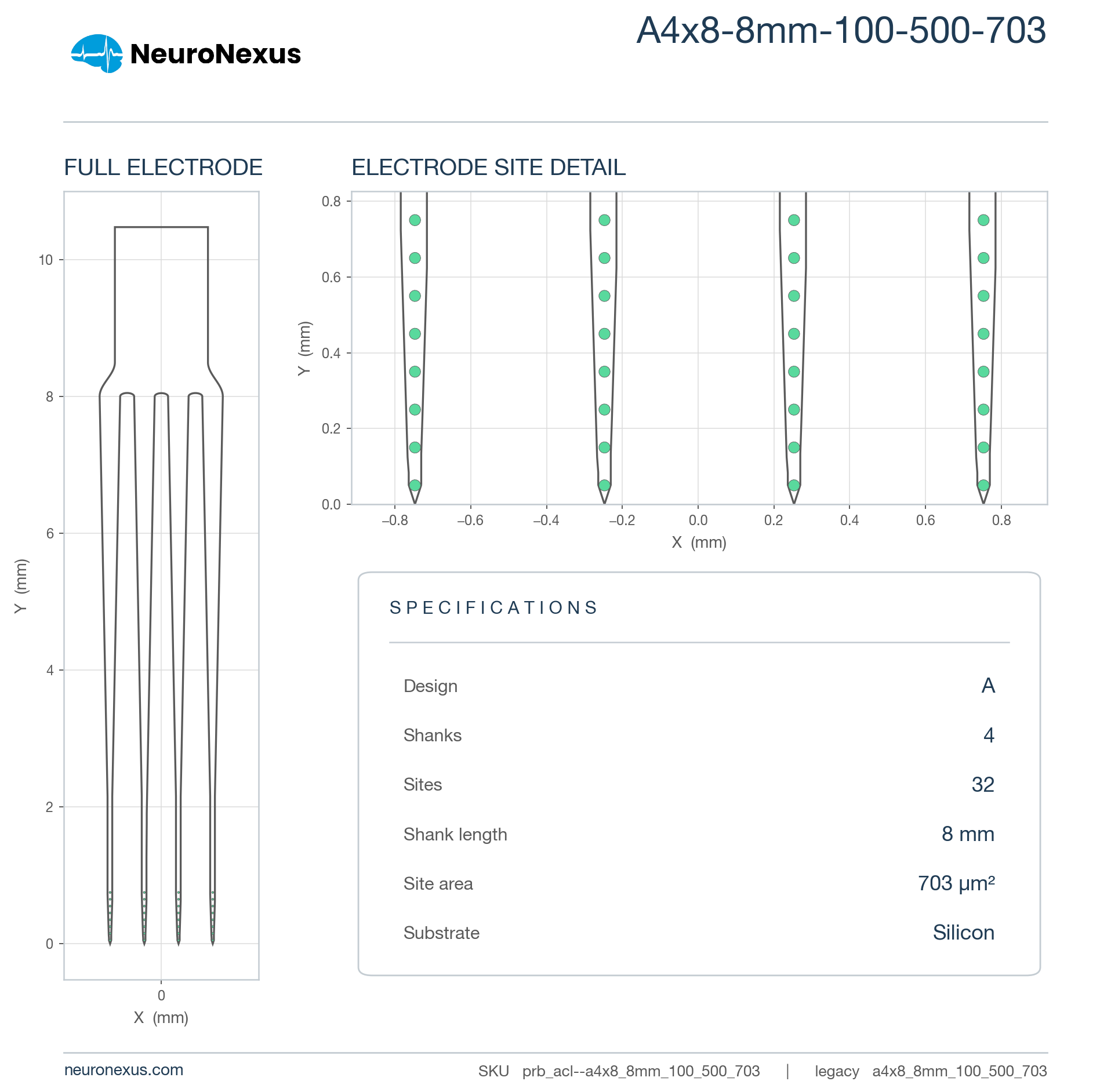

a4x8_8mm_100_500_703
13 specs
| Channels | 32 |
|---|---|
| Shanks | 4 |
| Shank length | 8 mm |
| Shank separation | 500 µm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 730 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.248 mm³ (higher than 79% of 369 designs) |
| Site coverage density | 28.7 sites/mm² (higher than 9% of 369 designs) |
| Brain coverage density | 25.6 sites/mm³ (higher than 19% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
48 options
Configure
Your selection
32-channel 4-shank silicon probe, 8 mm — 15 μm, A32
A32Options
48 of 4815 μm · A32 — 32-ch Samtec
15 μm · CM32 — 32-ch Omnetics
15 μm · X3_32 — 32-ch Molex
15 μm · X3_H32 (21 mm cable) — 32-ch Molex
50 μm · A32 — 32-ch Samtec
50 μm · CM32 — 32-ch Omnetics
50 μm · X3_32 — 32-ch Molex
50 μm · X3_H32 (21 mm cable) — 32-ch Molex
15 μm · H32 — 32-ch Omnetics
50 μm · H32 — 32-ch Omnetics
15 μm · HC32 — 32-ch Omnetics
50 μm · HC32 — 32-ch Omnetics
15 μm · HZ32 — 32-ch Hirose
50 μm · HZ32 — 32-ch Hirose
15 μm · MRCM32 — 32-ch
50 μm · MRCM32 — 32-ch
15 μm · MRH32 — 32-ch Omnetics
50 μm · MRH32 — 32-ch Omnetics
15 μm · MRHC32 — 32-ch Omnetics
50 μm · MRHC32 — 32-ch Omnetics
15 μm · OH32LP — 32-ch Omnetics
50 μm · OH32LP — 32-ch Omnetics
15 μm · OHZ32LP — 32-ch Hirose
50 μm · OHZ32LP — 32-ch Hirose
15 μm · OA32LP — 32-ch Samtec
50 μm · OA32LP — 32-ch Samtec
15 μm · OA32LP_V2 — 32-ch Samtec
50 μm · OA32LP_V2 — 32-ch Samtec
15 μm · OXA32LP — 32-ch Samtec
50 μm · OXA32LP — 32-ch Samtec
15 μm · MROCM32LP — 32-ch Omnetics
50 μm · MROCM32LP — 32-ch Omnetics
15 μm · OCM32LP — 32-ch Omnetics
50 μm · OCM32LP — 32-ch Omnetics
15 μm · OXCM32LP — 32-ch Omnetics
50 μm · OXCM32LP — 32-ch Omnetics
15 μm · F64 — 64-ch Omnetics
50 μm · F64 — 64-ch Omnetics
15 μm · FH64 — 64-ch Omnetics
50 μm · FH64 — 64-ch Omnetics
15 μm · MRCM16PB32 — 16-ch
50 μm · MRCM16PB32 — 16-ch
15 μm · OXH32LP_21MM — 32-ch
50 μm · OXH32LP_21MM — 32-ch
15 μm · OZ32LP — 32-ch Hirose
50 μm · OZ32LP — 32-ch Hirose
15 μm · Z32 — 32-ch Hirose
50 μm · Z32 — 32-ch Hirose
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs
Sites 32 — higher than 74% of catalog designs and 79% of its familyTop 15% of catalog designs
Shanks 4 — higher than 85% of catalog designs and 82% of its familyTop 32% of catalog designs
Shank length 8 mm — higher than 68% of catalog designs and 76% of its familyTop 6% of catalog designs
Shank separation 0.5 mm — higher than 94% of catalog designs and 99% of its familyTop 33% of catalog designs
Maximum site depth 7.96 mm — higher than 67% of catalog designs and 76% of its familyTop 27% of catalog designs
Minimum site depth 7.24 mm — higher than 73% of catalog designs and 80% of its familyTop 7% of catalog designs
Span, x 1.53 mm — higher than 93% of catalog designs and 93% of its familyTop 60% of catalog designs
Span, y 0.73 mm — higher than 40% of catalog designs and 33% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 80% of its familyTop 16% of catalog designs
Site outline area 1.12 mm² — higher than 84% of catalog designs and 86% of its familyTop 21% of catalog designs
Neural interface volume 1.25 mm³ — higher than 79% of catalog designs and 83% of its familyTop 91% of catalog designs
Site coverage density 28.66 sites/mm² — higher than 9% of catalog designs and 8% of its familyTop 81% of catalog designs
Brain coverage density 25.64 sites/mm³ — higher than 19% of catalog designs and 14% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
