Neural Probes · A-Series

Edge 8-Shank 128-Channel Probe, 5 mm

128Sites
8Shanks
5mmShank Length
100µmSite Pitch
Part no.A8x16-Edge-5mm-100-200-177
Contents

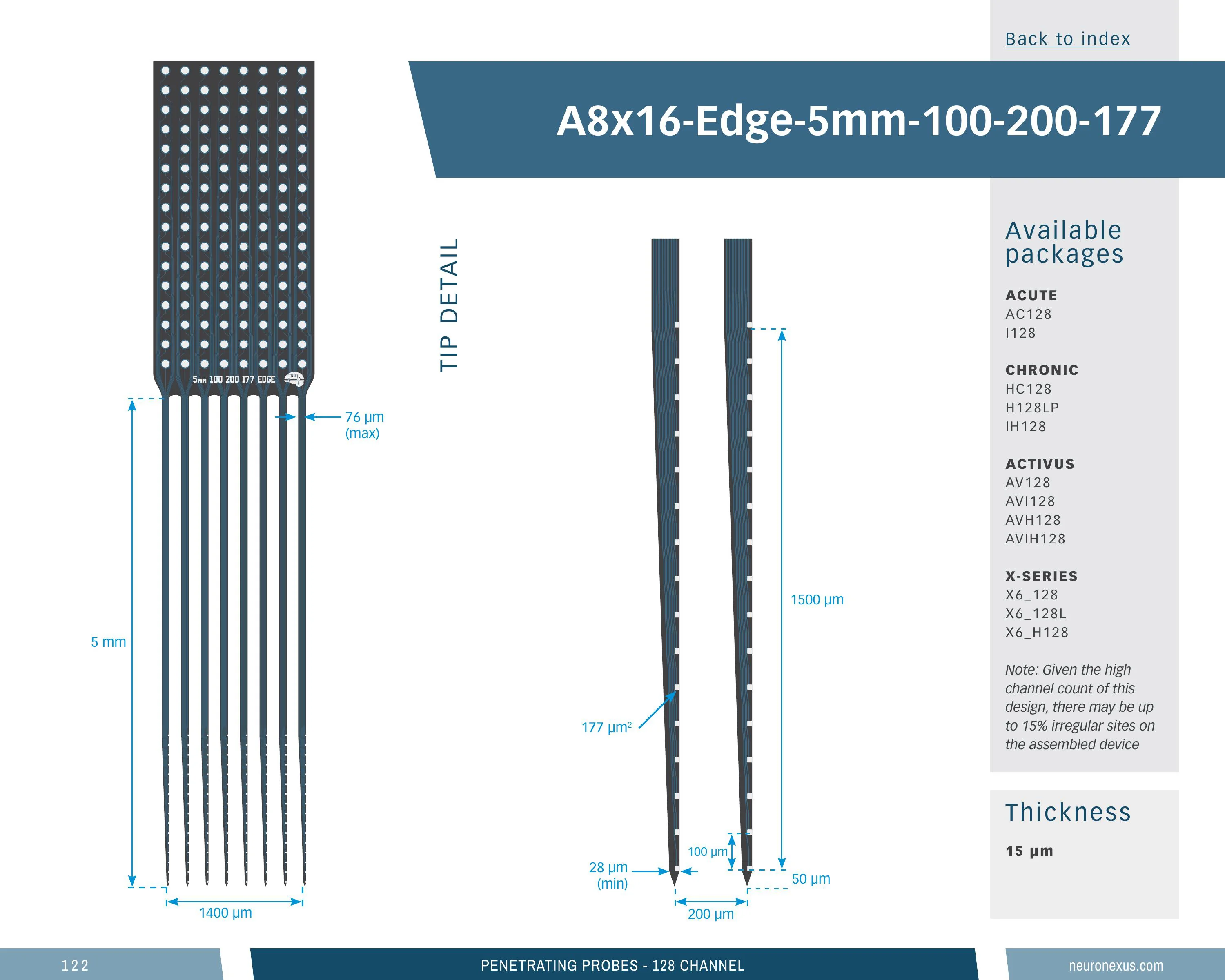

128-site A-Series probe, 8 shanks, 177 µm², 100 µm pitch

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is in the upper quartile: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 1.51 mm-deep site array (70th percentile), 60 sites/mm² (24th percentile) and a 1.93 mm³ neural interface (91st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 10 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x16_edge_5mm_100_200_177

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_100_200_177

14 specs

Channels128
Shanks8
Shank length5 mm
Shank separation200 µm
Site layoutEdge
Site area177 µm²
Site pitch100 µm
Vertical span1515 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.926 mm³ (higher than 91% of 369 designs)
Site coverage density59.8 sites/mm² (higher than 24% of 369 designs)
Brain coverage density66.4 sites/mm³ (higher than 74% of 369 designs)
