Neural Probes · A-Series

Edge 8-Shank 128-Channel Probe, 5 mm

128Sites
8Shanks
5mmShank Length
30µmSite Pitch
Part no.A8x16-edge-5mm-30-500-121
Contents

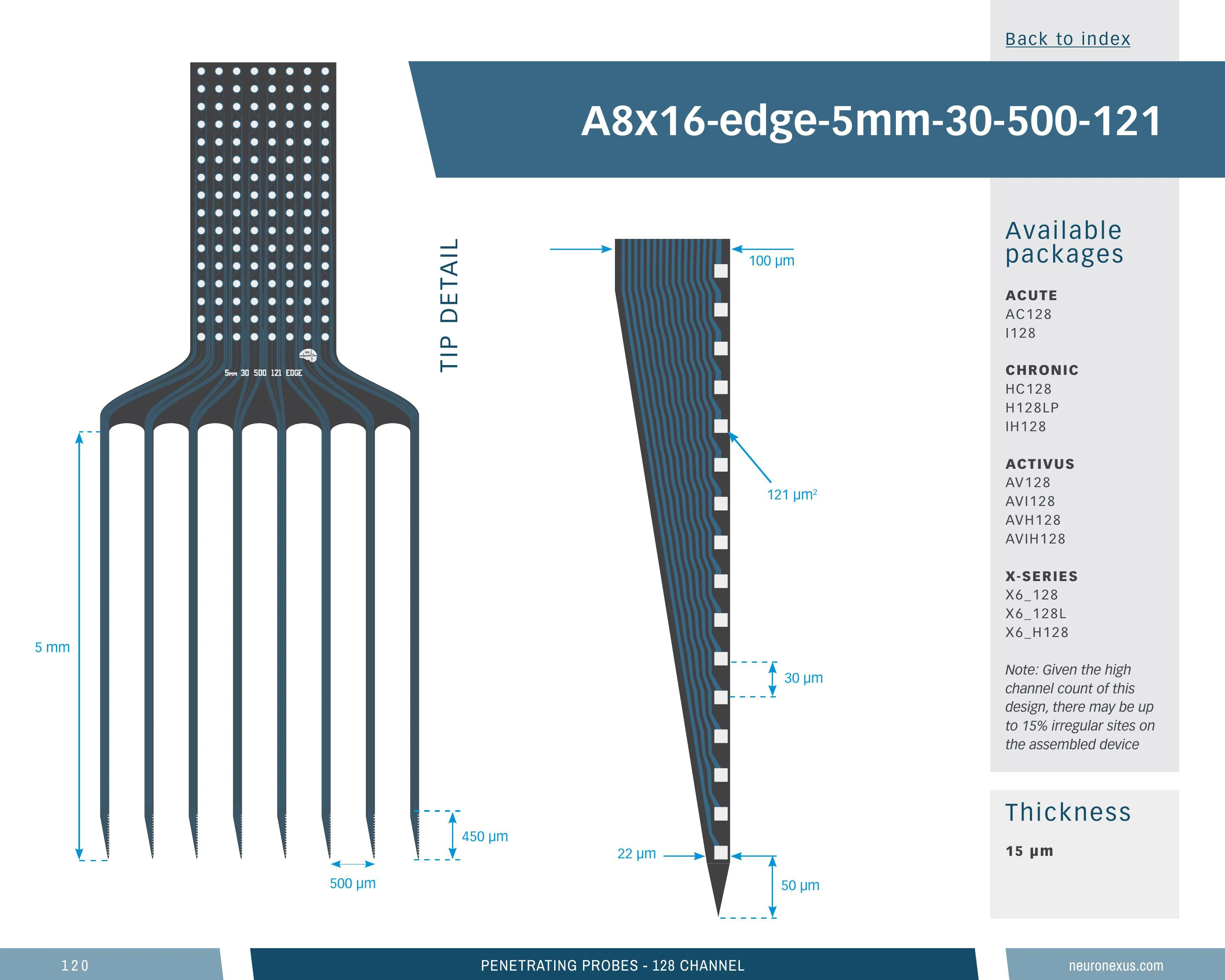

128-site A-Series probe, 8 shanks, 121 µm²

Eight mid-length shanks side by side, spread for lateral coverage across columns, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.46 mm-deep site array (27th percentile), 79 sites/mm² (32nd percentile) and a 1.93 mm³ neural interface (91st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 11 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x16_edge_5mm_30_500_121

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

14 specs

Channels128
Shanks8
Shank length5 mm
Shank separation500 µm
Site layoutEdge
Site area121 µm²
Site pitch30 µm
Vertical span460 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.927 mm³ (higher than 91% of 369 designs)
Site coverage density79.2 sites/mm² (higher than 32% of 369 designs)
Brain coverage density66.4 sites/mm³ (higher than 73% of 369 designs)
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

11 options

Configure

Compatible Package
All
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
H128LP_T
I128 — 128-ch
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 8-shank silicon probe, 5 mm — 15 μm, AV128
AV128
Compatible Package: AV128 — 128-ch
SKUprb_acl--a8x16_edge_5mm_30_500_121.15um.av128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

11 of 11
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

Loading the compatible products…

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 98% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.5 mm
0.05 mm1.8 mm

Top 6% of catalog designs

Shank separation 0.5 mm — higher than 94% of catalog designs and 99% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 71% of catalog designs

Maximum site depth 4.96 mm — higher than 29% of catalog designs and 29% of its family
Minimum site depth
4.49 mm
0.067 mm44.74 mm

Top 49% of catalog designs

Minimum site depth 4.49 mm — higher than 51% of catalog designs and 63% of its family
Span, x
3.51 mm
0.01 mm6.03 mm

Top 1% of catalog designs

Span, x 3.51 mm — higher than 99% of catalog designs and 99% of its family
Span, y
0.461 mm
0.01 mm10.55 mm

Top 73% of catalog designs

Span, y 0.461 mm — higher than 27% of catalog designs and 21% of its family
Site pitch, y
0.03 µm
0.01 µm1.5 µm

Top 65% of catalog designs

Site pitch, y 0.03 µm — higher than 35% of catalog designs and 11% of its family
Site outline area
1.62 mm²
0.002 mm²28.74 mm²

Top 13% of catalog designs

Site outline area 1.62 mm² — higher than 87% of catalog designs and 89% of its family
Neural interface volume
1.93 mm³
0.149 mm³17.19 mm³

Top 9% of catalog designs

Neural interface volume 1.93 mm³ — higher than 91% of catalog designs and 94% of its family
Site coverage density
79.15 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 68% of catalog designs

Site coverage density 79.15 sites/mm² — higher than 32% of catalog designs and 33% of its family
Brain coverage density
66.44 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 27% of catalog designs

Brain coverage density 66.44 sites/mm³ — higher than 73% of catalog designs and 82% of its family
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_30_500_121

Cited in 2,342 publications (product line)
