Neural Probes · A-Series

Edge 8-Shank 128-Channel Probe, 5 mm

128Sites
8Shanks
5mmShank Length
50µmSite Pitch
Part no.A8x16-Edge-5mm-50-150-177
Contents

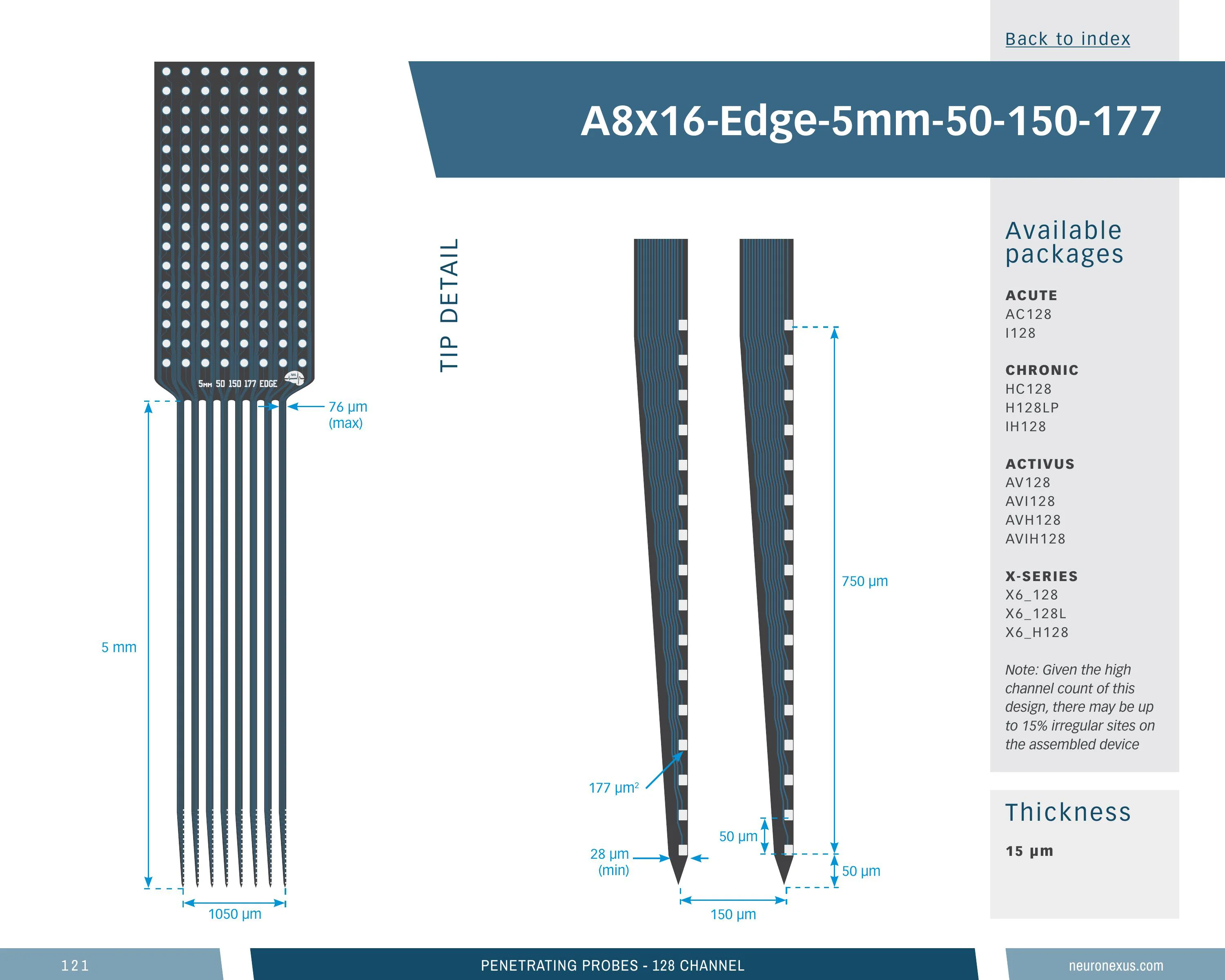

128-site A-Series probe, 8 shanks, 177 µm², 50 µm pitch

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 128 sites (96th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.77 mm-deep site array (44th percentile), 158 sites/mm² (43rd percentile) and a 0.99 mm³ neural interface (71st percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 10 package configurations, 3 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x16_edge_5mm_50_150_177

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

14 specs

Channels128
Shanks8
Shank length5 mm
Shank separation150 µm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span765 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.988 mm³ (higher than 71% of 369 designs)
Site coverage density157.6 sites/mm² (higher than 43% of 369 designs)
Brain coverage density129.6 sites/mm³ (higher than 92% of 369 designs)
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

10 options

Configure

Compatible Package
All
AV128 — 128-ch
AVH128 — 128-ch
AVI128 — 128-ch Omnetics
AVIH128 — 128-ch Omnetics
H128LP — 128-ch Omnetics
I128 — 128-ch
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel 8-shank silicon probe, 5 mm — 15 μm, AV128
AV128
Compatible Package: AV128 — 128-ch
SKUprb_acl--a8x16_edge_5mm_50_150_177.15um.av128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

10 of 10
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

Loading the compatible products…

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
41024

Top 4% of catalog designs

Sites 128 — higher than 96% of catalog designs and 98% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.15 mm
0.05 mm1.8 mm

Top 86% of catalog designs

Shank separation 0.15 mm — higher than 14% of catalog designs and 24% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
4.19 mm
0.067 mm44.74 mm

Top 56% of catalog designs

Minimum site depth 4.19 mm — higher than 44% of catalog designs and 53% of its family
Span, x
1.06 mm
0.01 mm6.03 mm

Top 22% of catalog designs

Span, x 1.06 mm — higher than 78% of catalog designs and 73% of its family
Span, y
0.765 mm
0.01 mm10.55 mm

Top 56% of catalog designs

Span, y 0.765 mm — higher than 44% of catalog designs and 39% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.812 mm²
0.002 mm²28.74 mm²

Top 22% of catalog designs

Site outline area 0.812 mm² — higher than 78% of catalog designs and 79% of its family
Neural interface volume
0.988 mm³
0.149 mm³17.19 mm³

Top 29% of catalog designs

Neural interface volume 0.988 mm³ — higher than 71% of catalog designs and 72% of its family
Site coverage density
157.6 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 57% of catalog designs

Site coverage density 157.6 sites/mm² — higher than 43% of catalog designs and 49% of its family
Brain coverage density
129.6 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 8% of catalog designs

Brain coverage density 129.6 sites/mm³ — higher than 92% of catalog designs and 97% of its family
Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 8-Shank 128-Channel Probe, 5 mmSKU prb_acl--a8x16_edge_5mm_50_150_177

Cited in 2,342 publications (product line)
