Neural Probes · A-Series

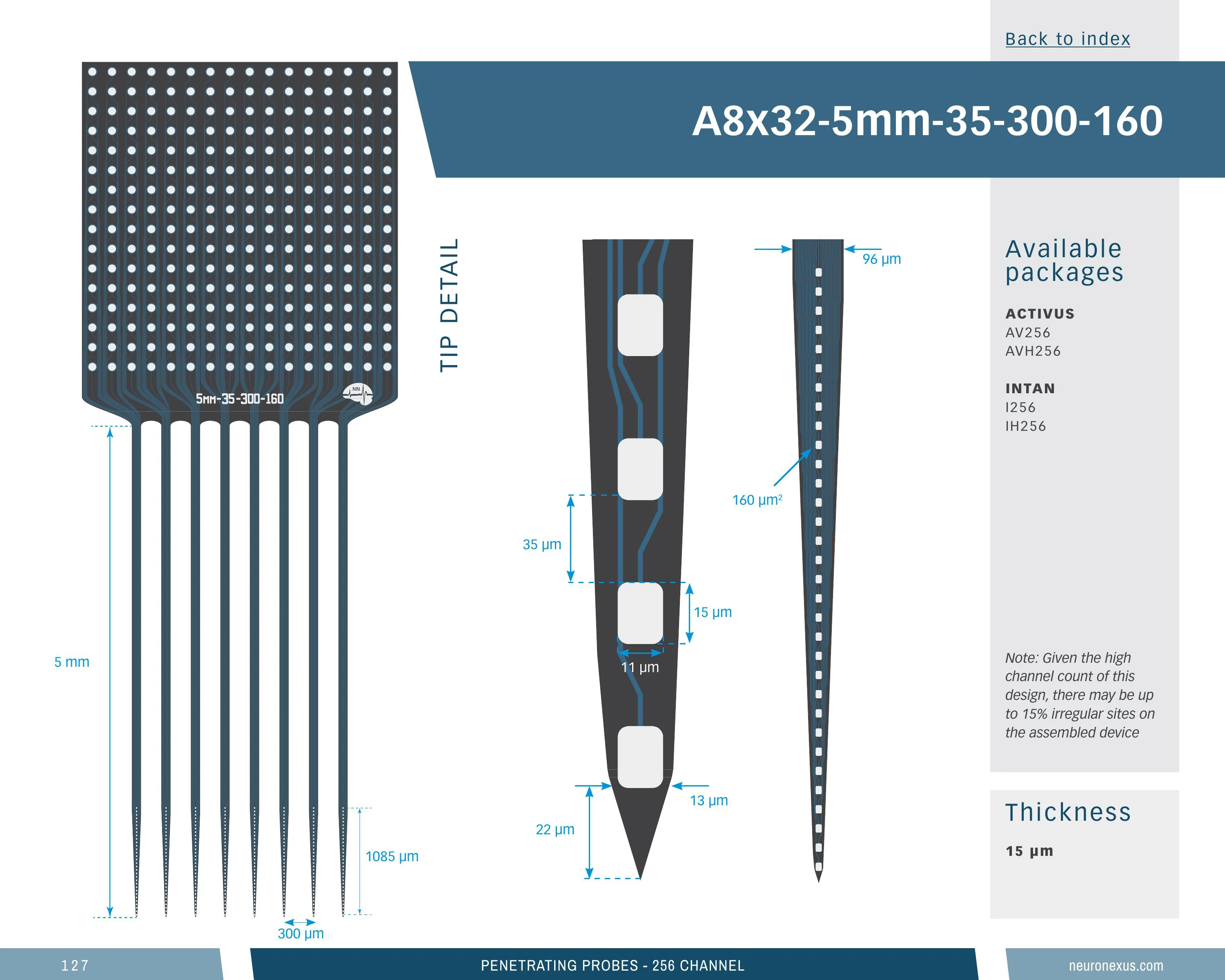

Linear 8-Shank 256-Channel Probe, 5 mm

256Sites
8Shanks
5mmShank Length
35µmSite Pitch
Part no.A8x32-5mm-35-300-160
Contents

256-site A-Series probe, 5 mm, 160 µm²

Eight mid-length shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 5 mm shanks (a common choice — 108 of 366), a 1.1 mm-deep site array (57th percentile), 110 sites/mm² (35th percentile) and a 2.09 mm³ neural interface (92nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x32_5mm_35_300_160

Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

13 specs

Channels256
Shanks8
Shank length5 mm
Shank separation300 µm
Site area160 µm²
Site pitch35 µm
Vertical span1100 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume2.089 mm³ (higher than 92% of 369 designs)
Site coverage density110.2 sites/mm² (higher than 35% of 369 designs)
Brain coverage density122.6 sites/mm³ (higher than 92% of 369 designs)
Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 5 mm — 15 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_acl--a8x32_5mm_35_300_160.15um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

Loading the compatible products…

Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.3 mm
0.05 mm1.8 mm

Top 24% of catalog designs

Shank separation 0.3 mm — higher than 76% of catalog designs and 74% of its family
Maximum site depth
4.98 mm
0.972 mm51.29 mm

Top 51% of catalog designs

Maximum site depth 4.98 mm — higher than 49% of catalog designs and 61% of its family
Minimum site depth
3.88 mm
0.067 mm44.74 mm

Top 61% of catalog designs

Minimum site depth 3.88 mm — higher than 39% of catalog designs and 48% of its family
Span, x
2.11 mm
0.01 mm6.03 mm

Top 3% of catalog designs

Span, x 2.11 mm — higher than 97% of catalog designs and 97% of its family
Span, y
1.1 mm
0.01 mm10.55 mm

Top 43% of catalog designs

Span, y 1.1 mm — higher than 57% of catalog designs and 52% of its family
Site pitch, y
0.035 µm
0.01 µm1.5 µm

Top 64% of catalog designs

Site pitch, y 0.035 µm — higher than 36% of catalog designs and 13% of its family
Site outline area
2.32 mm²
0.002 mm²28.74 mm²

Top 7% of catalog designs

Site outline area 2.32 mm² — higher than 93% of catalog designs and 96% of its family
Neural interface volume
2.09 mm³
0.149 mm³17.19 mm³

Top 8% of catalog designs

Neural interface volume 2.09 mm³ — higher than 92% of catalog designs and 96% of its family
Site coverage density
110.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 65% of catalog designs

Site coverage density 110.2 sites/mm² — higher than 35% of catalog designs and 38% of its family
Brain coverage density
122.6 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 8% of catalog designs

Brain coverage density 122.6 sites/mm³ — higher than 92% of catalog designs and 96% of its family
Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_5mm_35_300_160

Cited in 2,342 publications (product line)
