Neural Probes · A-Series

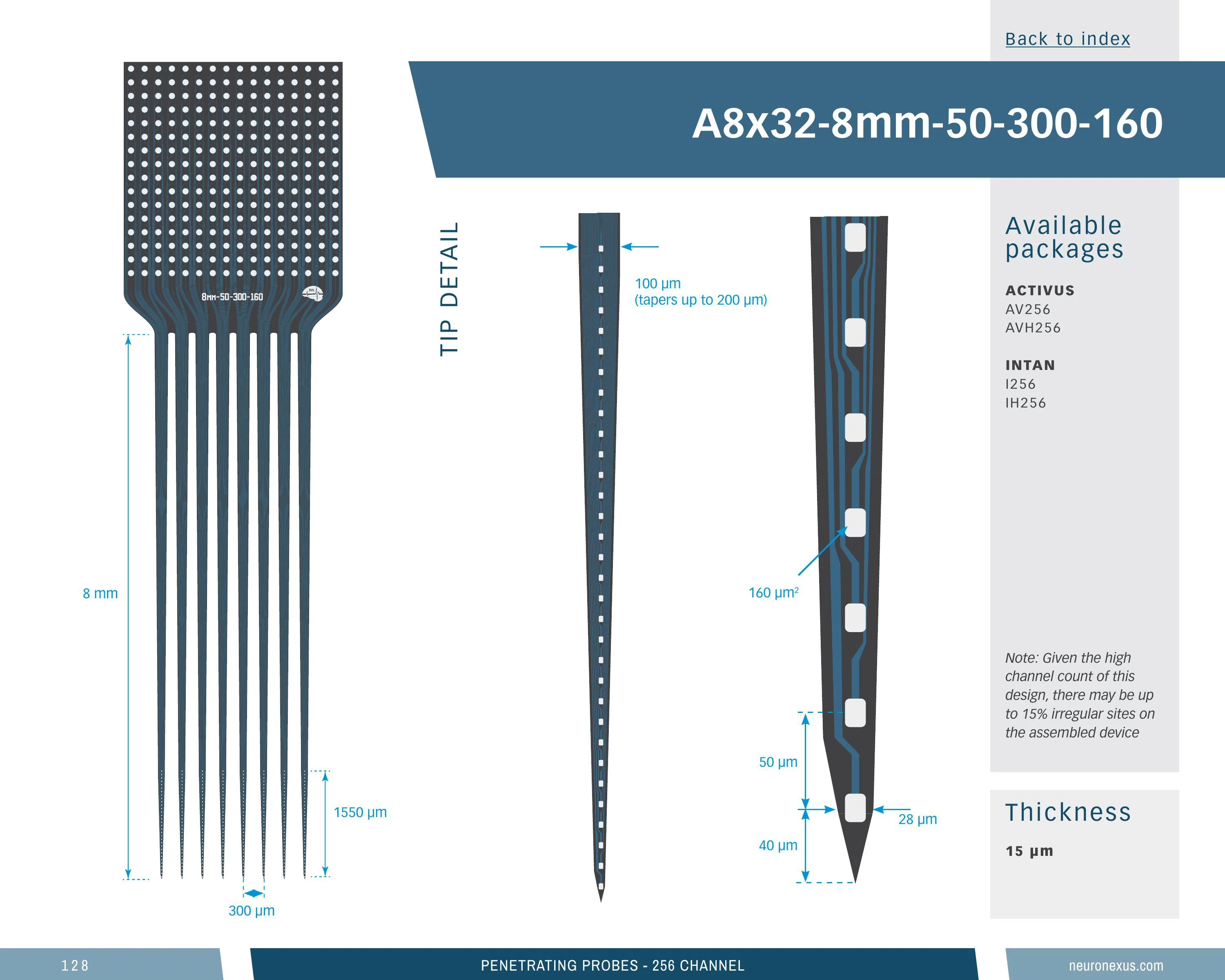

Linear 8-Shank 256-Channel Probe, 8 mm

256Sites
8Shanks
8mmShank Length
50µmSite Pitch
Part no.A8x32-8mm-50-300-160
Contents

256-site A-Series probe, 8 mm

Eight long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 256 sites (99th percentile), 8 mm shanks (68th percentile of the 366 measured), a 1.56 mm-deep site array (76th percentile), 77 sites/mm² (31st percentile) and a 2.7 mm³ neural interface (95th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x32_8mm_50_300_160

Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

13 specs

Channels256
Shanks8
Shank length8 mm
Shank separation300 µm
Site area160 µm²
Site pitch50 µm
Vertical span1565 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume2.696 mm³ (higher than 95% of 369 designs)
Site coverage density77.5 sites/mm² (higher than 31% of 369 designs)
Brain coverage density95.0 sites/mm³ (higher than 85% of 369 designs)
Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 8 mm — 15 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_acl--a8x32_8mm_50_300_160.15um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

Loading the compatible products…

Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
8 mm
1 mm60 mm

Top 32% of catalog designs

Shank length 8 mm — higher than 68% of catalog designs and 76% of its family
Shank separation
0.3 mm
0.05 mm1.8 mm

Top 24% of catalog designs

Shank separation 0.3 mm — higher than 76% of catalog designs and 74% of its family
Maximum site depth
7.97 mm
0.972 mm51.29 mm

Top 33% of catalog designs

Maximum site depth 7.97 mm — higher than 67% of catalog designs and 76% of its family
Minimum site depth
6.4 mm
0.067 mm44.74 mm

Top 33% of catalog designs

Minimum site depth 6.4 mm — higher than 67% of catalog designs and 75% of its family
Span, x
2.11 mm
0.01 mm6.03 mm

Top 3% of catalog designs

Span, x 2.11 mm — higher than 97% of catalog designs and 97% of its family
Span, y
1.56 mm
0.01 mm10.55 mm

Top 24% of catalog designs

Span, y 1.56 mm — higher than 76% of catalog designs and 79% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
3.3 mm²
0.002 mm²28.74 mm²

Top 5% of catalog designs

Site outline area 3.3 mm² — higher than 95% of catalog designs and 98% of its family
Neural interface volume
2.7 mm³
0.149 mm³17.19 mm³

Top 5% of catalog designs

Neural interface volume 2.7 mm³ — higher than 95% of catalog designs and 98% of its family
Site coverage density
77.49 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 69% of catalog designs

Site coverage density 77.49 sites/mm² — higher than 31% of catalog designs and 33% of its family
Brain coverage density
94.96 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 15% of catalog designs

Brain coverage density 94.96 sites/mm³ — higher than 85% of catalog designs and 92% of its family
Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 8-Shank 256-Channel Probe, 8 mmSKU prb_acl--a8x32_8mm_50_300_160

Cited in 2,342 publications (product line)
