Neural Probes · A-Series

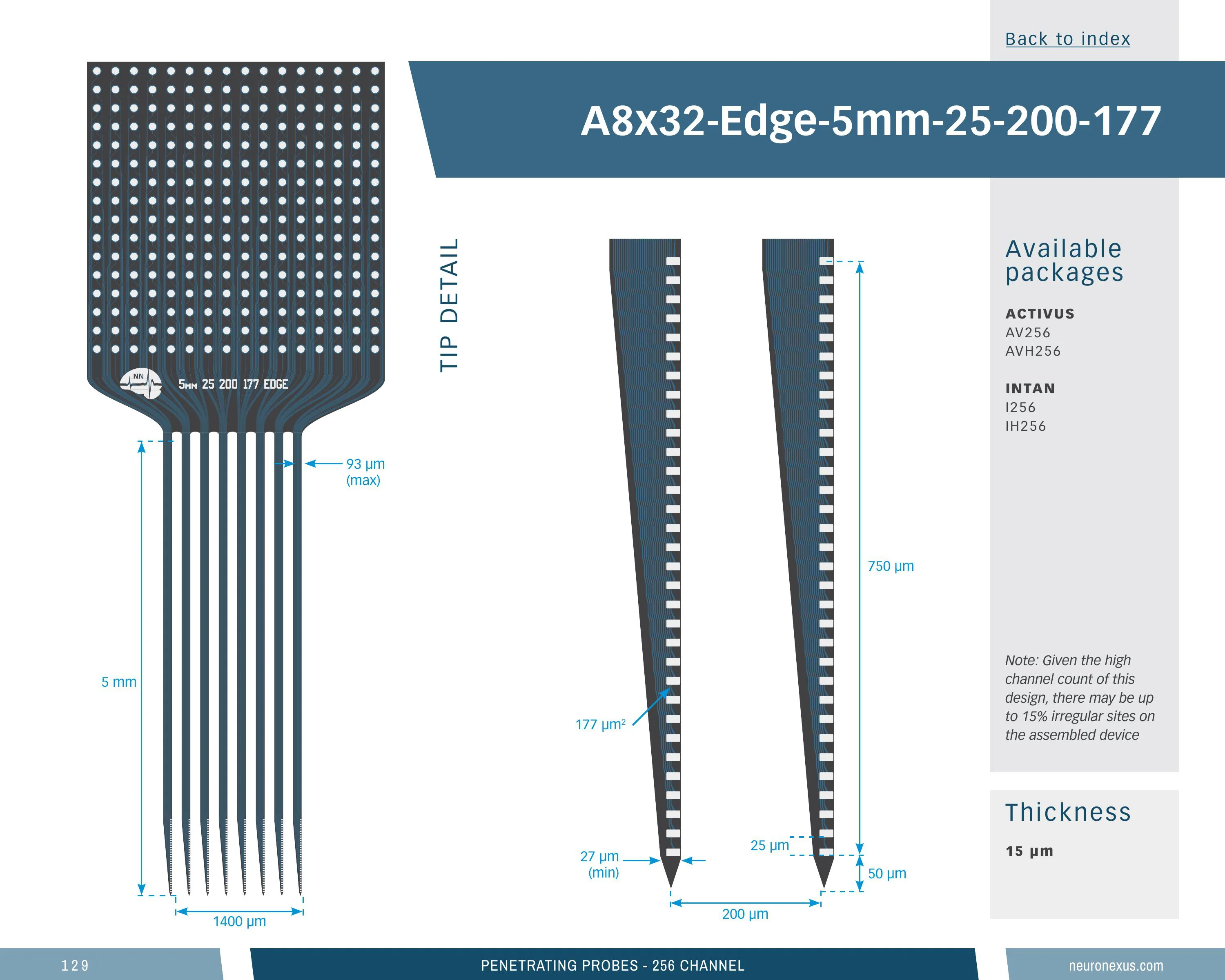

Edge 8-Shank 256-Channel Probe, 5 mm

256Sites
8Shanks
5mmShank Length
25µmSite Pitch
Part no.A8x32-Edge-5mm-25-200-177
Contents

256-site A-Series probe, 5 mm, 177 µm², 25 µm pitch

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 256 sites (99th percentile), 5 mm shanks (a common choice — 108 of 366), a 0.79 mm-deep site array (48th percentile), 230 sites/mm² (49th percentile) and a 1.23 mm³ neural interface (79th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

a8x32_edge_5mm_25_200_177

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

14 specs

Channels256
Shanks8
Shank length5 mm
Shank separation200 µm
Site layoutEdge
Site area177 µm²
Site pitch25 µm
Vertical span785 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.232 mm³ (higher than 79% of 369 designs)
Site coverage density230.0 sites/mm² (higher than 49% of 369 designs)
Brain coverage density207.7 sites/mm³ (higher than 98% of 369 designs)
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 5 mm — 15 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_acl--a8x32_edge_5mm_25_200_177.15um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

Loading the compatible products…

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
4.17 mm
0.067 mm44.74 mm

Top 57% of catalog designs

Minimum site depth 4.17 mm — higher than 43% of catalog designs and 51% of its family
Span, x
1.42 mm
0.01 mm6.03 mm

Top 13% of catalog designs

Span, x 1.42 mm — higher than 87% of catalog designs and 85% of its family
Span, y
0.785 mm
0.01 mm10.55 mm

Top 52% of catalog designs

Span, y 0.785 mm — higher than 48% of catalog designs and 45% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 9% of its family
Site outline area
1.11 mm²
0.002 mm²28.74 mm²

Top 16% of catalog designs

Site outline area 1.11 mm² — higher than 84% of catalog designs and 86% of its family
Neural interface volume
1.23 mm³
0.149 mm³17.19 mm³

Top 21% of catalog designs

Neural interface volume 1.23 mm³ — higher than 79% of catalog designs and 83% of its family
Site coverage density
230 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 51% of catalog designs

Site coverage density 230 sites/mm² — higher than 49% of catalog designs and 53% of its family
Brain coverage density
207.7 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 2% of catalog designs · largest in its family

Brain coverage density 207.7 sites/mm³ — higher than 98% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_25_200_177

Cited in 2,342 publications (product line)
