Neural Probes · A-Series

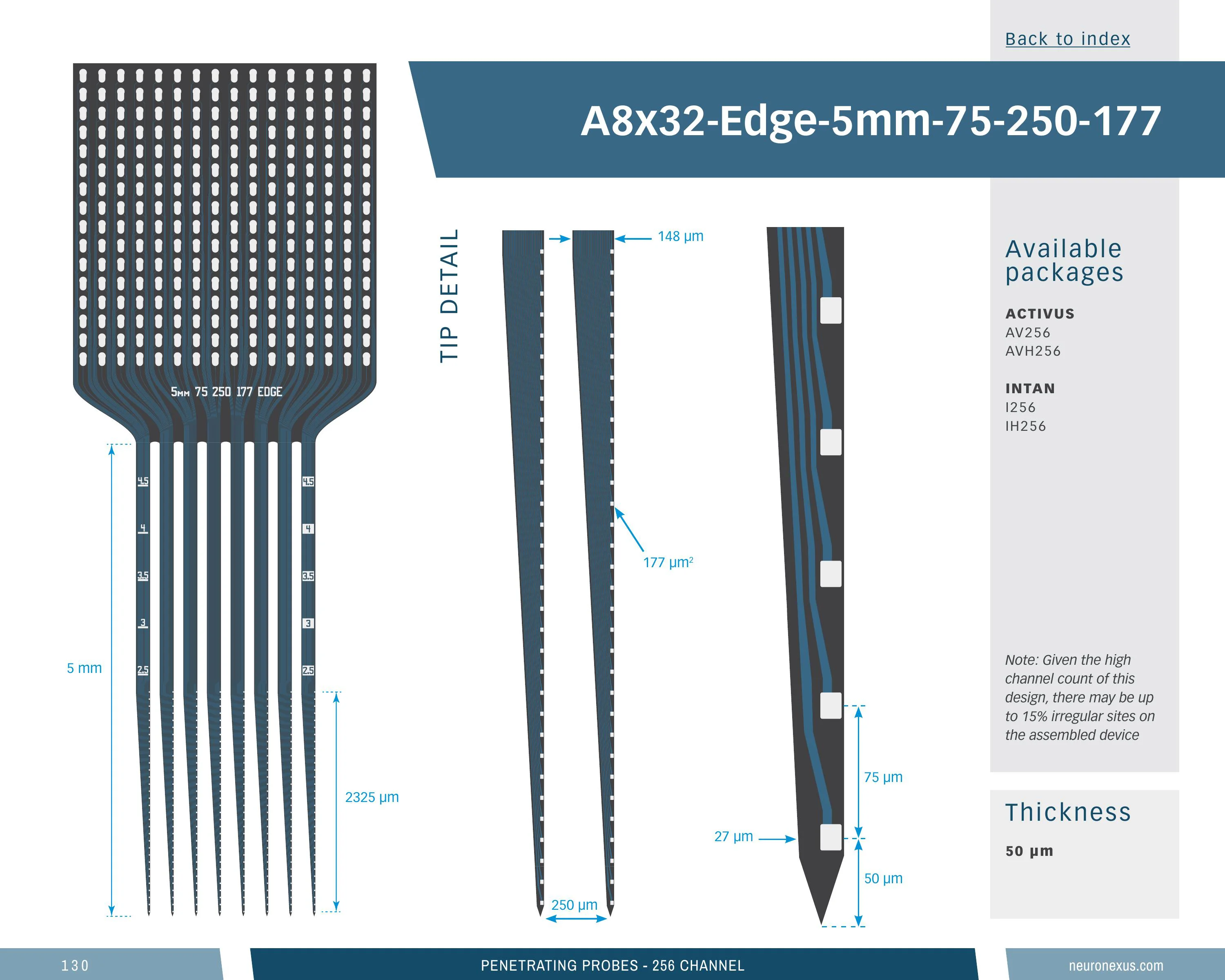

Edge 8-Shank 256-Channel Probe, 5 mm

256Sites
8Shanks
5mmShank Length
75µmSite Pitch
Part no.A8x32-Edge-5mm-75-250-177
Contents

256-site A-Series probe, 5 mm, 177 µm², 75 µm pitch

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it sits at the top: 256 sites (99th percentile), 5 mm shanks (a common choice — 108 of 366), a 2.34 mm-deep site array (84th percentile), 62 sites/mm² (24th percentile) and a 3.21 mm³ neural interface (96th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 5 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

a8x32_edge_5mm_75_250_177

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

14 specs

Channels256
Shanks8
Shank length5 mm
Shank separation250 µm
Site layoutEdge
Site area177 µm²
Site pitch75 µm
Vertical span2340 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume3.212 mm³ (higher than 96% of 369 designs)
Site coverage density62.1 sites/mm² (higher than 24% of 369 designs)
Brain coverage density79.7 sites/mm³ (higher than 78% of 369 designs)
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
AV256 — 256-ch
AVH256 — 256-ch
EMS256_R — 256-ch
IH256 — 256-ch
S256 — 256-ch

Your selection

256-channel 8-shank silicon probe, 5 mm — 50 μm, AV256
AV256
Compatible Package: AV256 — 256-ch
SKUprb_acl--a8x32_edge_5mm_75_250_177.50um.av256
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

Loading the compatible products…

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
256
41024

Top 1% of catalog designs · largest in its family

Sites 256 — higher than 99% of catalog designs and 100% of its family (the largest in its family, 180 designs)
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.25 mm
0.05 mm1.8 mm

Top 32% of catalog designs

Shank separation 0.25 mm — higher than 68% of catalog designs and 70% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
2.62 mm
0.067 mm44.74 mm

Top 79% of catalog designs

Minimum site depth 2.62 mm — higher than 21% of catalog designs and 23% of its family
Span, x
1.76 mm
0.01 mm6.03 mm

Top 5% of catalog designs

Span, x 1.76 mm — higher than 95% of catalog designs and 96% of its family
Span, y
2.34 mm
0.01 mm10.55 mm

Top 16% of catalog designs

Span, y 2.34 mm — higher than 84% of catalog designs and 87% of its family
Site pitch, y
0.075 µm
0.01 µm1.5 µm

Top 41% of catalog designs

Site pitch, y 0.075 µm — higher than 59% of catalog designs and 46% of its family
Site outline area
4.12 mm²
0.002 mm²28.74 mm²

Top 4% of catalog designs

Site outline area 4.12 mm² — higher than 96% of catalog designs and 99% of its family
Neural interface volume
3.21 mm³
0.149 mm³17.19 mm³

Top 4% of catalog designs

Neural interface volume 3.21 mm³ — higher than 96% of catalog designs and 99% of its family
Site coverage density
62.09 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 76% of catalog designs

Site coverage density 62.09 sites/mm² — higher than 24% of catalog designs and 24% of its family
Brain coverage density
79.7 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 22% of catalog designs

Brain coverage density 79.7 sites/mm³ — higher than 78% of catalog designs and 87% of its family
Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 8-Shank 256-Channel Probe, 5 mmSKU prb_acl--a8x32_edge_5mm_75_250_177

Cited in 2,342 publications (product line)
