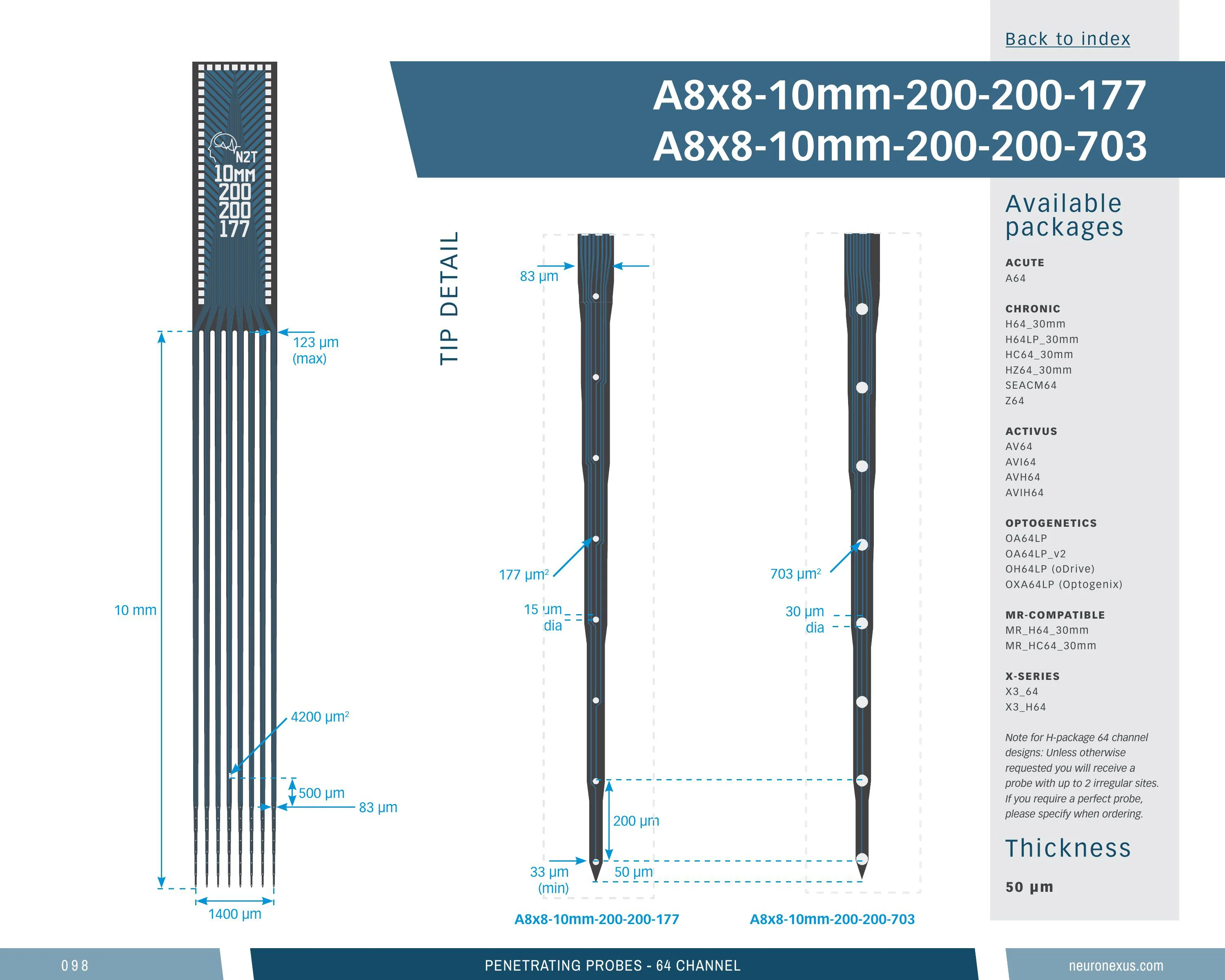

Linear 8-Shank 64-Channel Probe, 10 mm
64-site A-Series probe, 8 shanks, 10 mm, 177 µm²
Eight long shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.41 mm-deep site array (62nd percentile), 32 sites/mm² (12th percentile) and a 1.83 mm³ neural interface (89th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a8x8_10mm_200_200_177
13 specs
| Channels | 64 |
|---|---|
| Shanks | 8 |
| Shank length | 10 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 200 µm |
| Vertical span | 1415 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 1.833 mm³ (higher than 89% of 369 designs) |
| Site coverage density | 32.0 sites/mm² (higher than 12% of 369 designs) |
| Brain coverage density | 34.9 sites/mm³ (higher than 39% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
22 options
Configure
Your selection
64-channel 8-shank silicon probe, 10 mm — 50 μm, A64
A64Options
22 of 22A64 — 64-ch Samtec
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
SEACM64 — 64-ch Samtec
EIB64 — 64-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 93% of its familyTop 3% of catalog designs
Shanks 8 — higher than 97% of catalog designs and 94% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 25% of catalog designs
Maximum site depth 9.96 mm — higher than 75% of catalog designs and 78% of its familyTop 20% of catalog designs
Minimum site depth 8.54 mm — higher than 80% of catalog designs and 88% of its familyTop 13% of catalog designs
Span, x 1.41 mm — higher than 87% of catalog designs and 84% of its familyTop 38% of catalog designs
Span, y 1.41 mm — higher than 62% of catalog designs and 57% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its familyTop 11% of catalog designs
Site outline area 2 mm² — higher than 89% of catalog designs and 92% of its familyTop 11% of catalog designs
Neural interface volume 1.83 mm³ — higher than 89% of catalog designs and 91% of its familyTop 88% of catalog designs
Site coverage density 31.97 sites/mm² — higher than 12% of catalog designs and 10% of its familyTop 61% of catalog designs
Brain coverage density 34.91 sites/mm³ — higher than 39% of catalog designs and 44% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
