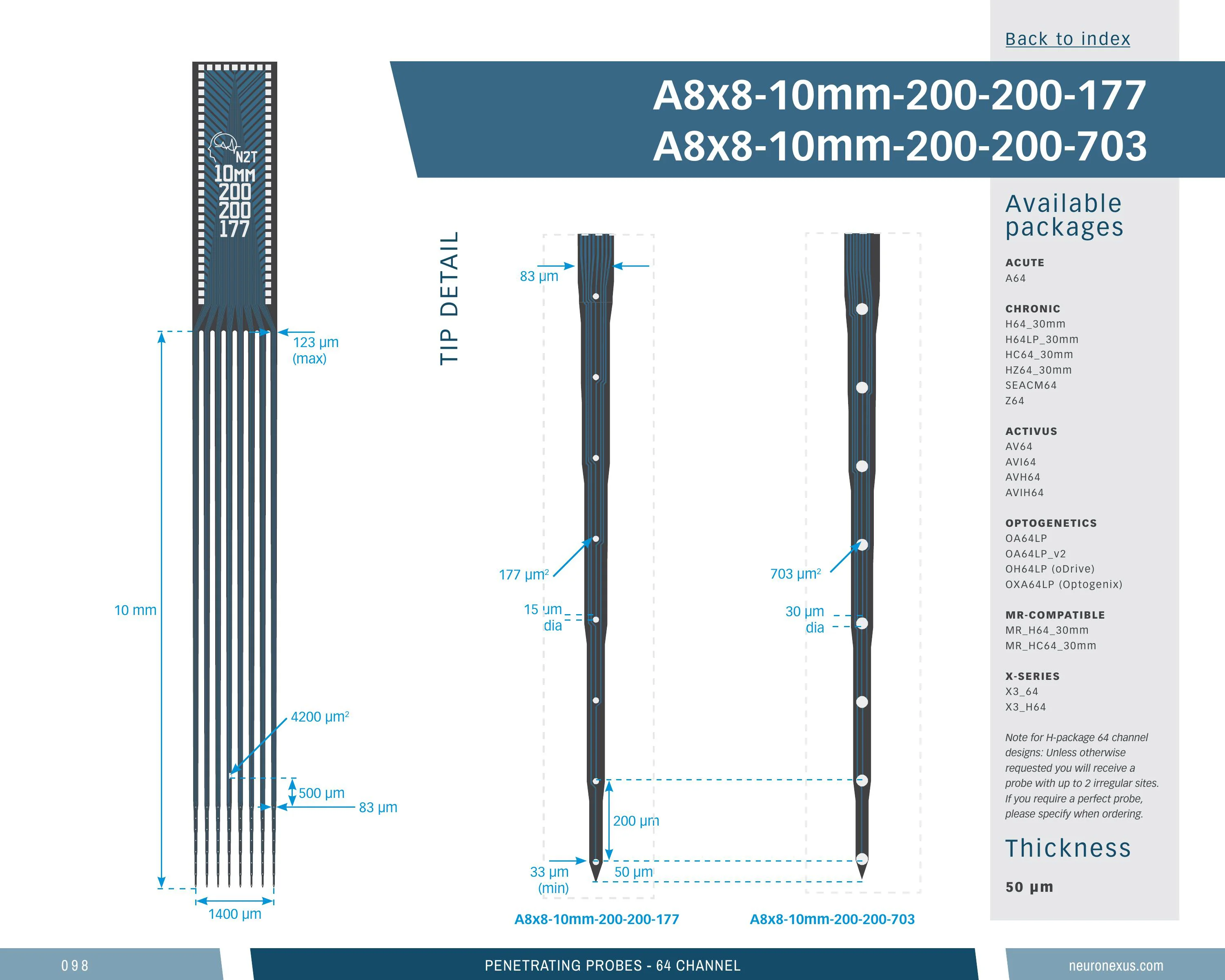

Linear 8-Shank 64-Channel Probe, 10 mm
64-site A-Series probe, 8 shanks, 10 mm, 703 µm²
Eight long shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 10 mm shanks (a common choice — 80 of 366), a 1.43 mm-deep site array (64th percentile), 31 sites/mm² (11th percentile) and a 1.86 mm³ neural interface (89th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 22 package configurations, 3 of them microdrive-compatible. Silicon 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a8x8_10mm_200_200_703 · a8x8_10mm_200_200_7
13 specs
| Channels | 64 |
|---|---|
| Shanks | 8 |
| Shank length | 10 mm |
| Shank separation | 200 µm |
| Site area | 703 µm² |
| Site pitch | 200 µm |
| Vertical span | 1430 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 1.862 mm³ (higher than 89% of 369 designs) |
| Site coverage density | 31.3 sites/mm² (higher than 11% of 369 designs) |
| Brain coverage density | 34.4 sites/mm³ (higher than 37% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
22 options
Configure
Your selection
64-channel 8-shank silicon probe, 10 mm — 50 μm, A64
A64Options
22 of 22A64 — 64-ch Samtec
H64 (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose
H64LP — 64-ch Omnetics
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OH64LP — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OXA64LP — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
SEACM64 — 64-ch Samtec
EIB64 — 64-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 93% of its familyTop 3% of catalog designs
Shanks 8 — higher than 97% of catalog designs and 94% of its familyTop 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 18% of catalog designs
Maximum site depth 9.96 mm — higher than 82% of catalog designs and 89% of its familyTop 20% of catalog designs
Minimum site depth 8.53 mm — higher than 80% of catalog designs and 88% of its familyTop 12% of catalog designs
Span, x 1.43 mm — higher than 88% of catalog designs and 88% of its familyTop 36% of catalog designs
Span, y 1.43 mm — higher than 64% of catalog designs and 62% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its familyTop 9% of catalog designs
Site outline area 2.04 mm² — higher than 91% of catalog designs and 94% of its familyTop 11% of catalog designs
Neural interface volume 1.86 mm³ — higher than 89% of catalog designs and 93% of its familyTop 89% of catalog designs
Site coverage density 31.31 sites/mm² — higher than 11% of catalog designs and 9% of its familyTop 63% of catalog designs
Brain coverage density 34.37 sites/mm³ — higher than 37% of catalog designs and 41% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
