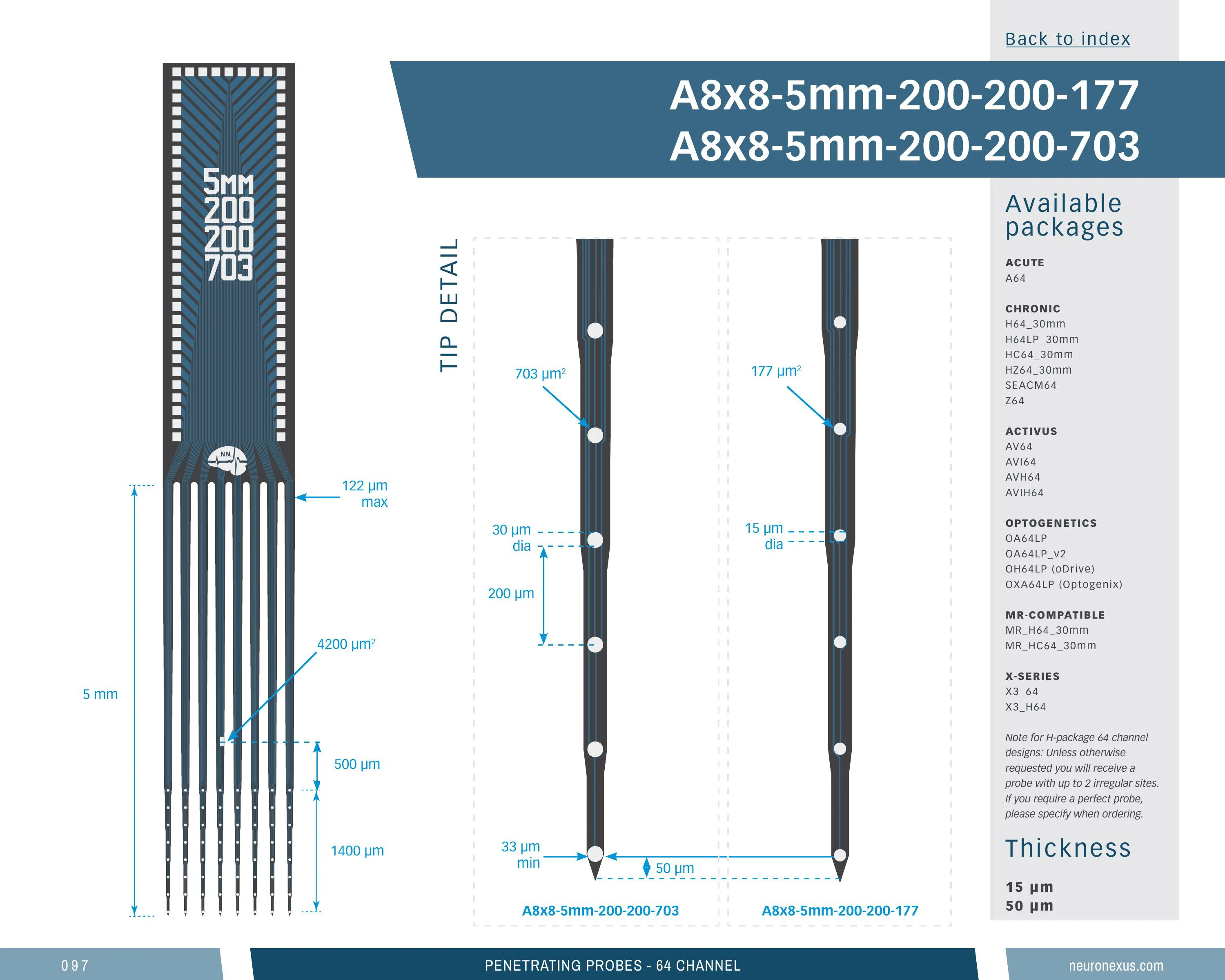

Linear 8-Shank 64-Channel Probe, 5 mm
64-site A-Series probe, 8 shanks, 5 mm, 177 µm², 200 µm pitch
Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.41 mm-deep site array (61st percentile), 32 sites/mm² (12th percentile) and a 1.83 mm³ neural interface (88th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.
Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.
a8x8_5mm_200_200_177
13 specs
| Channels | 64 |
|---|---|
| Shanks | 8 |
| Shank length | 5 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 200 µm |
| Vertical span | 1415 µm |
| Substrate | Silicon |
|---|---|
| Site material | Iridium |
| Thickness | 15, 50 µm |
| Neural interface volume | 1.833 mm³ (higher than 88% of 369 designs) |
| Site coverage density | 32.0 sites/mm² (higher than 12% of 369 designs) |
| Brain coverage density | 34.9 sites/mm³ (higher than 40% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
44 options
Configure
Your selection
64-channel 8-shank silicon probe, 5 mm — 15 μm, A64
A64Options
44 of 4415 μm · A64 — 64-ch Samtec
15 μm · H64 (30 mm cable) — 64-ch Omnetics
15 μm · H64LP (30 mm cable) — 64-ch Omnetics
15 μm · HC64 (30 mm cable) — 64-ch Omnetics
15 μm · HZ64 (30 mm cable) — 64-ch Hirose
15 μm · X3_64 — 64-ch Molex
15 μm · X3_H64 (30 mm cable) — 64-ch Molex
15 μm · Z64 — 64-ch Hirose
50 μm · A64 — 64-ch Samtec
50 μm · H64 (30 mm cable) — 64-ch Omnetics
50 μm · H64LP (30 mm cable) — 64-ch Omnetics
50 μm · HC64 (30 mm cable) — 64-ch Omnetics
50 μm · HZ64 (30 mm cable) — 64-ch Hirose
50 μm · X3_64 — 64-ch Molex
50 μm · X3_H64 (30 mm cable) — 64-ch Molex
50 μm · Z64 — 64-ch Hirose
15 μm · MRH64LP_30MM — 64-ch
50 μm · MRH64LP_30MM — 64-ch
15 μm · MRHC64 — 64-ch Omnetics
50 μm · MRHC64 — 64-ch Omnetics
15 μm · OH64LP — 64-ch Omnetics
50 μm · OH64LP — 64-ch Omnetics
15 μm · OA64LP — 64-ch Samtec
50 μm · OA64LP — 64-ch Samtec
15 μm · OA64LP_V2 — 64-ch Samtec
50 μm · OA64LP_V2 — 64-ch Samtec
15 μm · OXA64LP — 64-ch Samtec
50 μm · OXA64LP — 64-ch Samtec
15 μm · AV64 — 64-ch
50 μm · AV64 — 64-ch
15 μm · AVH64 — 64-ch
50 μm · AVH64 — 64-ch
15 μm · AVI64 — 64-ch Omnetics
50 μm · AVI64 — 64-ch Omnetics
15 μm · AVIH64 — 64-ch Omnetics
50 μm · AVIH64 — 64-ch Omnetics
15 μm · F128 — 128-ch Omnetics
50 μm · F128 — 128-ch Omnetics
15 μm · FH128 — 128-ch Omnetics
50 μm · FH128 — 128-ch Omnetics
15 μm · SEACM64 — 64-ch Samtec
50 μm · SEACM64 — 64-ch Samtec
15 μm · EIB64 — 64-ch Molex
50 μm · EIB64 — 64-ch Molex
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 8% of catalog designs
Sites 64 — higher than 92% of catalog designs and 93% of its familyTop 3% of catalog designs
Shanks 8 — higher than 97% of catalog designs and 94% of its familyTop 48% of catalog designs
Shank length 5 mm — higher than 52% of catalog designs and 61% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its familyTop 70% of catalog designs
Maximum site depth 4.96 mm — higher than 30% of catalog designs and 31% of its familyTop 64% of catalog designs
Minimum site depth 3.54 mm — higher than 36% of catalog designs and 45% of its familyTop 14% of catalog designs
Span, x 1.41 mm — higher than 86% of catalog designs and 84% of its familyTop 39% of catalog designs
Span, y 1.41 mm — higher than 61% of catalog designs and 57% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its familyTop 11% of catalog designs
Site outline area 2 mm² — higher than 89% of catalog designs and 92% of its familyTop 12% of catalog designs
Neural interface volume 1.83 mm³ — higher than 88% of catalog designs and 91% of its familyTop 88% of catalog designs
Site coverage density 31.97 sites/mm² — higher than 12% of catalog designs and 11% of its familyTop 60% of catalog designs
Brain coverage density 34.91 sites/mm³ — higher than 40% of catalog designs and 45% of its family4 notes · Spending a fixed site budget · Geometry · Construction …
22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …
Cited in 2,342 publications (product line)
