Neural Probes · A-Series

Linear 8-Shank 64-Channel Probe, 5 mm

64Sites
8Shanks
5mmShank Length
200µmSite Pitch
Part no.A8x8-5mm-200-200-413
Contact us to order
Contents

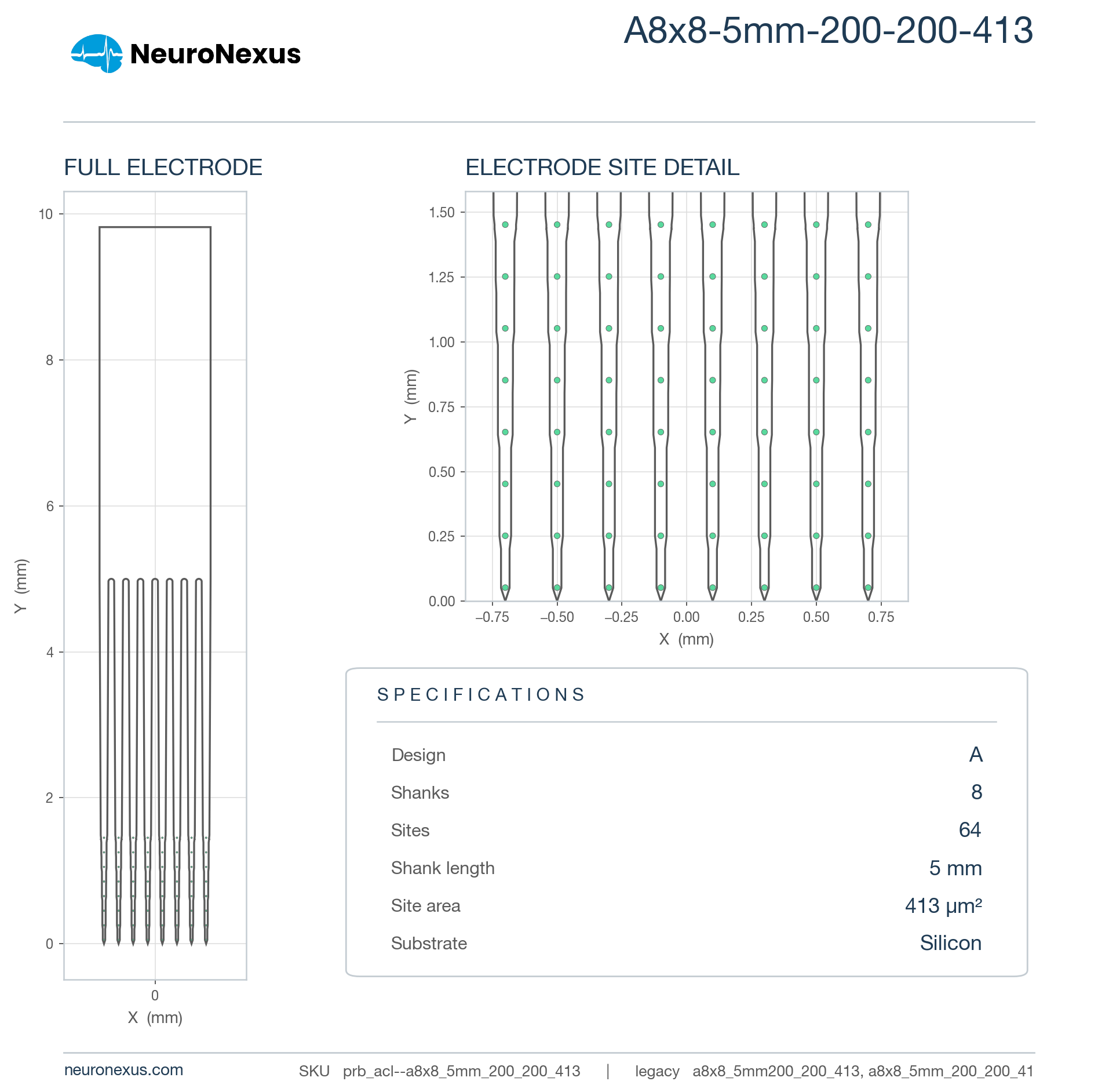

64-site A-Series probe, 8 shanks, 5 mm, 413 µm²

Eight mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.42 mm-deep site array (62nd percentile), 32 sites/mm² (11th percentile) and a 1.85 mm³ neural interface (89th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 8 package configurations, 1 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a8x8_5mm200_200_413 · a8x8_5mm_200_200_41

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

12 specs

Channels64
Shanks8
Shank length5 mm
Site area413 µm²
Site pitch200 µm
Vertical span1423 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.849 mm³ (higher than 89% of 369 designs)
Site coverage density31.6 sites/mm² (higher than 11% of 369 designs)
Brain coverage density34.6 sites/mm³ (higher than 39% of 369 designs)
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

Narrow the options with the filters or pick a card, then contact us to order that configuration.

9 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
H64 (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
OH64LP — 64-ch Omnetics
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 8-shank silicon probe, 5 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a8x8_5mm_200_200_413.15um.a64

Options

9 of 9
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

Loading the compatible products…

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 61% of catalog designs

Maximum site depth 4.96 mm — higher than 39% of catalog designs and 47% of its family
Minimum site depth
3.54 mm
0.067 mm44.74 mm

Top 66% of catalog designs

Minimum site depth 3.54 mm — higher than 34% of catalog designs and 43% of its family
Span, x
1.42 mm
0.01 mm6.03 mm

Top 13% of catalog designs

Span, x 1.42 mm — higher than 87% of catalog designs and 86% of its family
Span, y
1.42 mm
0.01 mm10.55 mm

Top 38% of catalog designs

Span, y 1.42 mm — higher than 62% of catalog designs and 58% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
2.02 mm²
0.002 mm²28.74 mm²

Top 10% of catalog designs

Site outline area 2.02 mm² — higher than 90% of catalog designs and 93% of its family
Neural interface volume
1.85 mm³
0.149 mm³17.19 mm³

Top 11% of catalog designs

Neural interface volume 1.85 mm³ — higher than 89% of catalog designs and 92% of its family
Site coverage density
31.61 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 89% of catalog designs

Site coverage density 31.61 sites/mm² — higher than 11% of catalog designs and 9% of its family
Brain coverage density
34.62 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 61% of catalog designs

Brain coverage density 34.62 sites/mm³ — higher than 39% of catalog designs and 44% of its family
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

3 notes · Geometry · Construction · Packaging and connector options

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_413

Cited in 2,342 publications (product line)
