Neural Probes · A-Series

Linear 8-Shank 64-Channel Probe, 5 mm

64Sites
8Shanks
5mmShank Length
200µmSite Pitch
Part no.A8x8-5mm-200-200-703
Contents

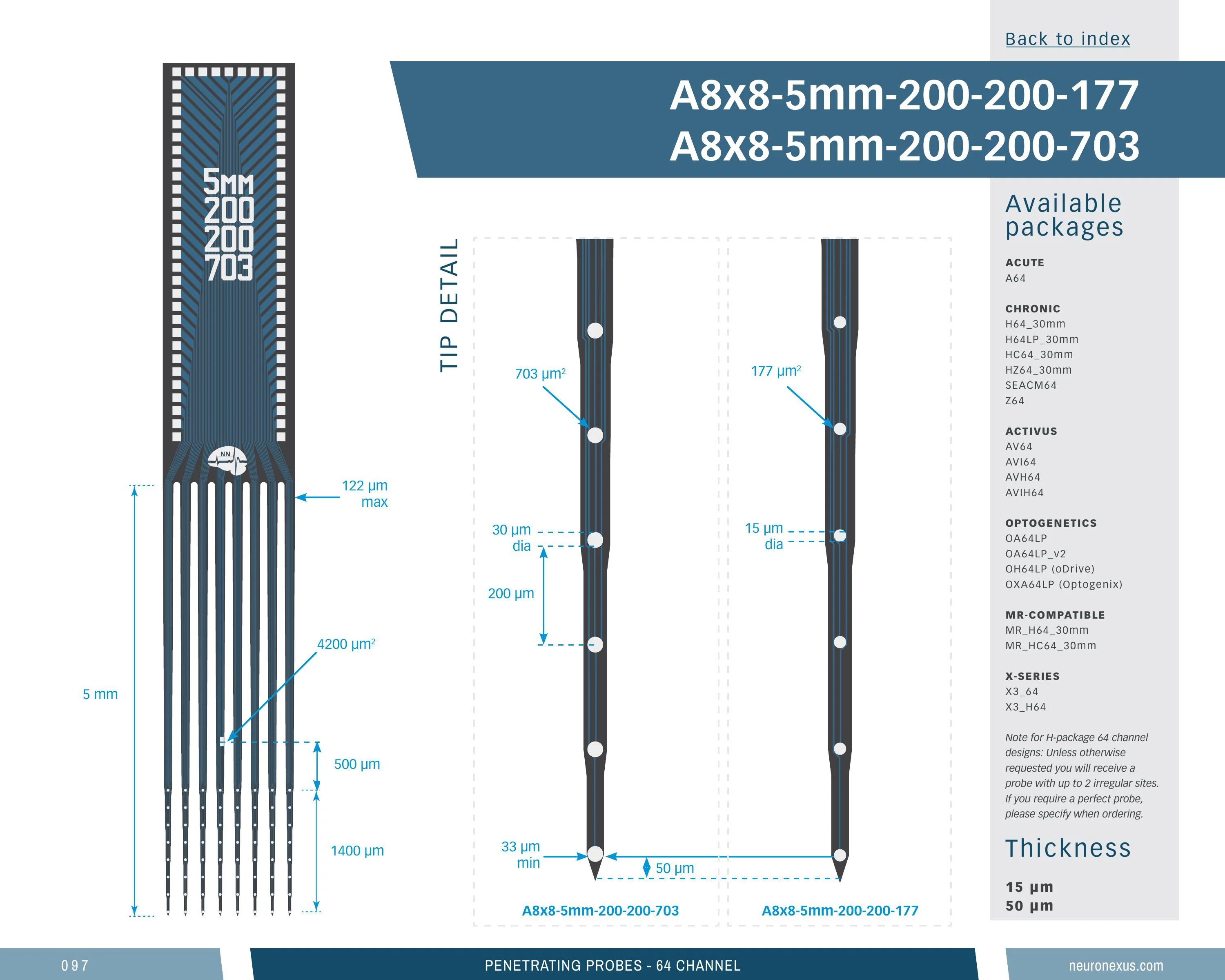

64-site A-Series probe, 8 shanks, 5 mm, 703 µm²

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.43 mm-deep site array (64th percentile), 31 sites/mm² (11th percentile) and a 1.86 mm³ neural interface (89th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 22 package configurations, 2 of them microdrive-compatible. Silicon 15 or 50 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a8x8_5mm_200_200_703 · a8x8_5mm_200_200_7

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

13 specs

Channels64
Shanks8
Shank length5 mm
Shank separation200 µm
Site area703 µm²
Site pitch200 µm
Vertical span1430 µm
SubstrateSilicon
Site materialIridium
Thickness15, 50 µm
Neural interface volume1.862 mm³ (higher than 89% of 369 designs)
Site coverage density31.3 sites/mm² (higher than 11% of 369 designs)
Brain coverage density34.4 sites/mm³ (higher than 37% of 369 designs)
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

44 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
F128 — 128-ch Omnetics
FH128 — 128-ch Omnetics
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 (30 mm cable) — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 8-shank silicon probe, 5 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a8x8_5mm_200_200_703.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

44 of 44
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

Loading the compatible products…

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 68% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 57% of catalog designs

Maximum site depth 4.96 mm — higher than 43% of catalog designs and 53% of its family
Minimum site depth
3.53 mm
0.067 mm44.74 mm

Top 66% of catalog designs

Minimum site depth 3.53 mm — higher than 34% of catalog designs and 42% of its family
Span, x
1.43 mm
0.01 mm6.03 mm

Top 12% of catalog designs

Span, x 1.43 mm — higher than 88% of catalog designs and 88% of its family
Span, y
1.43 mm
0.01 mm10.55 mm

Top 36% of catalog designs

Span, y 1.43 mm — higher than 64% of catalog designs and 62% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 96% of its family
Site outline area
2.04 mm²
0.002 mm²28.74 mm²

Top 9% of catalog designs

Site outline area 2.04 mm² — higher than 91% of catalog designs and 94% of its family
Neural interface volume
1.86 mm³
0.149 mm³17.19 mm³

Top 11% of catalog designs

Neural interface volume 1.86 mm³ — higher than 89% of catalog designs and 93% of its family
Site coverage density
31.31 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 89% of catalog designs

Site coverage density 31.31 sites/mm² — higher than 11% of catalog designs and 9% of its family
Brain coverage density
34.37 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 63% of catalog designs

Brain coverage density 34.37 sites/mm³ — higher than 37% of catalog designs and 41% of its family
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

4 notes · Spending a fixed site budget · Geometry · Construction …

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_200_200_703

Cited in 2,342 publications (product line)
