Neural Probes · A-Series

Linear 8-Shank 64-Channel Probe, 5 mm

64Sites
8Shanks
5mmShank Length
300µmSite Pitch
Part no.A8x8-5mm-300-200-177
Contact us to order
Contents

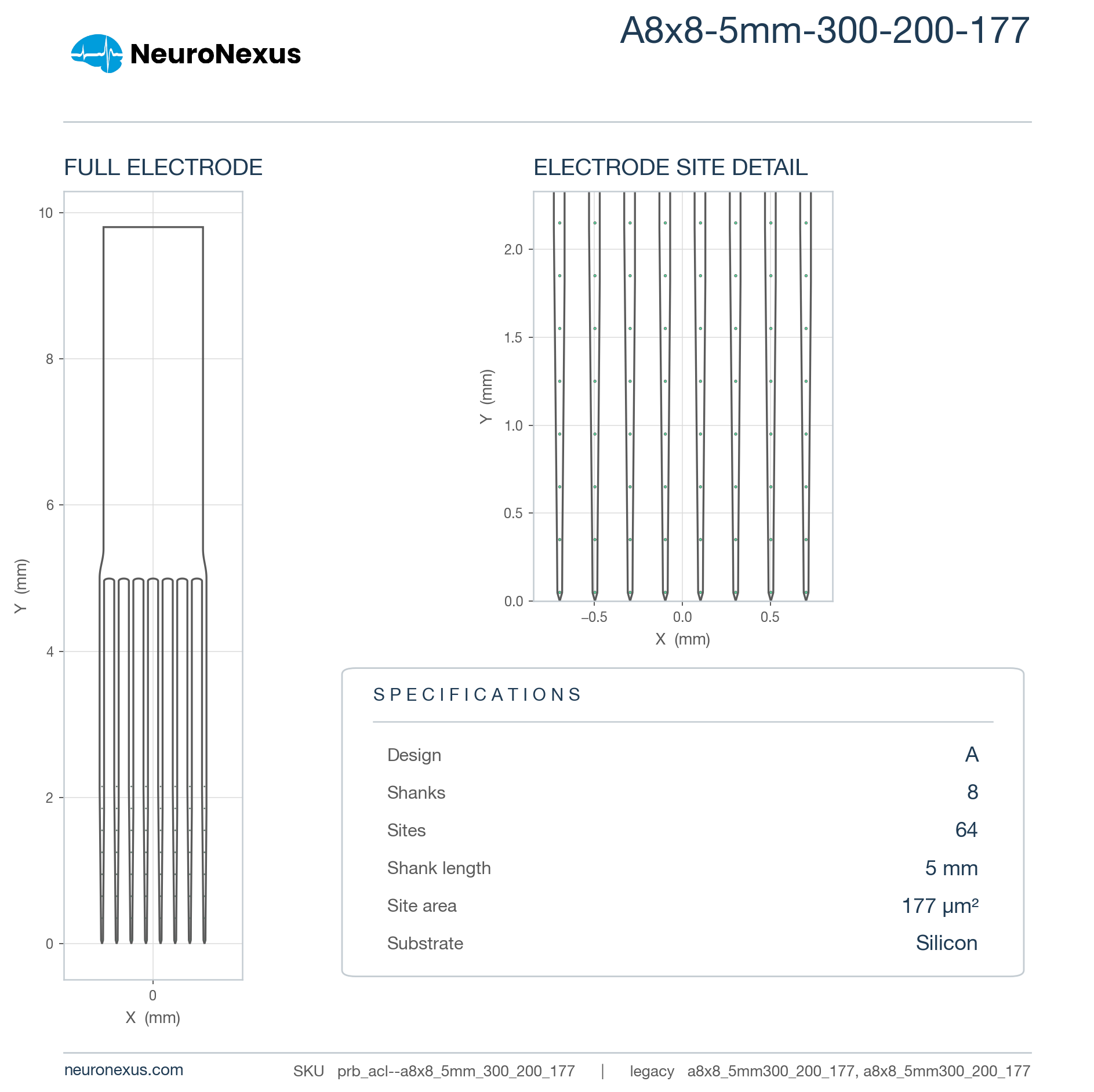

64-site A-Series probe, 8 shanks, 5 mm, 177 µm², 300 µm pitch

Eight mid-length shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 2.11 mm-deep site array (82nd percentile), 21 sites/mm² (7th percentile) and a 2.5 mm³ neural interface (93rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 3 package configurations. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

a8x8_5mm300_200_177 · a8x8_5mm300_200_177

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

12 specs

Channels64
Shanks8
Shank length5 mm
Site area177 µm²
Site pitch300 µm
Vertical span2115 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume2.504 mm³ (higher than 93% of 369 designs)
Site coverage density21.4 sites/mm² (higher than 7% of 369 designs)
Brain coverage density25.6 sites/mm³ (higher than 19% of 369 designs)
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

Narrow the options with the filters or pick a card, then contact us to order that configuration.

4 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
A64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex

Your selection

64-channel 8-shank silicon probe, 5 mm — 15 μm, A64
A64
Substrate Thickness: 15 μm
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a8x8_5mm_300_200_177.15um.a64

Options

4 of 4
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

Loading the compatible products…

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 66% of catalog designs

Maximum site depth 4.96 mm — higher than 34% of catalog designs and 39% of its family
Minimum site depth
2.84 mm
0.067 mm44.74 mm

Top 74% of catalog designs

Minimum site depth 2.84 mm — higher than 26% of catalog designs and 30% of its family
Span, x
1.41 mm
0.01 mm6.03 mm

Top 14% of catalog designs

Span, x 1.41 mm — higher than 86% of catalog designs and 83% of its family
Span, y
2.11 mm
0.01 mm10.55 mm

Top 18% of catalog designs

Span, y 2.11 mm — higher than 82% of catalog designs and 84% of its family
Site pitch, y
0.3 µm
0.01 µm1.5 µm

Top 3% of catalog designs

Site pitch, y 0.3 µm — higher than 97% of catalog designs and 98% of its family
Site outline area
2.99 mm²
0.002 mm²28.74 mm²

Top 6% of catalog designs

Site outline area 2.99 mm² — higher than 94% of catalog designs and 98% of its family
Neural interface volume
2.5 mm³
0.149 mm³17.19 mm³

Top 7% of catalog designs

Neural interface volume 2.5 mm³ — higher than 93% of catalog designs and 97% of its family
Site coverage density
21.39 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 93% of catalog designs

Site coverage density 21.39 sites/mm² — higher than 7% of catalog designs and 5% of its family
Brain coverage density
25.56 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 81% of catalog designs

Brain coverage density 25.56 sites/mm³ — higher than 19% of catalog designs and 14% of its family
Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

3 notes · Geometry · Construction · Packaging and connector options

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_5mm_300_200_177

Cited in 2,342 publications (product line)
