Neural Probes · A-Series

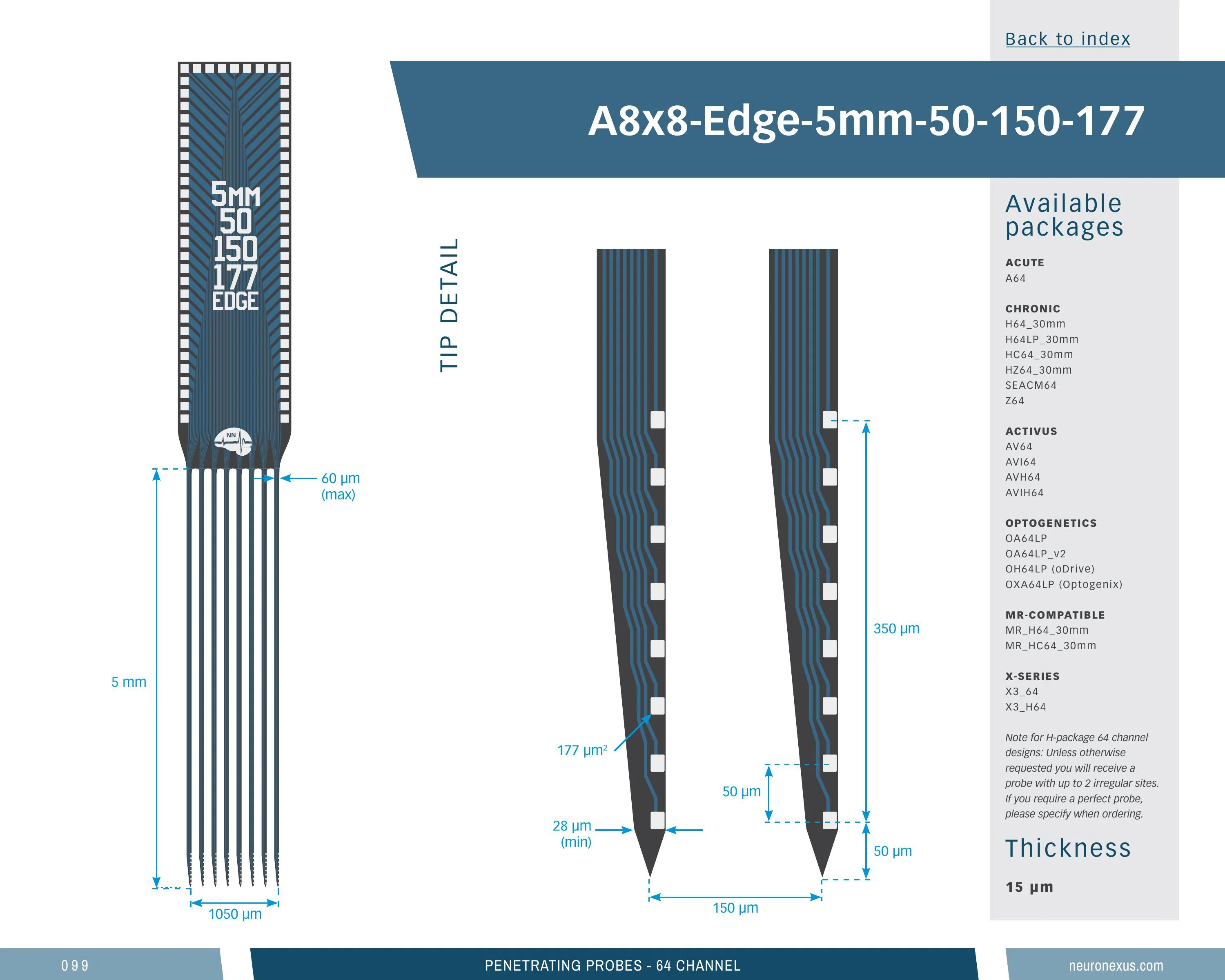

Edge 8-Shank 64-Channel Probe, 5 mm

64Sites
8Shanks
5mmShank Length
50µmSite Pitch
Part no.A8x8-Edge-5mm-50-150-177
Contents

64-site A-Series probe, 8 shanks, 5 mm, 177 µm², 50 µm pitch

Eight mid-length shanks side by side, closely spaced for coverage within one structure, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 64 sites (a common choice — 65 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.36 mm-deep site array (22nd percentile), 165 sites/mm² (44th percentile) and a 0.68 mm³ neural interface (52nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 20 package configurations, 2 of them microdrive-compatible. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

a8x8_edge_5mm_50_150_177

Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

14 specs

Channels64
Shanks8
Shank length5 mm
Shank separation150 µm
Site layoutEdge
Site area177 µm²
Site pitch50 µm
Vertical span365 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.676 mm³ (higher than 52% of 369 designs)
Site coverage density165.1 sites/mm² (higher than 44% of 369 designs)
Brain coverage density94.7 sites/mm³ (higher than 85% of 369 designs)
Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

20 options

Configure

Compatible Package
All
A64 — 64-ch Samtec
AV64 — 64-ch
AVH64 — 64-ch
AVI64 — 64-ch Omnetics
AVIH64 — 64-ch Omnetics
EIB64 — 64-ch Molex
H64 (30 mm cable) — 64-ch Omnetics
H64LP (30 mm cable) — 64-ch Omnetics
HC64 — 64-ch Omnetics
HZ64 (30 mm cable) — 64-ch Hirose
MRH64LP_30MM — 64-ch
MRHC64 — 64-ch Omnetics
OA64LP — 64-ch Samtec
OA64LP_V2 — 64-ch Samtec
OH64LP — 64-ch Omnetics
OXA64LP — 64-ch Samtec
SEACM64 — 64-ch Samtec
X3_64 — 64-ch Molex
X3_H64 (30 mm cable) — 64-ch Molex
Z64 — 64-ch Hirose

Your selection

64-channel 8-shank silicon probe, 5 mm — 15 μm, A64
A64
Compatible Package: A64 — 64-ch Samtec
SKUprb_acl--a8x8_edge_5mm_50_150_177.15um.a64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

20 of 20
Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

Loading the compatible products…

Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
64
41024

Top 8% of catalog designs

Sites 64 — higher than 92% of catalog designs and 93% of its family
Shanks
8
116

Top 3% of catalog designs

Shanks 8 — higher than 97% of catalog designs and 94% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 61% of its family
Shank separation
0.15 mm
0.05 mm1.8 mm

Top 86% of catalog designs

Shank separation 0.15 mm — higher than 14% of catalog designs and 24% of its family
Maximum site depth
4.96 mm
0.972 mm51.29 mm

Top 62% of catalog designs

Maximum site depth 4.96 mm — higher than 38% of catalog designs and 45% of its family
Minimum site depth
4.59 mm
0.067 mm44.74 mm

Top 46% of catalog designs

Minimum site depth 4.59 mm — higher than 54% of catalog designs and 67% of its family
Span, x
1.06 mm
0.01 mm6.03 mm

Top 22% of catalog designs

Span, x 1.06 mm — higher than 78% of catalog designs and 73% of its family
Span, y
0.365 mm
0.01 mm10.55 mm

Top 78% of catalog designs

Span, y 0.365 mm — higher than 22% of catalog designs and 16% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 42% of its family
Site outline area
0.388 mm²
0.002 mm²28.74 mm²

Top 37% of catalog designs

Site outline area 0.388 mm² — higher than 63% of catalog designs and 60% of its family
Neural interface volume
0.676 mm³
0.149 mm³17.19 mm³

Top 48% of catalog designs

Neural interface volume 0.676 mm³ — higher than 52% of catalog designs and 50% of its family
Site coverage density
165.1 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 56% of catalog designs

Site coverage density 165.1 sites/mm² — higher than 44% of catalog designs and 51% of its family
Brain coverage density
94.74 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 15% of catalog designs

Brain coverage density 94.74 sites/mm³ — higher than 85% of catalog designs and 91% of its family
Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

4 notes · Spending a fixed site budget · Geometry · Construction …

Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

22 links · A Brief History of Neural Electrode Technology · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Edge 8-Shank 64-Channel Probe, 5 mmSKU prb_acl--a8x8_edge_5mm_50_150_177

Cited in 2,342 publications (product line)
