ECoG 120-Channel Grid

120Sites
12µmThickness
5mmWidth
785,398µm²Site Area
Part no.E120-2000-cl100-1000
Contents

120-site ECoG grid

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying large sites that average a broad patch at low impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it is in the upper quartile: 120 sites (87th percentile), a 79 mm site-array span (100th percentile), 0.3 sites/mm² (27th percentile) and a 219 mm³ neural interface (93rd percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Polyimide 12 µm thick. 100 mm cable. Research use only.

Also known as

e120_2000_100_1000

ECoG 120-Channel GridSKU grd_cog--e120_2000_cl100_1000

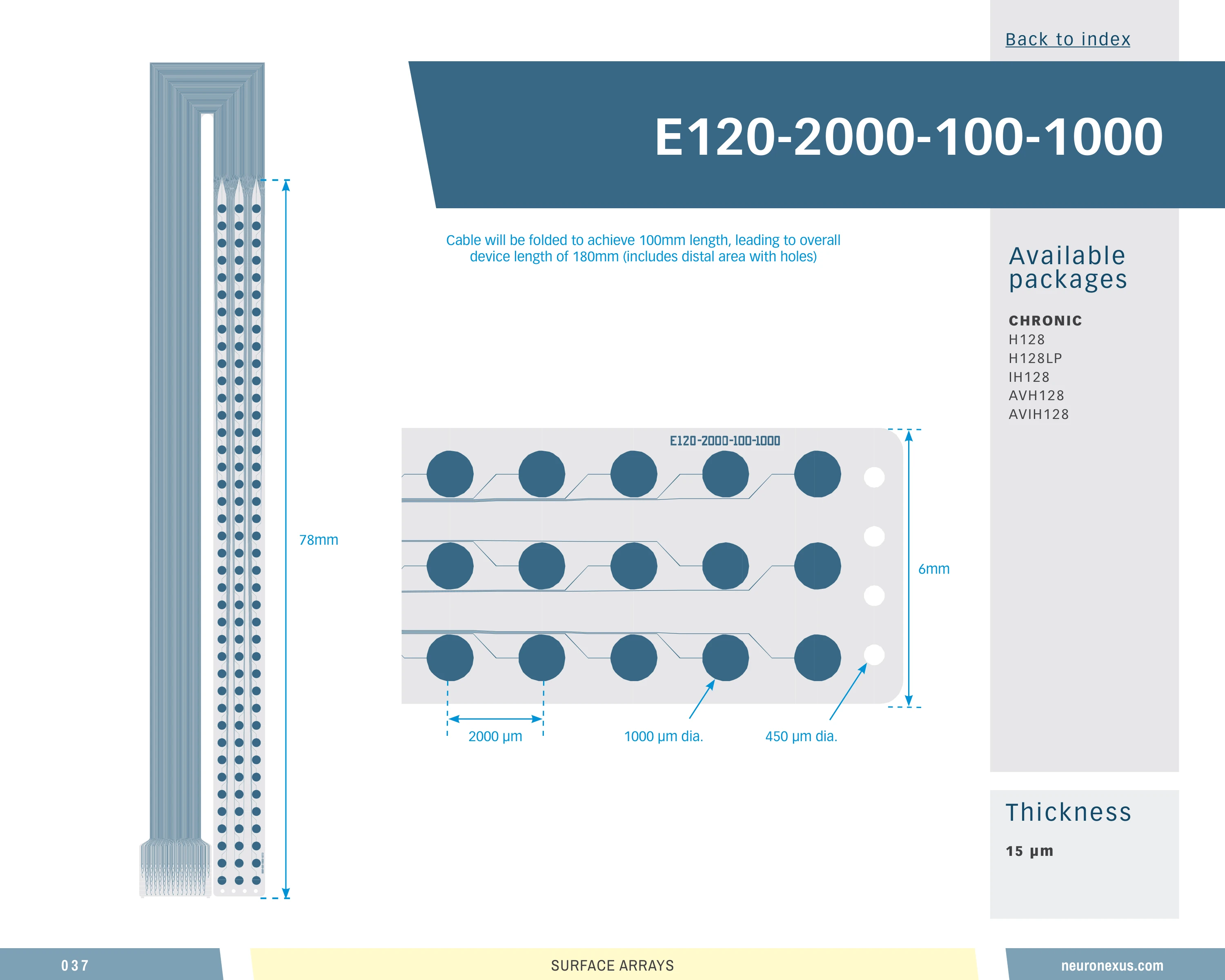

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels120
Site layoutGrid
Site area785,398 µm²
Span79000 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume218.625 mm³ (higher than 93% of 55 designs)
Site coverage density0.3 sites/mm² (higher than 27% of 55 designs)
Brain coverage density0.5 sites/mm³ (higher than 25% of 55 designs)
ECoG 120-Channel GridSKU grd_cog--e120_2000_cl100_1000
