ECoG 16-Channel Grid

16Sites
12µmThickness
6.3mmWidth
70,686µm²Site Area
Part no.E16-1200-1500-cl10-300
Contents

16-site ECoG grid, 300 µm sites

A thin polyimide film that lies on the cortical surface and follows its curvature and movement, carrying mid-sized sites that trade local detail for signal, on a short cable for a compact head end. Among the 55 grid designs in the design space it is mid-range: 16 sites (a common choice — 8 of 55), a 3.3 mm site-array span (38th percentile), 0.77 sites/mm² (44th percentile) and a 13 mm³ neural interface (47th percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 10 mm cable. Research use only.

Also known as

e16_1200_1500_10_300

ECoG 16-Channel GridSKU grd_cog--e16_1200_1500_cl10_300

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels16
Site layoutGrid
Site area70,686 µm²
Span3300 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm

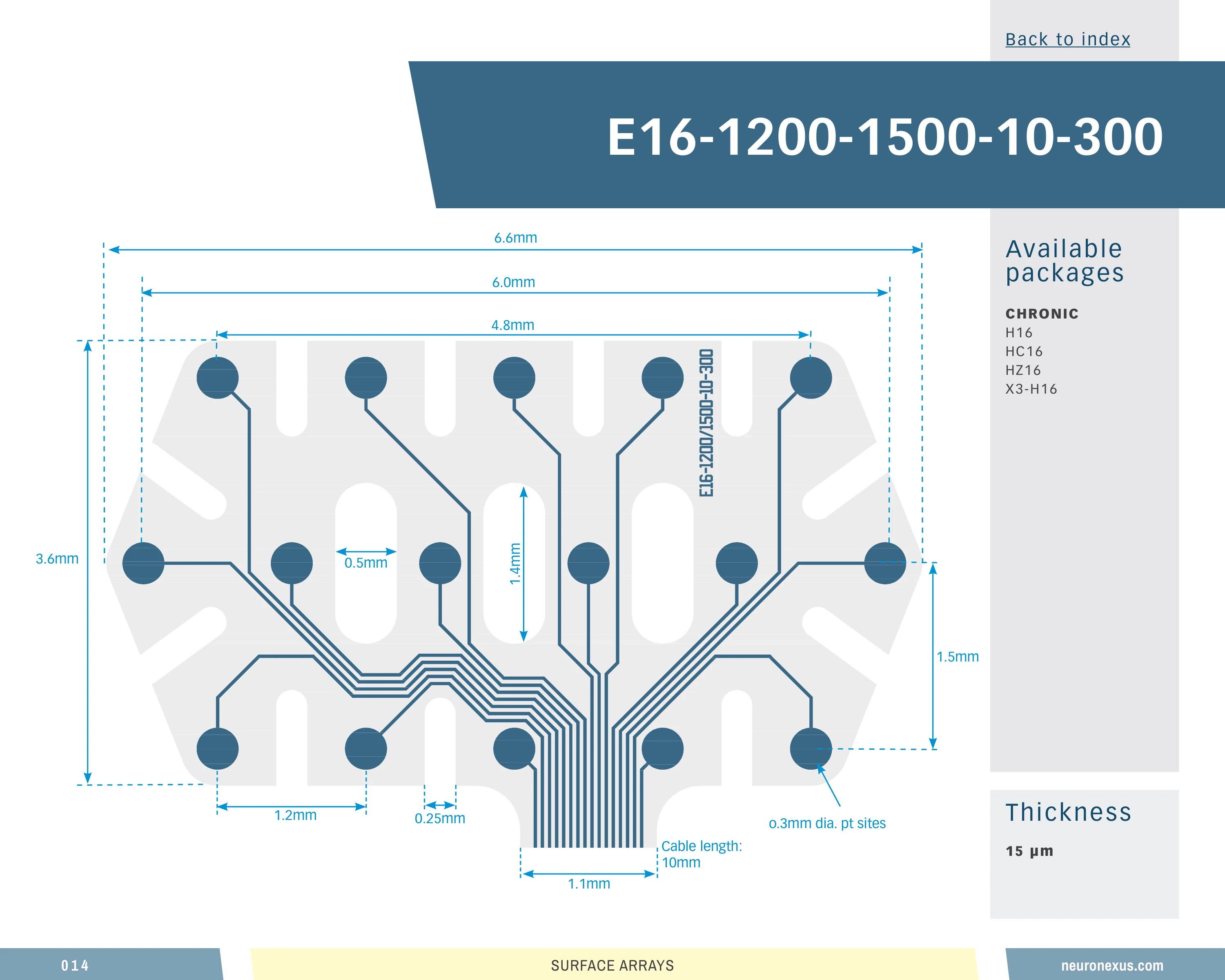

Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume12.920 mm³ (higher than 47% of 55 designs)
Site coverage density0.8 sites/mm² (higher than 44% of 55 designs)
Brain coverage density1.2 sites/mm³ (higher than 45% of 55 designs)
ECoG 16-Channel GridSKU grd_cog--e16_1200_1500_cl10_300
